High Speed Flute Laminator

Model：

HF-H1450

Maximum size(mm)：

1450*1450

Minimum size(mm)：

400*450

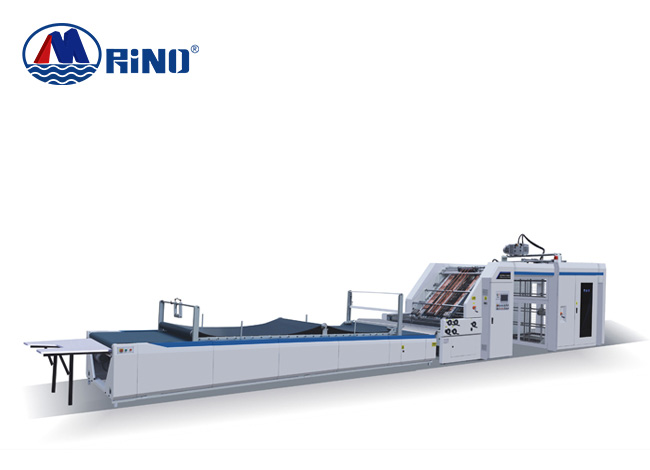

1450mm Automatic High Speed Flute Laminating Machine

Basic Configuration and Technical Specification

1. The most high-end electrical control system, computerized high-speed lamination, up to 12,000 sheets per hour;

2. The upper paper feeder adopts high-speed paper feeder to ensure accurate paper feeding under the condition of high-speed paper feeding;

3. Bottom paper feeding: The bottom paper conveying structure of the suction belt is driven by a servo motor to make the conveying distance of the bottom paper precise and smooth.

4. High-precision coating and conveying with automatic page control of paper and gluing wheel side gluing mechanism, high-speed operation without glue overflow, and adjustable glue return;

5. Use multiple sets of photoelectric sensor and the bottom line to advance the relative position, so that the servo motors on both sides of the face paper are driven independently to compensate for the upper and lower paper alignment, which is accurate and smooth;

6. The man-machine interface is applied, which is convenient for operation and can automatically detect the operation status, abnormal display and work record, stable performance, CE standard.

7. Changing paper specifications can store orders and start automatic adjustment with one button, zero error, and fully intelligent automation.

8. The anilox glue roller is equipped with a protective device for anti-sticking glue.

9. Intelligent glue supply and recovery system, intelligent cleaning water circulation system.

10. Intelligent detection of paper position, intelligent display and alarm system.

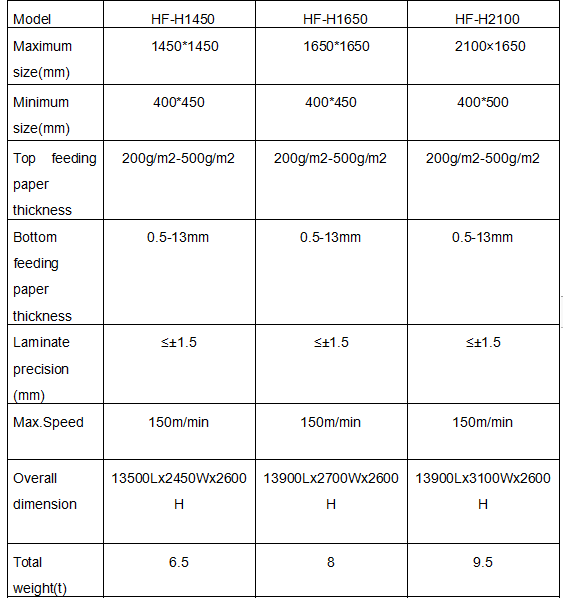

Main Parameter

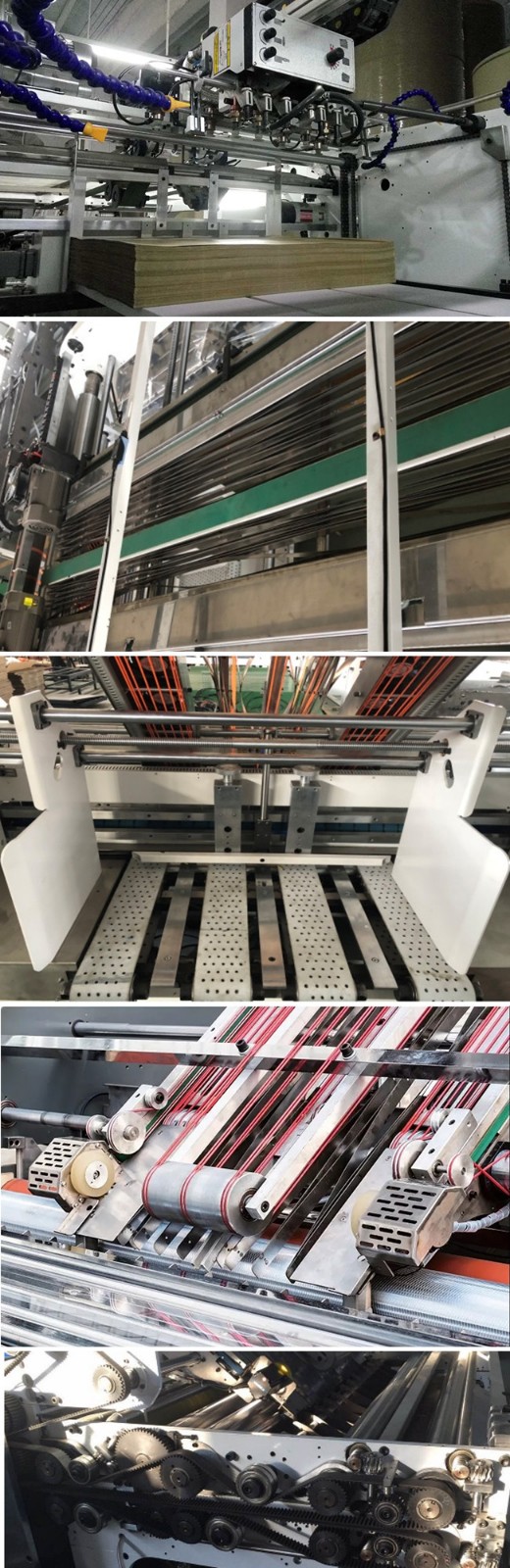

Machine details
