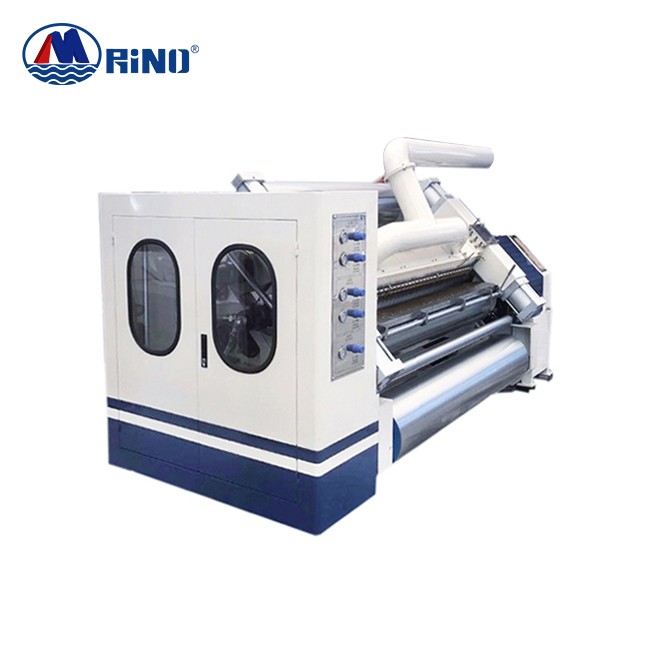

Cassette Single Facer

Model：

SF-405E

working effective width：

1800mm

Main corrugated roller diameter：

￠405mm

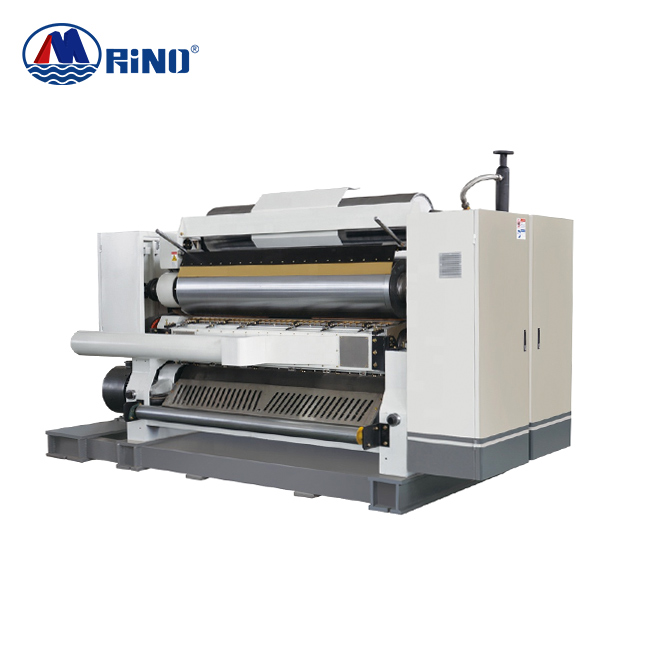

SF-405E Multi-cassette type single facer

※structural feature：

★design speed：250m/min。

★effective width：1800mm。

★main corrugating roller：￠405mm（According flute differ），pressure roller￠495mm，preheat roller￠420mm。

★using negative pressure design, lower heat consumption, helps the core paper to press evenly  and close to the surface of corrugated roller,  make the corrugate molding better, because the pressure evenly, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.

★quickly change rollers in 15 minutes, while change corrugated roller with the electric trolley loading,put into the machine，and air pressure system will lock it,fixed to the machine base，only need a few buttons can complete the replacement quickly and easily.

★corrugated roller adopt50CRMO high quality alloy steel, dealing with heat,after grinding tungsten carbide surface treatment.

★corrugated roller, pressure roller adopt airbag control system having high stability, having the barometric pressure control buffering effect at the same time.

★Glue volume control with electric adjustment，rubber septum electric device，the glue system can operate independently when the motor stops,prevent glue exhausted。

★the moveable type glue unit is convenient to clean and maintain。

★easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.

★built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture.

★main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly。
