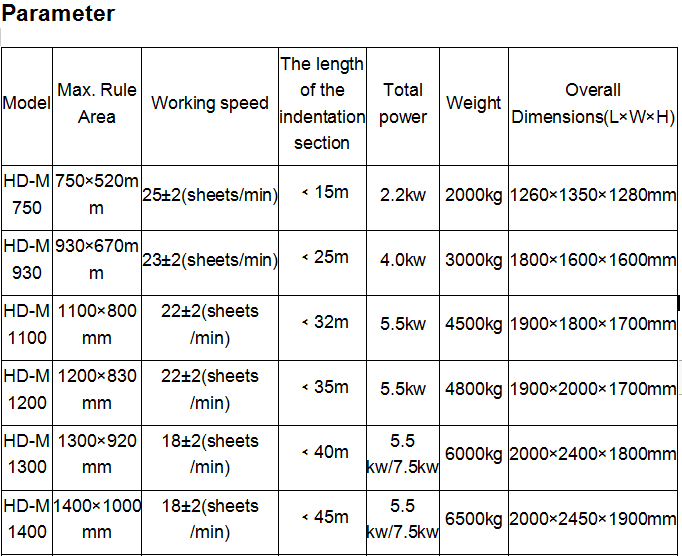

- Model：
- HD-M1100
- Max. Rule Area：
- 1100×800mm
- Working speed：
- 22±2(sheets /min)

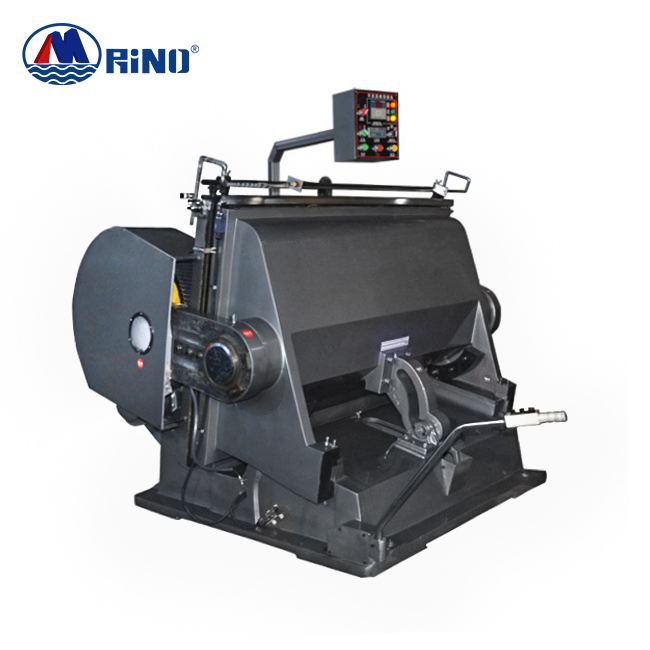

Manual Die Cutting Machine
Machine introduction
Manual die cutting machine, also called as manual punching machine, is a kind of special equipment for die cutting and creasing a wide range of material, such as paper, cardboard, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries. HD-M series machine has been well accepted by the customers from domestic and oversea market due to its outstanding performance, reliable in quality, easy for operating and low cost in price.
Features
l The casting material is HT250 gray cast iron and with annealing treatment so as to achieve the casting not easy to deformation, breakage.
l The principal axis mainly adopts of 4Cr13MoV and with thermal refining treatment to improve the main-shaft’s intensity and rigidity, hardness and adhesive the effort of uneasy deformation.
l The main parts of gear is made of 4Cr13Mov and with thermal refining treatment.
l Single pressing, continuous pressing, adjustable delay pressing
l The shaft sleeve is made of the cooper to ensure the good wear resistance
l The single plate electromagnetic clutch is nimble and reliable.
l It has the function of continuous cutting and opening dwell. Dwell is adjustable.
l The key parts of bearing are mainly made of HRB bearing.
l The lubrication of concentrated refuel, automatic refuel (optional) can better the oil flow in good condition and its maintenance.
l The machine electrical is made from China CHNT electric.
l Hand on triangle limit switch, emergency switch, and hand push rod limit switch,Photoelectric sensor stop switch four insurance devices. Ensure safety.
l Plate and frame can be adjusted.
l Stainless steel plate thickness 3mm .
