Semi-auto flute Laminator

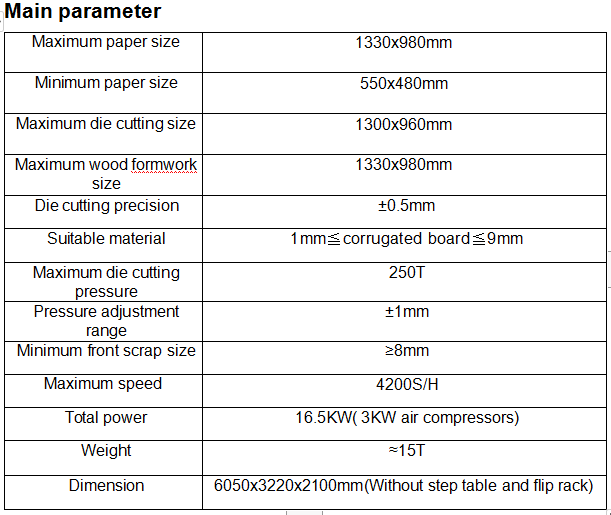

- Model：
- HD-S1300
- Max cardboard feeding size：
- 1330×980mm
- Min feeding cardboard size：
- 550×480mm

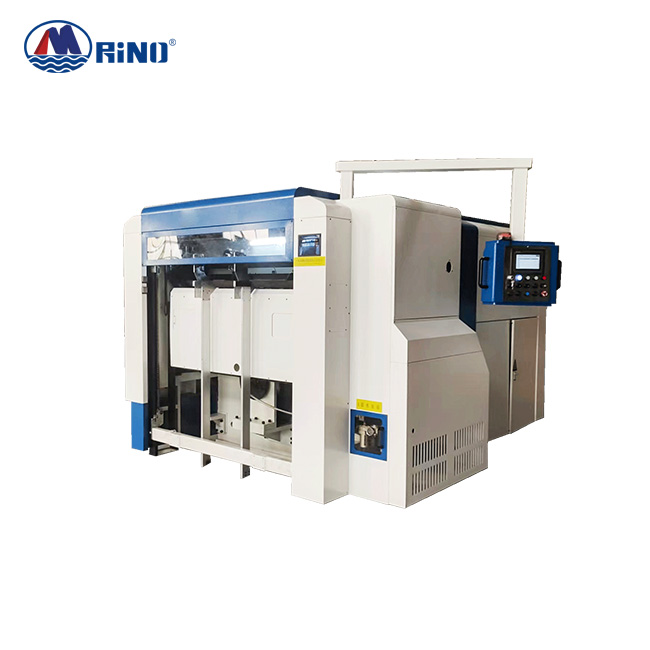

1300 Semi- automatic die cutting machine
Introduction

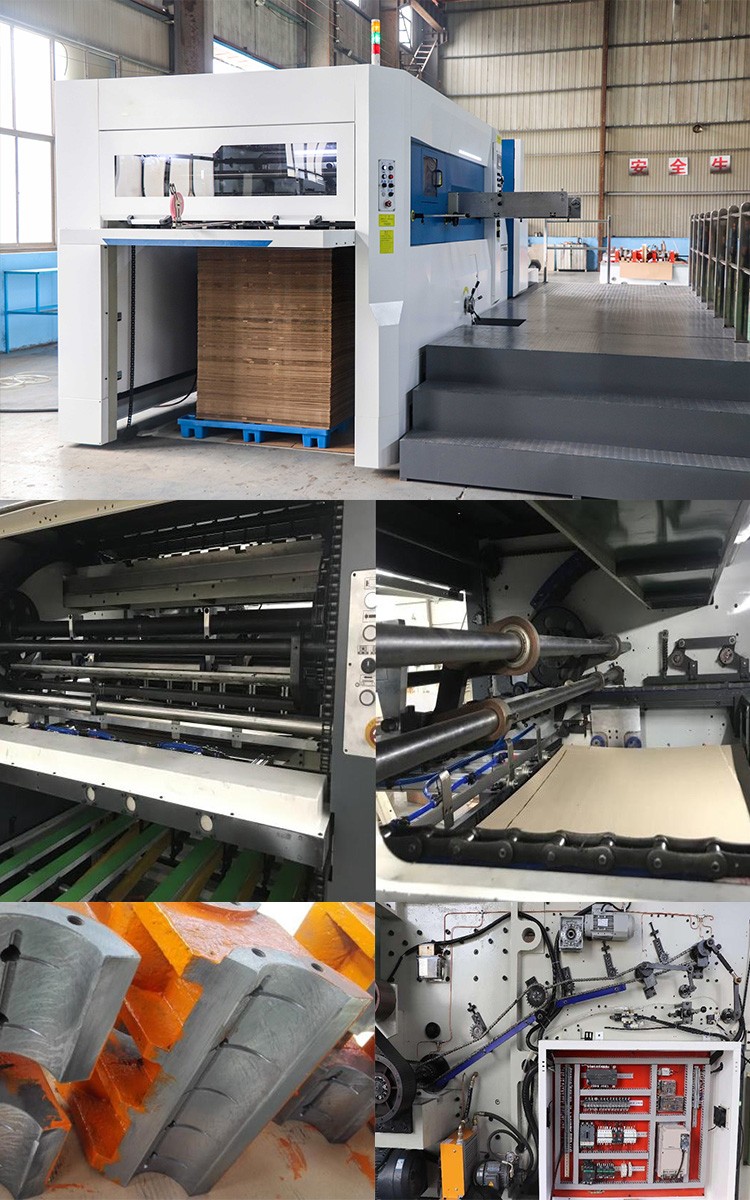

Die-cutting and creasing machine is a special equipment for die-cutting of high-end color boxes and color boxes, developed by our company combining the superior performance of similar products at home and abroad. This machine uses high-strength paper grippers. The advanced opening gripper mechanism can adapt to various types of cardboard and corrugated paper; the front and rear positioning and side positioning mechanisms ensure the accuracy of die-cutting paper. Equipped with high-precision intermittent mechanism; rapid-action pneumatic clutch and pneumatic lock plate. Using programmable controller and man-machine interface, digital display of the machine's working speed, number of processed sheets, and total running time; the machine's fault display makes troubleshooting operations very convenient. The inverter is used to control the main motor, stepless speed regulation, and stable operation. The machine is equipped with sensors and safety devices in many places to ensure the normal operation of the machine and personal safety. Manual turning is convenient and labor-saving.
