Carton Box Die Cutting Machine
Semi-auto Die Cutting Machine
- Model：
- HD-L1500
- Max cardboard feeding size：
- 1520mm*1120mm
- Minimum paper size：
- 600mm*500mm

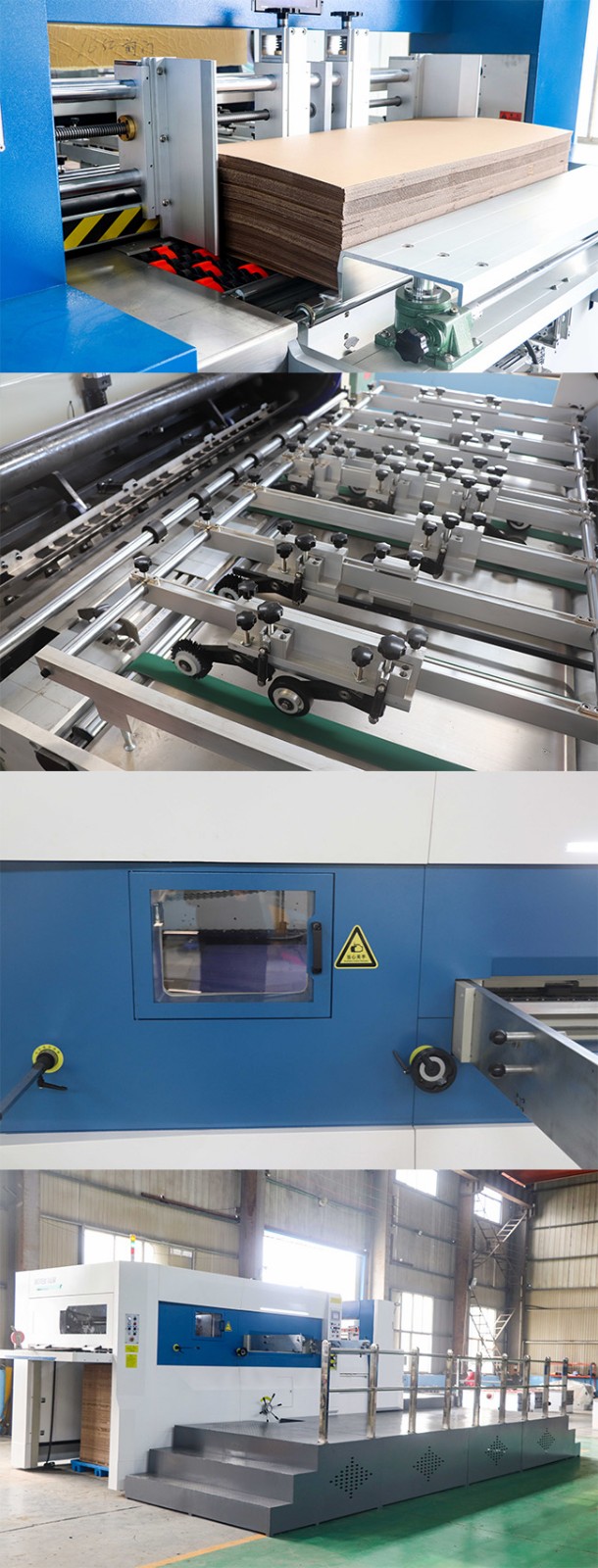

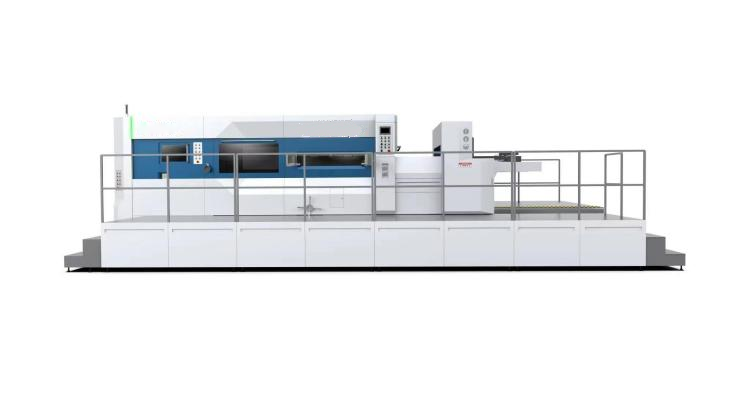

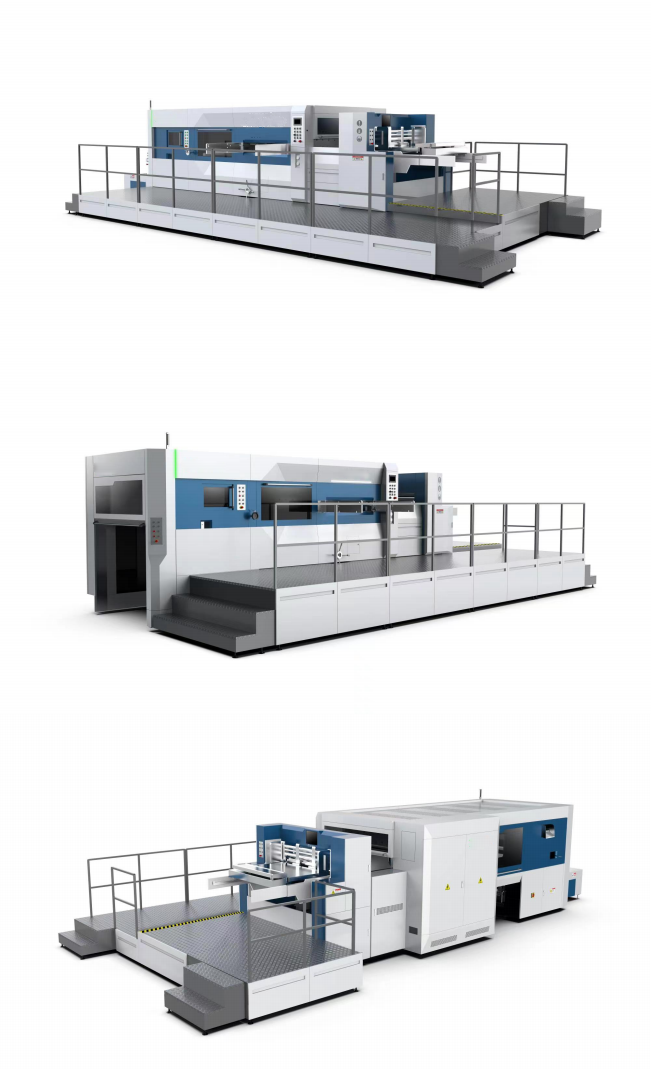

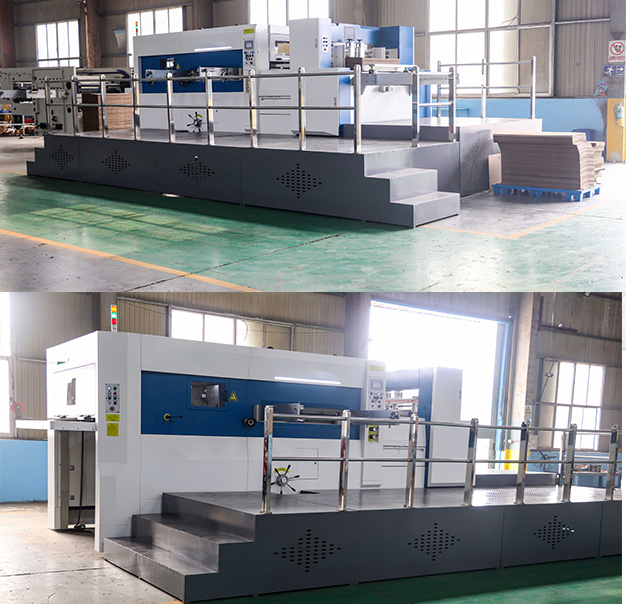

Full automatic lead edge feeding die cutting machine with stripping
Product introduction
1.Equipped with high-precision gearbox, fast speed, long life, safe and reliable
2.The leading edge paper feeding adopts a high-precision suction box to realize smooth paper feeding under high-speed conditions.
3.Using a newly designed tooth row system and a reinforced chain can effectively improve the stability of paper operation, reduce maintenance, and extend the service life of the machine.
4.Pneumatic locking system for the die-cutting plate frame, easy to operate, the die-cutting plate frame adopts an integrated structure, which is accurate and durable.
5.Die-cutting pressure is even, less patching, operation aspect, visual design.
6.The automatic paper delivery device is equipped with a downward and flat blowing system, which can deliver paper perfectly under high-speed operation of the machine.
7.The electronic control system adopts PLC control and is equipped with various safety protection devices. When a fault occurs, it will alarm by sound and light and automatically stop, which is truly safe for humans and machines.
8.Automatic waste stripping, higher production efficiency, waste stripping template adopts central positioning system, automatic clamping, quick and convenient plate alignment; stripping frame adopts electric control lifting device; full stripping system can automatically remove waste around and in the middle to ensure Waste removal is clean, neat, and high in production efficiency.
9.Equipped with automatic paper delivery device and automatic counting device.

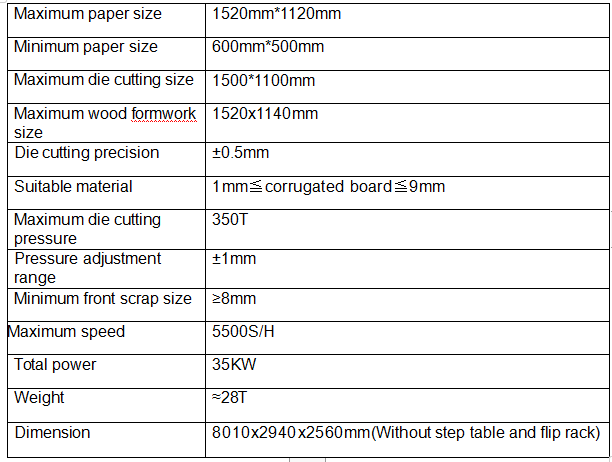

Mian parameter
