The1year
- Model NO.：
- AGV
- Certification：
- CE, ISO13485
| Model | SU-01 | SU-02 | SU-03 | |
| Basic function | Disinfection mode | UVC lamp | ||
| Navigation accuracy | +/- 5cm | +/- 5cm | +/- 5cm | |
| Navigation type | SLAM natural navigation | |||
| Performance parameter | UV lamp power (w) | =6*36 | =6*75 | =6*30 |
| UVC OUTPUT (w)/lamp | 12 | 23.6 | 12 | |
| Outline size | 500x550x1390mm | 586x536x1200mm | 540*360*1536 | |
| Disinfection speed | 50-100 m²/ 20min | 50-100 m²/20 min | 50-100 m²/20 min | |
| Walking speed | 2-40m / min, turn 1-25m / min | |||
| Net Weight | 75 kg | 60 kg | 43 kg | |
| Disinfection efficiency | 99.90% | |||
| Safety system | Body induction | Detect people at 5m, stop disinfection | no detect | no detect |
| Mechanical collision | Lidar + ultrasonic + Vision | Lidar + ultrasonic + Dash-proof | Vision | |
| collision avoidance | Voluntarily avoid and change the way | Voluntarily stop and wait | Voluntarily avoid and change the way | |
| Emergency braking | Emergency stop switch | |||
| Power supply system | Battery type | Lithium iron phosphate battery | ||
| Battery voltage / capacity | 24V/30AH | 24V/25AH | 37v 20.8AH | |
| Continually working | 2~3 Hr | 1.5 hr | 2~3 | |
| charging hour | 3 Hr | 3 hr | 5 hr | |
| Charging mode | Manual or Automatic charging | |||
| Communication system | Networking mode | WIFI | ||
| Call system | Call mode | Remote control panel PC Windows (APP in develop) | PC Window | APP |
We are commited to creat safe and stable quality product to all client and reach to Win-Win long term cooperationProduct Description

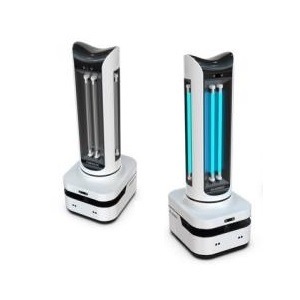

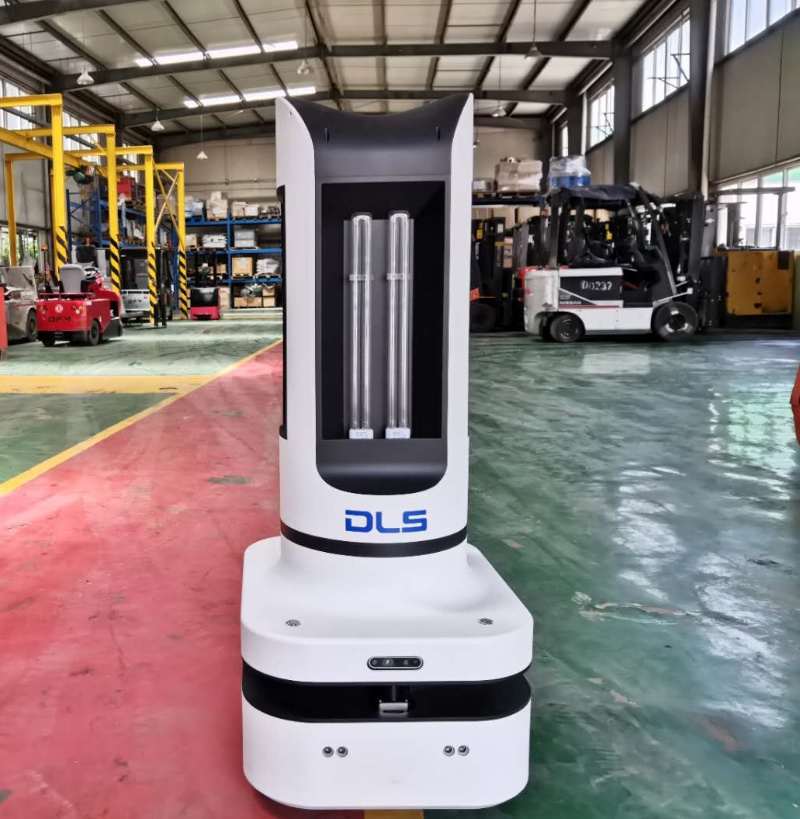

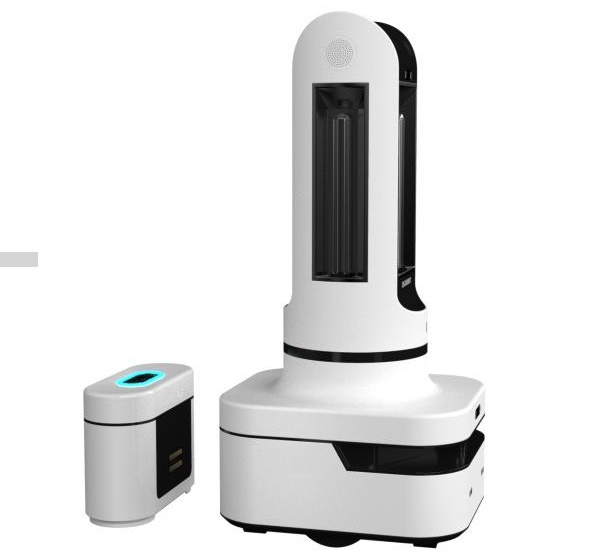

Detailed Photos

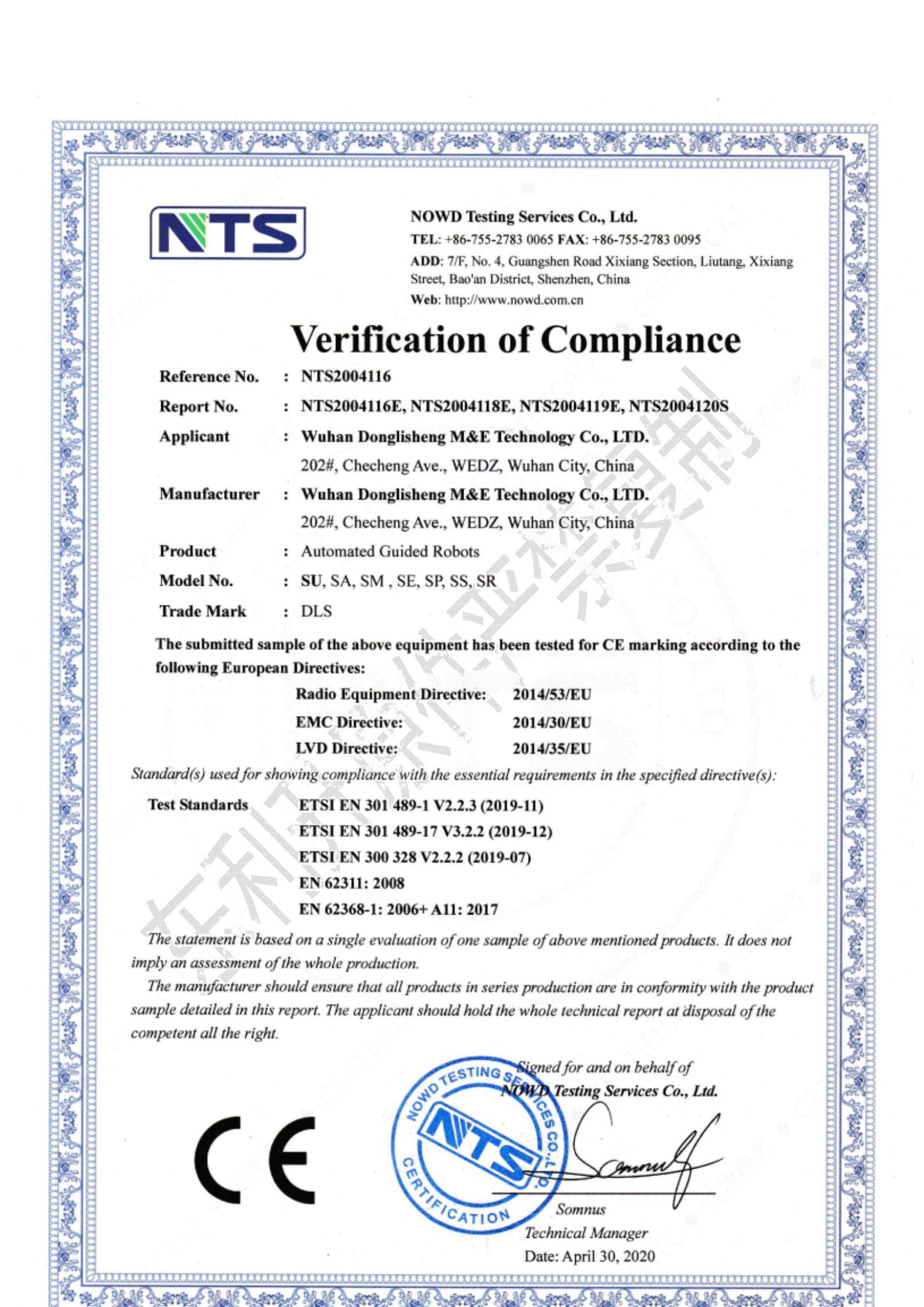

Certifications
Packaging & Shipping
Welcome more clients to be our agent to develop and service local market
We will provide more supports to our agent
We are glad to be OEM/ODM of our client to extend the business
