The1year
- Model NO.：
- WSUHT-1
- Certification：
- CE, ISO9001
Machine Specifications: Ultra heat treated for liquid materials, such as milk, beverageCompared to the sterilizer of other model, it has the following characteristics:1. Higher thermal efficiency, 90% heat recovery2.Corrugated heat exchange tube is
used, whichcanproducesflowdisturbanceinthetubeandpreventsfoulingandpluggingandincreasestheheatexchangecoefficient.
3. Fully automatic control for whole system: control and record the CIP cleaning, sterilizing, etc
4. Precise Sterilizing temperature control
5. Adopts advanced polish technology, and with self CIP to clean the whole system.
6. Safety system: steam, hot water, material all use pressure protection and alarm system
7. High reliability system: main parts from Famous Brand Supplier
Machinescanbecustomizedaccordingtocustomers'necessary

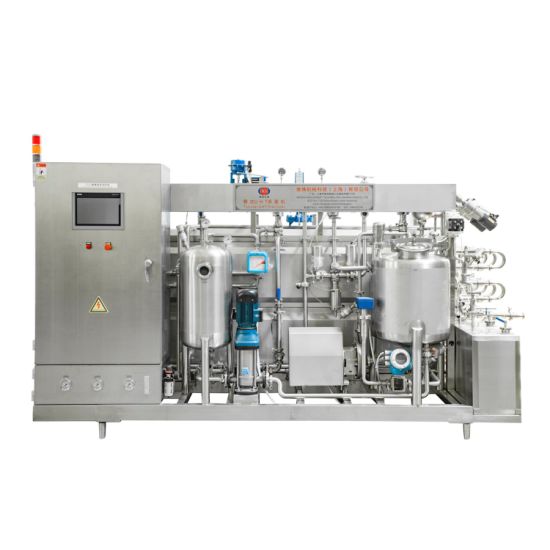

Weishu UHT tubular Sterilizer machine are used for all kinds of dairy/beverage sterilization.
Aseptic type can be used for aseptic packing, such as aseptic brick carton packing, composite film packing, aseptic PE bottle packing, etc.
| Model | Capacity(L/H) | Total power (kw) | Size (mm) | Weight (KG) |
| WS-UHT-1 | 1000 | 5.5 | φ4000x1600x2100 | 1500 |
| WS-UHT-2 | 2000 | 5.5 | φ4000x1600x2100 | 1800 |
| WS-UHT-3 | 3000 | 7.5 | φ4000x1800x2200 | 2000 |
| WS-UHT-4 | 4000 | 8.5 | φ4000x1800x2200 | 2300 |
| WS-UHT-5 | 5000 | 10 | φ4200x1800x2200 | 2500 |
| WS-UHT-6 | 6000 | 10 | φ4200x2000x2200 | 2800 |
| WS-UHT-7 | 7000 | 12 | φ4200x2000x2200 | 3000 |
| WS-UHT-8 | 8000 | 14 | φ4500x2000x2200 | 3500 |
| WS-UHT-10 | 10000 | 20 | φ4500x2200x2200 | 4000 |
| WS-UHT-15 | 15000 | 28 | φ5000x2400x2500 | 6500 |
| WS-UHT-20 | 20000 | 35 | φ4500x3000x2500 | 8500 |
