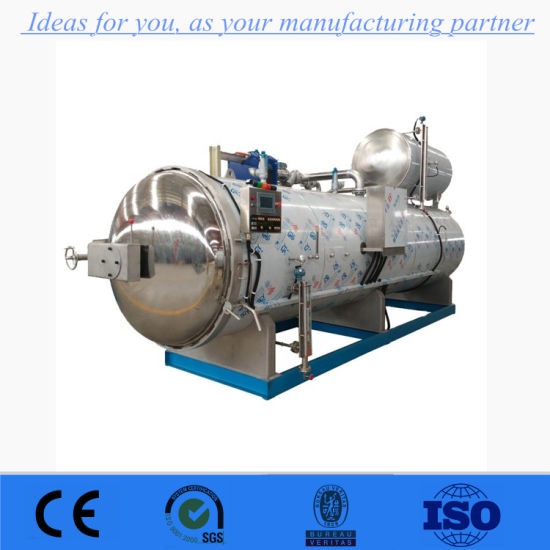

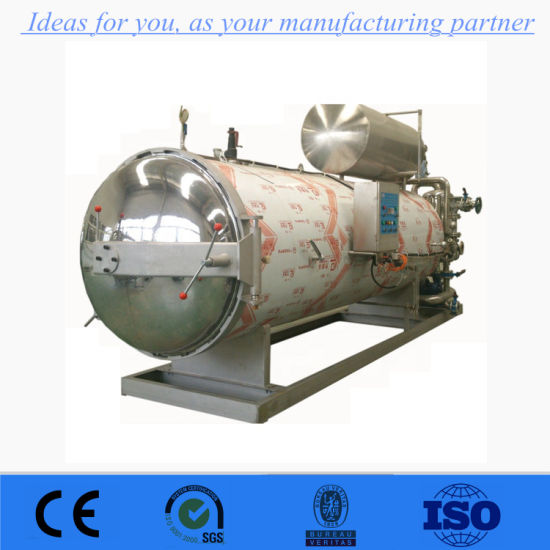

Fruit Juice Canned Food Water Spray Processing Retort Machine

Model NO.：

HK

Certification：

CE, ISO13485

Fruit Juice Canned Food Water Spray Processing Retort Machine
Spray Processing Retort Machine in Food Processing.Retorts sterilize food after it is sealed in a container by steam or other heating methods. Typically, the sterilization temperatures vary from 230°F/110°C to 275°F/135°C. Retort sterilization provides safe, effective shelf stability and can be done with fairly simple equipment.

Spray Processing Retort MachineProduct ApplicationFor high temperature sterilization of fruits, vegetables, meat, fish, convenience foods, etc.

Packaging Container: PP bottles, HDPE bottles
Glass Container: glass jar, glass can
metal Containers: tin cans
Aluminum cans plastic containers
Soft bag packaging: aluminum foil bag, transparent bag, vacuum bag, cooking bag and so on

Scientific experiments show that the best sterilization temperature of the tide type brine food is 121 DEG, the best sterilization time is 12min, which can not only ensure the good sterilization effect, but also keep the flavor of the brine.

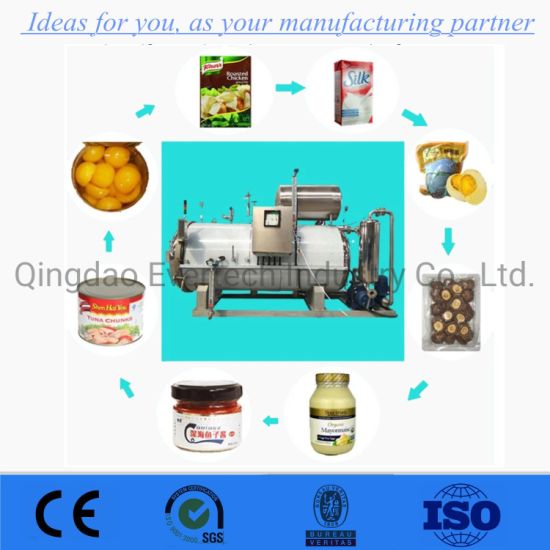

Mainly applicable to canned food (such as meat, fish, eggs, vegetables etc.), protein beverage (milk, soy milk, coconut milk, peanut milk, walnut milk, almond milk etc.), hard cans (tin cans, glass bottles, cans etc.) and various kinds of soft packaged food.

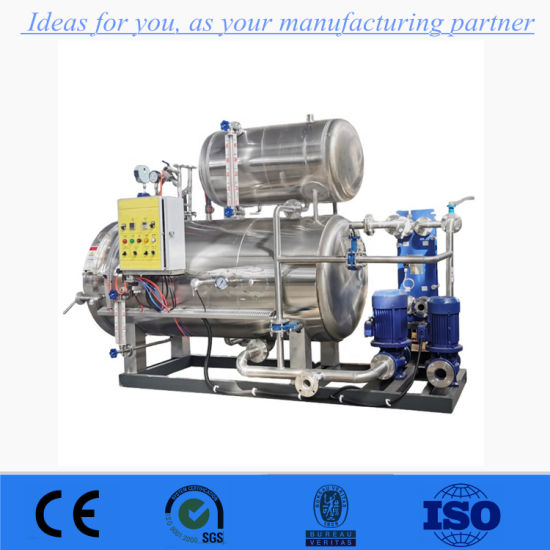

Spray Processing Retort Machine is injected with a small amount of process water to reach a predetermined position (cannot be
immersed in the product). The high-efficiency circulation pump-filter-high efficiency heat exchanger injects water into the spray
pipe, and then the hot water is sprayed out through the spray nozzle. It is transformed into the surface of the food, and the heat
distribution is uniform in the pot. There is no sterilization dead angle. The water is heated and cooled by the heat exchanger,
the temperature is raised and cooled rapidly, the product is sterilized by high energy efficiency, comprehensive and stable. Water
Spray Processing Retort Machine model is suitable for soft packaged foods sterilization.

Model NO.	Diameter	Length	Capacity	Thickness	Design Temp	Design Pres
HK.09-1.8 B.4	900mm	1800mm	1.14m³	4mm	121C	0.35MPa
HK10-2. B.4	1000mm	2000mm	1.57m³	4mm	121C	0.35MPa
HK.12-2.2 B.4	1200mm	2200mm	2.48m³	5mm	121C	0.35MPa
HK.14-3 B.4	1400mm	3000mm	4.61m³	5mm	121C	0.35MPa

Spray Processing Retort MachineMain Features

1. Uniform temperature distribution:In the process of heating and sterilization, the water is continuously sprayed from nozzles adopted high speed spraying, so that the temperature in the pot is kept stable and the sterilization effect is improved.
2. Direct heating and indirect cooling, and prevent the second pollution. Sterilizing and cooling processes use the same water. Circulating water is directly heated by steam diffusion tube in the heating process. Under 0.5MPapressure, it only takes 6-12min to rise the temperature from 20 DEG to 121 DEG. Continuous cooling by heating exchanger is isolated from the products, preventing the second pollution in the cooling effectively.
3. Full-automatic control system:
a. Siemens Touch Screen
b. No-paper recorder
c. imported Automatic Valves
d. Many sterilization techniques in memory for your choice. At most could save 250sterilization formula.
4. Pressure control system independently, suitable for gas packaging sterilization: Pressure control
error is within 0.005Mpa. Pressure control system can correct and balance the pressure inside of the pot and packing automatically, not damaging the packing or the contents.
Water spray autoclave/retort/sterilization pot
Model No. Outside Measurement(mm) Inner Diameter(mm) Vessel Length(mm) Capacity(m³) Thickness of Autoclave(m) Max Working PRE.(Mpa) Max Working TEP.(ºC)
5. Heating and cooling in stages can reduce the temperature difference between the surface and the center of the food in protection of fragile food and glass bottles.

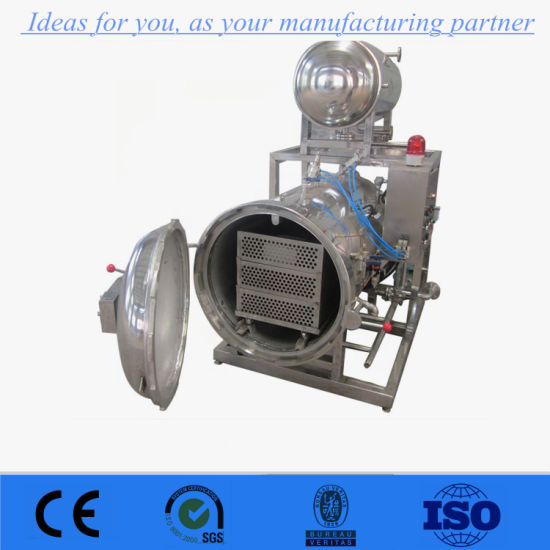

Spray Processing Retort Machine Detail Images

Spray Processing Retort Machine Parts

Name: Clinder
Brand: EVERTECH
Original: China
Retort cylinder is main part of the whole retort machine. We do it by using SUS304 material to gurantee the retort quality and food quality after sterilization.

Spray Processing Retort MachineMain Features

Name: Autoclave dish
Brand: EVERTECH
Original: China
Retort dish is main part of retort door, it also made of SUS304, this retort dish is specially designed for food sterilization and for retort good sealing with good performance.

Spray Processing Retort Machine Parts

Name: Flange
Brand: EVERTECH
Original: China
SUS304 flange connects the retort dish to retort cylinder to complete the whole retort machine. We use domestic famous brand.

Spray Processing Retort MachineMain Features

Name: Autoclave Saddle
Brand: EVERTECH
Original: China
Retort saddle is used for supporting the whole retort equipment. We design them with SUS304 material to guarantee its quality.





Spray Processing Retort Machine Customers

Spray Processing Retort MachineVisiting customers
If you want to know more about our products, welcome to our company for detailed information. Here we have professional engineers and technicians to instruct you.

Spray Processing Retort MachineDelivery
We will deliver your goods by LCL/20'FCL/40'FCL depending on your order.
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.





Spray Processing Retort MachineCompany Introduction

Qingdao Evertech Industry Co., Ltd. is aprofessional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses forASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel productssuch as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.


Spray Processing Retort Machine FAQ
1.What are the payment terms?
TT,L/C and trade assurance are acceptable,TT will be more appreciated,30% deposit before production,70% balance before shipment.
2.What is the delivery time?
At least 1 month after the deposit recipit,depend on how many machines included in the line.
3.How to pack the machine?
Standard packaging
4.How to install after the machines arriving destination?
Our engineer will go to customers site if you need,but need to pay installation fee accord with the contract.
5.What's the capacity you can do?
We always produce depend on customers' requirement.
Welcome to send me email any time.
