- Model NO.：
- SLG65
- Certification：
- CE ISO9001
1.Description of Good Quality Good Price Fish FeedPetFoodTurtleFoodProcessing Line :
pet foodgenerally consists of meat, meat by products, cereal, grain, vitamins, and minerals. General grains, such as soybean meal, corn meal, cracked wheat, and barely, are often used to improve the consistency of the products. The meat is mixed with the other ingredients. Dryfish food has a shelf life of about 10 to 12 months. Some manufacturers are adding some kinds of vitamins E and C as natural preservatives.
2.Products:PetFood,LikeDog,Cat,Fish,BirdFoodetc.withDifferentShapesandTastesbyChangingtheDiesandFormulations.
3.Automatic DogFoodMakingMachine Capacity:120-150KG/H,200-250KG/H,400-500KG/H,800-1000KG/H.
4.Voltage: Threephases:380V/50HZ,Singlephase:220V/50HZ,wecanmakeitaccordingto
customers'localvoltageaccordingtodifferentcountries.
6.Technical Parameter:| Model | SLG65 | SLG70 | SLG75 | SLG85 | SLG95 |
| Installed power | 76kw | 95kw | 130 | 178kw | 280kw |
| Production Capacity | 120-150kg/h | 200-260kg/h | 300-400KG/H | 400-600kg/h | 1000-1500kg/h |
| Size MM | 1600*1800*2000 | 1800*2000*2200 | 2200*2000*2200 | 2500*2600*3000 | 3000*3200*3500 |
7.Automatic DogFoodMakingMachine Product Details:
Mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→coolingmachine→packing machine
| 1 | Installed Power: 4kw Consumption:3kw/h Output: 30kg/batch-40kg/batch Mixing Time:(2minutes-3minutes)/batch Size: 1030*920*1350mm Function: raw material with water, liquid chemical additive mix together fully. Feature: 1.This part that contacts mixer to material adopts the stainless steel material. 2.The discharge hole adopts the new handle-opened design, good seal 3.Motor is Chinese famous brand |
| 2 | Screw feeder Application:convey the Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel |
| 3 | Twin-Screw extruder Installed Power: 53kw Consumption:37kw/h Output: 200kg/h-250kg/h Size: 2600*870*1950mm Features: 1.The main extruder adopts frequency speed controlling with high automation and stableper-formation. 2.The screws are made of the alloy steel and special craft, durable usage, high pressure,the screw life is longer. Adopting the building block structure and combining willinglyaccording to the different demand. 3.The forced lubrication system, can guarantee the equipment transmission life longer. 4.Auto-temperature control system makes the temperature control more direct viewingand the parameter more precise. 5.Self-cleaning , when stopping, it can be cleaned without disassembling. |
Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel | |
| 4 | Dryer Installed Power45kw Consumption: 30kw/h Output:200kg/h-300kg/h Size: 5200*1300*2200mm Function: Baking and drying the food. All kinds of the inflating food, pet food, TVP food, peanut, nut, chew nut can be dried. |
| 5 | Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel |
| 6 | Installed Power: 1kw Output:According to Extruder Size:5000*700*1100mm Feature: 1.This material that contacts food adopts the stainless steel material. 2.The air from the fan cooling the rice going through the conveyor belt. 3.Motor is Chinese famous brand |
Packaging & Shipping
Inside: Plastic bags for the whole production line. Outside: Wooden case for the equipment.(According to our customer's demands.)
Firstly the machine packed with winding film or carton.Secondly fixed on bracket with wire.
Finally packed with wooden case.

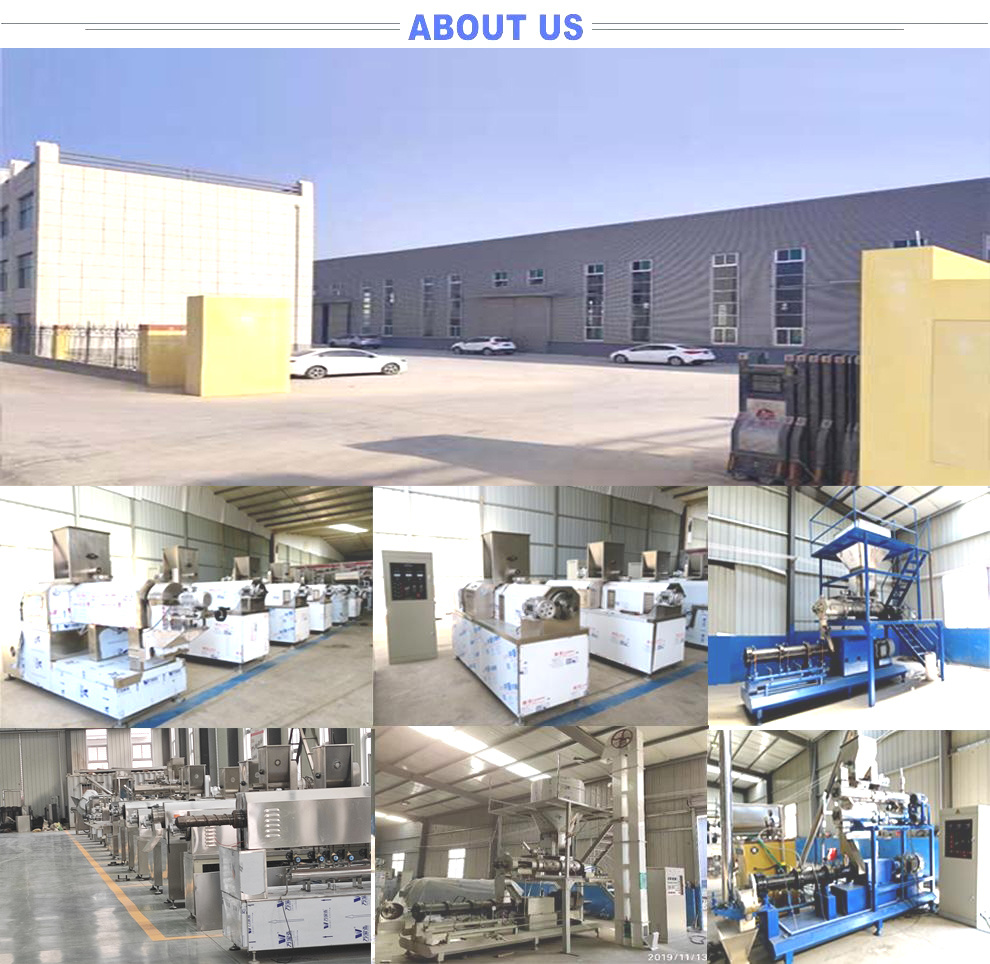

Company Information
JinanFLD Machinery Co,.Ltdis a leading manufacturer for snack food extruder. We have many years'experience of making extruder machines and providing special customize service.We can provide customers with personalized equipment or complete plant layout and production lines to meet customer needs.
Our Services
AsInflated kibble small wet dog energy saving pet cat food processing machinemanufacturer, JinanFLD Machinery Co,.Ltd has exported automatic production line to more than80countries and regions, such as South Africa, India,Malaysia, Indonesia, Brazil and so on.
If you are interested inpet dog food makingmachine,kindly contact us!
