- Model NO.：
- SLG70
- Certification：
1.Description of Floating Fish Feed Processing line :
The fish feed processing machine mainly adopts the meat meal, fish meal, bone powder, corn powder, soya meal and other grains' powder as main materials to produce the innovative shapes, high nutritional and savory taste pet food for dog, cat, fox, bird etc.
Floating Sinking Fish Feed Pellet Making MachineFlow chart:
Our engineer could design the layout drawing according to your dimension of the factory for the fish feed production line.
2.Feature details of Floating Sinking Fish Feed Pellet Making Machine:
(1) High automatic degree, all machines just need 2 worker for operation.
(2)Wide range raw material .Not only cereal flours, but also fresh meat , bone are ok.
(3) Varioussizes offish feed could be processedjustbychangingthemold.
(4) Intelligent electricheatingdeviceisadoptedwhichcanimprovethefeedexpansionrate.
(5) Hightemperatureandhighpressurecookingprocesscankillthesalmonella andbacterialinfections andalsomakesthefish feed easilytodigest.
(6)Thewettypemachineneedsaboilertomakesteamwhichcanconductsteamtothe conditionerandripentherawmaterialinadvance.
3.Voltage in China of fish feed making machine:Three phases: 380V 50HZ, Single phase: 220V 50HZ, we can make it according to customers' Local voltage according to different countries.
4.Technical Parameter
| Model | SLG65 | SLG70 | SLG75 | SLG85 | SLG95 |
| Installed power | 76kw | 95kw | 140kw | 178kw | 280kw |
| Production Capacity | 120-150kg/h | 200-260kg/h | 300-400kg/h | 400-600kg/h | 1.0-2.0 T/H |
| Size MM | 1600*1800*2000 | 1800*2000*2200 | 2000*2000*2200 | 2500*2600*3000 | 3000*3200*3500 |

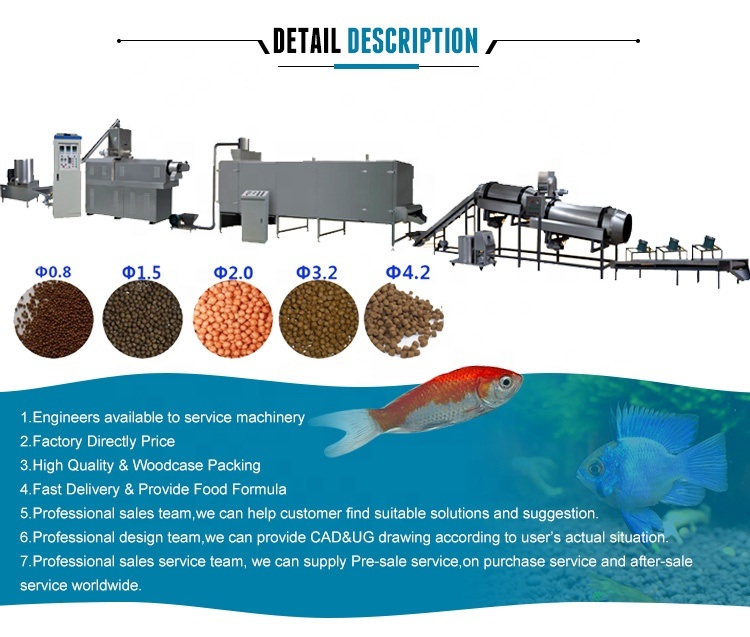

5.FIsh food pellet sample
This line can be used to produce fish pellets, the pellets size can be from 1.0 mm to 9.0 mm by adjusting the moulds from extruder; meanwhile it can produce dog food, cat food.....
6.Product Details
| 1 | Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm |
| 2 | Screw feeder Application:convey the Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel |
| 3 | Twin screw extruder-Floating Sinking Fish Feed Pellet Making Machine Application:To make the raw materials into required shape and size Type :SLG70 Capacity:200-250kg/h(SLG70) Power:30kw, 37kw Working Principle:It consists of feeding system, extruding system, cutting system, heating system; main motor and controlling system. |
| 4 | Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel |
| 5 | Dryer Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel Working Principle:The heating source can be electric, gas, steam and fuel. The material is stainless steel 304. It consists of rack system, |
| 6 | Flavoring machine Application:This device is applicable to a wide range of puffing corn snacks and fried snacks in seasoning and coating oil. Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel |
| 7 | Cooling equipment Application:used to cool the final pet food and transfer pet food to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment |
Our Services
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free online debugging of equipment until everything is functional;
4. Free management of equipment long distance shipping from seller's factory to place by the buyer;
5. Free training of equipment maintenance and operating personally in the seller's factory;
6. Free new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service; The seller is responsible for the nature damage of the machinery in one year except for man-made damage. All spare parts and wearing parts are attached with the machinery for free.

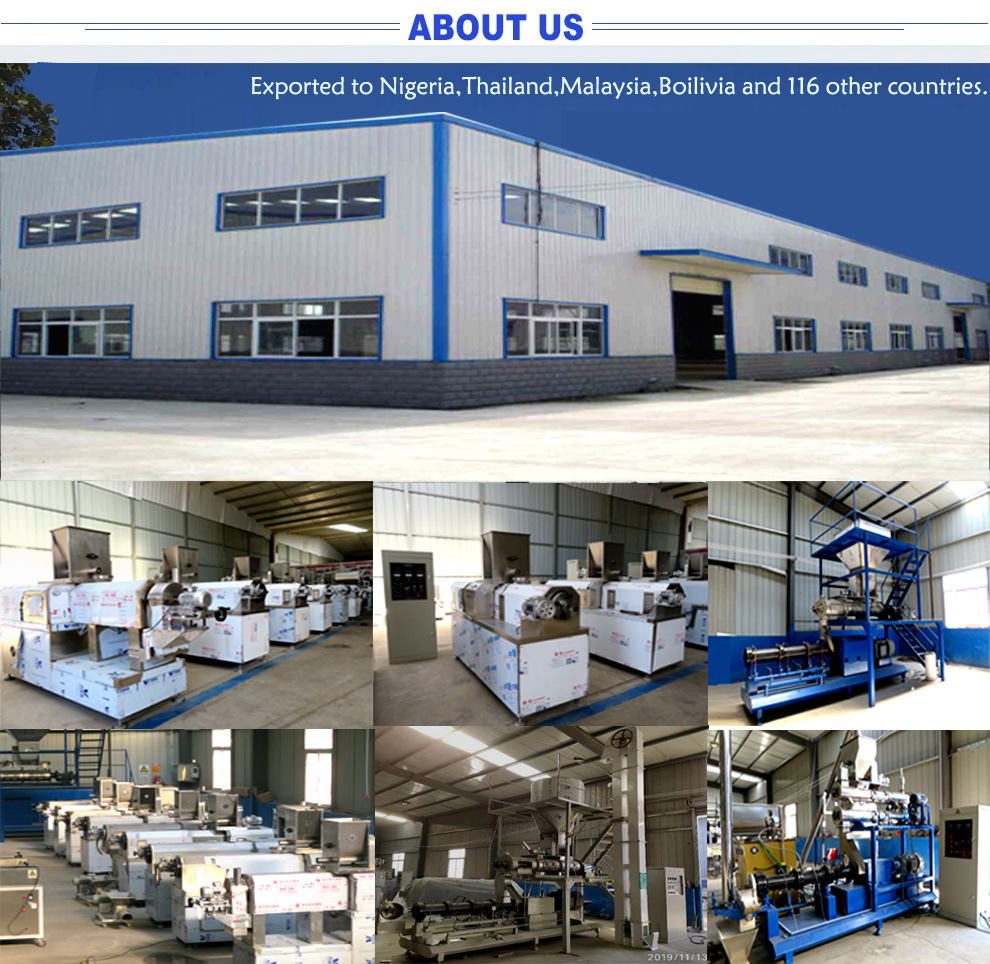

Company Information
JinanFLD Machinery Co; Ltd.is a professional supplier of food processing machines. Our company's Motto is: "Service and quality are equally important". We offer to cooperate with our customers for mutual and beneficial development. All Inquiries are welcome.
Our main products line include puffed snacks production line, core filling snack production, corn flakes/ breakfast cereals production line, pasta / pellet chips production line, kurkure production line, artificial rice production line, pet food production line, etc Most importantly, we also provide formulas, technology supports, machine inspection service, etc.
We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. based on the clients specific relationships, we also design and produce the machines to order. We have through the years established good working relationships with some reputable organizations both at home and abroad with outstanding goodwill.
If you have any questions about thefish feed making machinery, please don't hesitate to contact with us.
