High Quality Animal Pet Cat Dog Food Machine Chicken Bird Floating Fish Feed Twin Screw Extruder Pro

Model NO.：

SLG65

Certification：

CE ISO9001

Product Description

1.Description ofHot Sale Dog food maker machine:

Our Pet food machine can make pet food like Dog, Cat, Fish, Bird food etc with various shapes and tastes through changing the dies and formulas,We have full formula of foods and will guide you to use different materials to produce variety quality food.

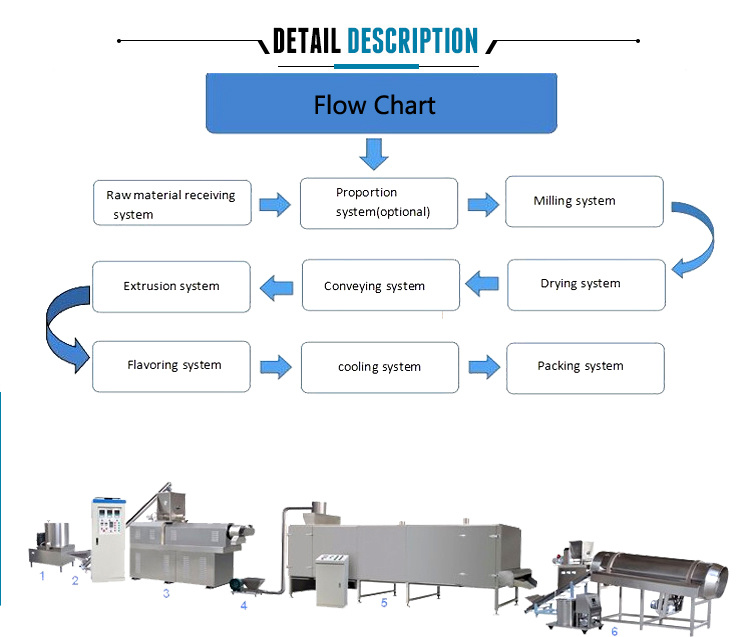

Mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→coolingmachine→packing machine

This Dog food maker machine mainly use the meat meal, fish meal, bone powder, corn powder, soya meal and other grains' powder as main materials to produce the innovative shapes, high nutritional and savory taste pet food for dog, cat, fox, bird etc and also floating or sinking aquatic feed for fish or shrimp etc. Small extruder machine for fish feedDog food maker machine endues pet food with the amount of nutrition, digestible structure, novel shape, and unique taste to meet with the needs of modern market.

1.RawMaterials:MeatMeal,FishMeal,CornPowder,SoyaMealandOtherGrainPowder

2.Products:PetFood,LikeDog,Cat,Fish,BirdFoodetc.withDifferentShapesandTastesbyChangingtheDiesandFormulations

3.Dog food making machine Capacity:120-150KG/H,200-250KG/H,400-500KG/H,800-1000KG/H.

4.Voltage: Threephases:380V/50HZ,Singlephase:220V/50HZ,wecanmakeitaccordingto

customers'localvoltageaccordingtodifferentcountries.

6.Technical Parameter of Dog food maker machine:

Model	SLG65	SLG70	SLG75	SLG85	SLG95
Installed power	76kw	95kw	130	178kw	280kw
Production Capacity	120-150kg/h	200-260kg/h	300-400KG/H	400-600kg/h	1000-1500kg/h
Size MM	1600*1800*2000	1800*2000*2200	2200*2000*2200	2500*2600*3000	3000*3200*3500

7.Dog food maker machinemakingsample
This line can be used to produce fish pellets, the pellets size can be from 1.0 mm to 9.0 mm by adjusting the moulds from extruder; meanwhile it can produce dog food, cat food.....

8.Dog food maker machine Product Details:

1	Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw Dimension:880*510*1170mm
2	Screw feeder Application:convey the Power :0.75kw Capacity:equipment with the output Dimension:3100*590*2200mm Material:stainless steel
3	Twin screw extruder Application:To make the raw materials into required shape and size Type :SLG65, 70, 85,95 Capacity:100-150kg/h(SLG65) Power:22kw, 37kw, 75kw Material:Screw materials 38CrMoAl stainless steel, carbon steel
4	Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel
5	Dryer Application:the expanded food go through the "s" passage, to be dried to increase the self life. Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel
6	Flavoring machine Application:To mix the oil and flavors on dry final pet food Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel
7	Cooling equipment Application:used to cool the final pet food and transfer pet food to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment

Packaging & Shipping

• Inside package is plastic film, outside is wooden or plywood case(Inflated kibble small wet dog energy saving pet cat food processing machinepackaging based on the customers' need)

• only plastic film nude packing with wooden pallet.

• We can supply fumigation package and certificate.

• Shipping, train, express or upon clients' demands.

Company Information

JinanFLD Machinery Co,.Ltdis a leading manufacturer for snack food extruder. We have many years'experience of making extruder machines and providing special customize service.We can provide customers with personalized equipment or complete plant layout and production lines to meet customer needs.

Our Services

AsInflated kibble small wet dog energy saving pet cat food processing machinemanufacturer, JinanFLD Machinery Co,.Ltd has exported automatic production line to more than80countries and regions, such as South Africa, India,Malaysia, Indonesia, Brazil and so on.

If you are interested inpet dog food makingmachine,kindly contact us!

FAQ

1.Q: How about the after-service about Dog food maker machine?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.

2.Q:do you supply any formula to buyer?
A: yes, we supply formulas to buyer.

3.Q:Do you supplyInflated kibble Dog food maker machine?

A:We have long-term cooperationpacking machine supplier, we will help to contact them.
