Water Spray Jars Retort Food Auto
- Model NO.：
- DGP-40
- Certification：
Product Description
1. fish feed pellet machines (dry type)
The Floating-Feed Pellet Machine can make many kinds of fodder for different kinds of animal fodder. It can make
poultry-fodder,pet-fodder, as well as aquaculture-fodder and fishery feed, which is also called floating -feed.
It is apply to the pretreatment of the animal fodder, so as to reduce loss of nutrition, advance the protein content so the fodder
will be digested easier by animals.
The poultry-fodder can feed chicken, rabbit, sheep, pig, horse, cattles and so on The pet-fodder can feed dogs ,cats, goldfish
etc.The Fishery-feed can feed the fish , shrimps , crab , eel ,cat, fish , batrachians and so on.
2.fish feed pellet machines (wet type)
1). The internationally advanced grain cutting structure adopts the soft blade fitting form to realize the stepless speed change,
which can cut the output material arbitrarily into the required one.Length products, and not easy to produce burrs.
2). Novel design, unique, simple structure, easy to assemble and disassemble, easy to operate.
3). The screw cover and screw rod are made of alloy steel with special wear-resistant high temperature, which is formed through
heat treatment and has long wear resistance and life
The advantage of the Multipurpose Fish/dog/livestock/poultry Pellet Machine Of Animal Feed
4). A unique pressure boosting die device is built in to ensure the output and quality of feed;And equipped with electric heating
device to improve the expansion rate of feed.
5). The main motor adopts high-quality y-series three-phase motor to ensure strong power.
6). Speed control feeding device, which is more convenient to operate and even feeding, and prevents bottling machine.
7). The discharge template can be replaced simply, and the feed with different aperture can be replaced only.
8). The floating granule puffed feed can float on the water surface for at least 12 hours without dispersing, and fish and poultry are easy to eat Digestion, artificial can easily observe the food quantity of frog fish, will not cause the waste of feed, will not pollute the water quality,material.High temperature and high pressure can effectively kill harmful bacteria such as escherichia coli and salmonella.Protein denaturing absorption and starch gelatinization, easy to fish and livestock absorption.Puffed fish feed is generally used in the form of powder or Save 8%-15% on grain feed.
9). It can produce submerged aquatic and livestock pellet feed, which can eliminate most toxins and anti-nutrition factors in materials.Trypsin and urinase are beneficial to the digestion and absorption of animals and improve the digestibility of nutrients.

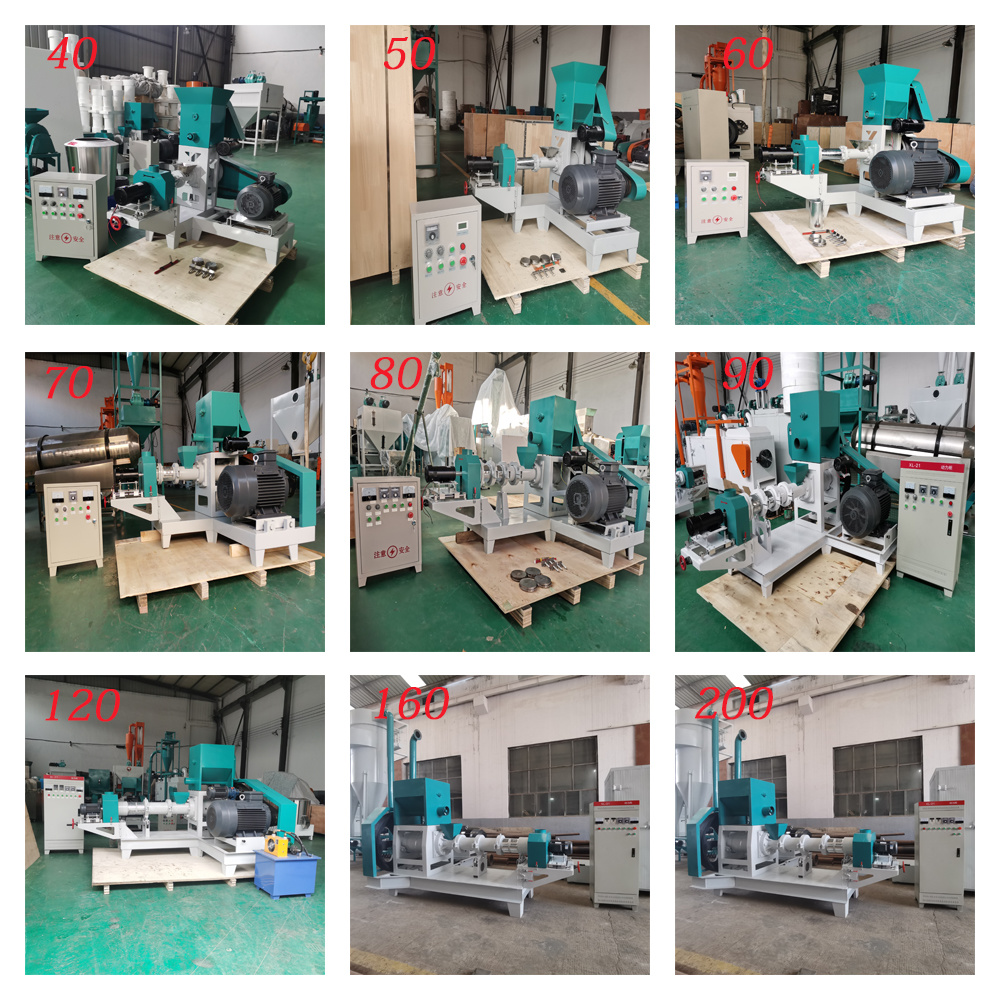

Dry floating fish feed pellet making machine
wet
Dry floating fish feed pellet making machine
| ItemNo. | Capacity(kg/hour) | Mainmotorvoltage(kw) | Feeder voltage(kw) | Cutter voltage(kw) | Diameter Ofscrew(mm) | Size(mm) | Weight (kg) |
| DGP-40 | 50-70 | 5.5 | 0.4 | 0.4 | Φ40 | 1400*1030*1200 | 220kg |
| DGP-50 | 60-100 | 11 | 0.4 | 0.4 | Φ50 | 1500*1100*900 | 380kg |
| DGP-60 | 120- 160 | 15 | 0.4 | 0.4 | Φ60 | 1500*1140*950 | 420kg |
| DGP-70 | 180-260 | 18.5 | 0.4 | 0.4 | Φ70 | 1800*1500*970 | 640kg |
| DGP-80 | 300-360 | 22 | 0.4 | 0.6 | Φ80 | 1820*1550*1300 | 820kg |
| DGP-90 | 380-450 | 37 | 0.6 | 0.8 | Φ90 | 2100*1450*1350 | 950kg |
| DGP- 120 | 500-600 | 55 | 1.1 | 1.5 | Φ120 | 2560*2000*1200 | 1850kg |
| DGP- 135 | 800- 1000 | 75 | 2.2 | 2.2 | Φ133 | 2800*2200*1500 | 2200kg |
| DGP- 160 | 1300-1500 | 90 | 1.5 | 3.0 | Φ155 | 3100*2650*1800 | 3200kg |
| DGP- 200 | 1800-2000 | 132 | 2.2 | 3.0-4.0 | Φ195 | 3100*2850*1900 | 3800kg |
| ItemNo. | Capacity(kg/hour) | Mainmotorvoltage(kw) | Feeder voltage(kw) | Cutter voltage(kw) | Tempering power(kw) | Diameter Ofscrew(mm) | Size(mm) | Weight (kg) | EXW Price(USD) |
| DSP-60 | 180-200 | 15 | 0.4 | 0.4 | 0.75 | Φ60 | 1850*1150*1380 | 520 | 4050 |
| DSP-70 | 250-300 | 18.5 | 0.75 | 0.75 | 1.1kw | Φ70 | 2460*1550*1740 | 940 | 6400 |
| DSP-80 | 350-400 | 22 | 1.1 | 1.1 | 2.2kw | Φ80 | 2650*1450*1750 | 1100 | 8700 |
| DSP-90 | 500-600 | 37 | 1.1 | 1.1 | 2.2kw | Φ90 | 2600*2100*1900 | 2000 | 12000 |
| DSP-120 | 700-800 | 55 | 1.1 | 1.5 | 2.2kw | Φ120 | 3200*1950*1900 | 2100 | 14650 |
| DSP-135 | 1000-1200 | 75 | 1.5 | 2.2 | 3kw | Φ135 | 3750*1980*1800 | 2600 | 17550 |
| DSP-160 | 1800-2000 | 90 | 2.2 | 2.2 | 4kw | Φ160 | 6600*2800*1800 | 3900 | 25800 |
| DSP-200 | 3000-4000 | 132 | 2.2 | 3.0 | 5kw | Φ200 | 6600*2900*2350 | 4500 | 30000 |
