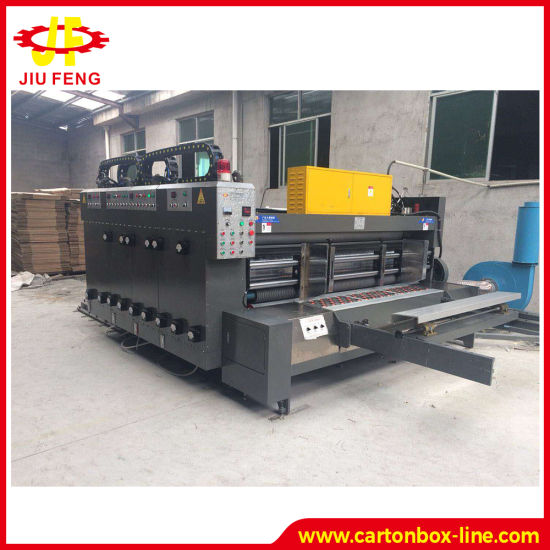

Jf1424 Two Colors Simplified Lead Edge Feed Automatic Printing Slotting Machine

Price:50000.00

Minimum order:1 SetStock0 Set

Total:
0 Set
Brand:
Area:
GUANGDONG
Delivery time:
From the date of payment by the buyerinternal delivery

Business card

  • Corporate nameDongguan Jiufeng Carton Machinery Co., Ltd.
  • ContactsLena(Mr.)
  • Telephone
  • Mobile
  • AddressXialang Industrial Zone, Xiaoxiang Community, Wanjiang District, Dongguan, Guangdong, China
Popular goods
  • 1
  • 2
  • 3
Recommend

Jf1424 Two Colors Si

$50000.00/Set

Store information

Area:GUANGDONG

Level:corporate memberThe1year

Authentication:

Paid:0.00 bond

My Medal: [archives]

Customer service:

Business card

【warm tips】please explain what you saw us atAfrican-MachineThank you
Product details
Model NO.:
SEMI-AUTO PRINTER SLOTTER
Certification:
Simplified Lead Edge Feeding Printer Semi-auto Printing Slotting Machine
Performance characteristics:
The printer slotter machine has the function of deburring, creasing, slotting and angle cutting. Optional device for punching air holes and handhole is available upon request.The positions of the print roller and slotting knife can be 360-degree electrically adjusted, and the adjustment before and after can be digitally displayed, ensuring high registration accuracy. Due to the fast printing and slotting, high working efficiency and reduced squander are achieved.The 4 sets of slotting knife could be adjusted simultaneously, which decreases the time of adjusting machine to applicable for different cartons and increases productivity .There is a left and right movement adjustment device powered by electric between creasing and sloting, and it can be adjusted simultaneously to ensure that the two positions are accurate (no dislocation) to reduce waste.Steel anilox rollers can be ranked in order on the basis of client's demands.Each shaft surface is grinded by grinding machine, hard chrome plated and polished.When the semi-automatic printer slotter machine and the platform separate, the pneumatic brakes guarantee precise printing.Chain Feeding System Semi-automatic Printing Slotting Machine


PARAMETERS:
ModelJF1424
Max Printing Area (mm)1400*2400
Min Printing Area(mm)390*600
Max size of Feeding Area(mm)1400*2550
Min size of Feeding Area(mm)600*510
Max Depth of Slot(mm)750
Max Speed(pcs/min)70
The Thickness of Cardboard(mm)3-11

ModelJF2436
Max Printing Area(mm)2400*3300
Min Printing Area(mm)510*850
Max size of Feeding Area (mm)2500*3500
Min size of Feeding Area (mm)600*510
Max Depth of Slot (mm)750
Max Speed (pcs/min)60
The Thickness of Cardboard(mm)3-11


Besides the corrugated carton making equipment, Jiufeng company also provide printer slotter machine for cardboard printing and slotting, and as we provide complete corrugated cardboard box machine line, including corrugated cardboard printer, die cutter, cardboard folder gluer with plenty of experience since 1996, we are sure to offer customers high quality corrugated carton equipment and corrugated cardboard solutions for customers.


about Us:

Dongguan Jiufeng Carton Machinery Co., Ltd. is a pluralistic carton machinery manufacturing company dedicated to carton machine research, production and sales, all while providing top of the line products and one-stop services for customers.
Jiufeng Carton Machinery was established in 1996 as a small start-up, and through hard work, dedication and loyal customers, we now employ more than 50 people, including 10 research and development team members, and 12 science and technology experts to make full use of raw materials and new technologies to ensure the best performance of all products. Jiufeng's plant area has exceeded 10000 m² and includes more than 10 production lines used to produce various products, including a full set of carton equipment such as Hidepack corrugated box making machines (high definition printing, drying, slotting, die cutting and gluing ), D-Star corrugated box making machines (vacuum heat transfer, printing, slotting and die cutting), G5 corrugated box making machine(high speed printing, slotting, and die cutting), servo control system semi-automatic carton stitcher, automatic and semi-automatic rotary slotting creasing machine, large roller printing machine (multi-color), semi-automatic carton gluer, BFY series of blade slitter scorer, and nailing machines. These products are widely used in carton cutting, carton binding, carton printing and color printing.
Jiufeng Carton Machinery has exported products to more than 10 countries in East Africa and Southeast Asia, demonstrating that our high quality products and professional, individualized sales services have earned the trust of our customers and kept them coming back for more.

Our Services
According to the customer's requirement, we will arrange one technician to help you to install the machine and train the worker, but all the expenses like round-trip air tickets, accommodation, meals and salary USD80/day, incurred therefrom shall be born by the buyer.

Warranty
Warranty: one year. The manufacturer will send the buyer new parts( no intentional damage). However, the courrier should be covered by the customer. Please note that the belts are excluding the one year's warranty.

FQA:
1. What is the machine warranty?
one year.
2. Does your machine with CE certificate?
Yes.
3. What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment L/C.
4.What is the production time while placing order?
about 30 days.
5.What is the delivery time?
Within 30 days after get the payment.
6.Does the packing strong?
Yes, of course! All of our export packings is with strong wooden pallets, all are confirmedto export packing standard.
7. Are you manufacturer?
Yes, we are manufacturer, and we have been in this field for more than 10 years.
8. Do you have a stock product to sell?
Actually our machine need 20-30 days to manufacture, and there are many ordersfrom China and foreign countries, so we need a custom one for you, and your order willbe highly attention to manufacture.
9. How about after-sales service process?
When your machine has a problem, contact your sales and we will solve your problem as soon as possible.
10. Do you inspect the finished products?
Yes, we have QC department, they will inspection the machine before shipping, to ensure there is nothing problem of the machine.
11. Do you have your technical team?
Yes, we have our own technical team and we have our own patents. And we can custom the machine as customer want.
