- Model NO.：
- DLG70
- Certification：
1.200-300kg/HFishFoodMachineFloatingFishFeedExtruderMachineApplication:
(1). Durable Wearing Parts, and Various Feed Size suitable for different steps of Fish or PET.Selectable Mould Size from 1mm to 12mm.
(2). Voltage based on380V,50HZ,3Phase;If you have different demands, please let me know. We customized Voltage with dfferent country's requirement.
(3). We have two types of Fish Feed Machine:Wet Type and Dry Type.
Dry Type: one single machine is enough for making fish feed or PET Feed.
Wet Type: need to working with Boiler.
2.Bird Food Extruder Machine Floating Fish Feed Pellet MachineFeatures:
1.The cutting structure is very advanced with cutter shaft fixed spring to cut to realize infinitely speed change; the final output product can be cut freely in different length according to requirement.
2.Novel design, unique, simple structure, easy to install and operate.
3.The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed, its with wear-resisting and long life.
4.In order to ensure quality and capacity, there is special pressurization die device. And the electric heating device improves the feed expansion rate.
5.The main bearing is from Japanese and Sweden bearing to ensure its safety. The main motor is Y-Series three phrase motor

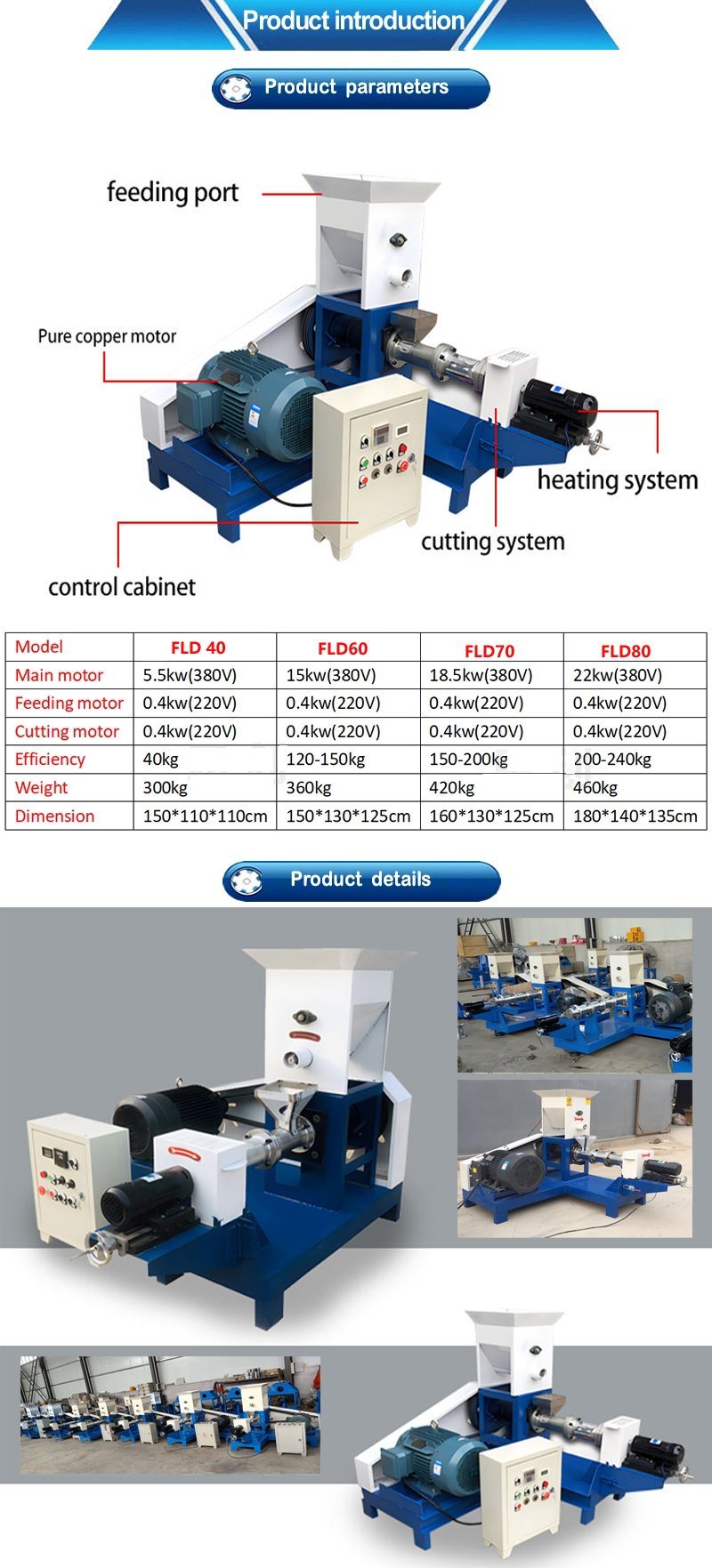

3.FloatingFishFeedExtruderMachineparameter:
Model | Capacity kg/h | Main Power | Feeding Power | Screw diameter | Cutter power | Pellet size |
FLD-40 | 40-60kg/h | 7.5kw | 0.4kw | φ40mm | 0.4kw | 1-12mm |
FLD-50 | 60-80kg/h | 11kw | 0.4kw | Φ50mm | 0.4kw | 1-12mm |
FLD-60 | 100-150kg/h | 15kw | 0.4kw | Φ60mm | 0.4kw | 1-12mm |
FLD-70 | 180-250kg/h | 18.5kw | 0.4kw | Φ70mm | 0.4kw | 1-12mm |
FLD-80 | 300-350kg/h | 22kw | 0.4kw | Φ80mm | 0.6kw | 1-12mm |
FLD-90 | 400-450kg/h | 37kw | 1.1kw | Φ90mm | 0.6kw | 1-12mm |
FLD-120 | 500-700kg/h | 55kw | 1.1kw | Φ120mm | 1.5kw | 1-12mm |
FLD-135 | 800-1000kg/h | 75kw | 1.1kw | Φ133mm | 2.2kw | 1-12mm |
FLD-160 | 1200-1500kg/h | 90kw | 1.5kw | Φ155mm | 2.2kw | 1-12mm |
FLD-200 | 1800-2000kg/h | 132kw | 1.5kw | Φ195mm | 3.0kw | 1-12mm |

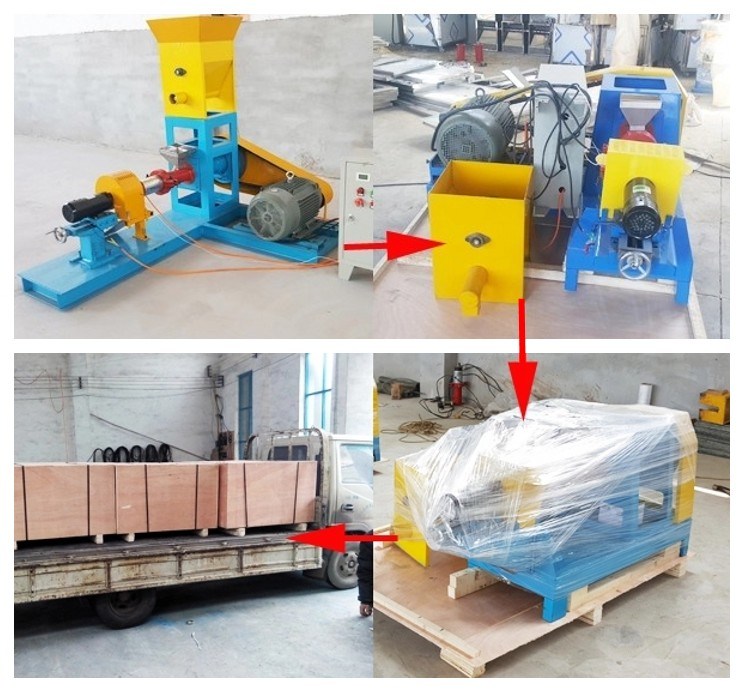

Packaging & Shipping
The fish feed pellet machine have been succeed export to: Thailand, Indonesia, Malaysia, Philippines, Vietnam, Laos, Myanmar, Cambodia, Nepal, Bangladesh, Pakistan, India, South Korea, Japan, Nigeria, Bulgaria, Tanzania, Mauritania, Morocco, Egypt, Algeria, Sudan, Mali, Congo, Kenya, Ghana, south Africa, Swaziland, Greece, Israel, French, Italy, Hungary, Romania, Finland, England, Saudi Arabia, Georgia, Uzbekistan, Russia, Canada, America, Haiti, Honduras, Botswana, Ecuador, Trinidad and Tobago, Dominican Republic, Malawi, Brazil, Chile, Argentina, Bolivia,Australia, New Zealand, Fiji, etc.
Company Information
Jinan FLD Machinery Company products include: Animal Feed Machine, Animal Feed Plant, Pet Food Machine, Wood Chipper, Wood Crusher, Hammer Mill, Wood Shaving Machine, Granules Packaging Machine. With Extensive Applications, Premium Quality, Reasonable Prices and Stylish Design. Customer's Trust and Reputation Our products are widely recognized and trusted by domestic and foreign Customers; And have been exported to more than 50 countries and regions in the world,
including: Germany, Italy, France, USA, Russia, Romania, Greece, Portugal, Turkey, South Africa, Brazil, India and other countries, and win the good reputation of the clients all over world with reliable service. For more detailed information of our machinery & equipment, please do not hesitate to contact with us! We will provide you with Complete Technical Services and Professional Marketing Advice ASAP.
