- Model NO.：
- TK
- Certification：
- CE, FDA

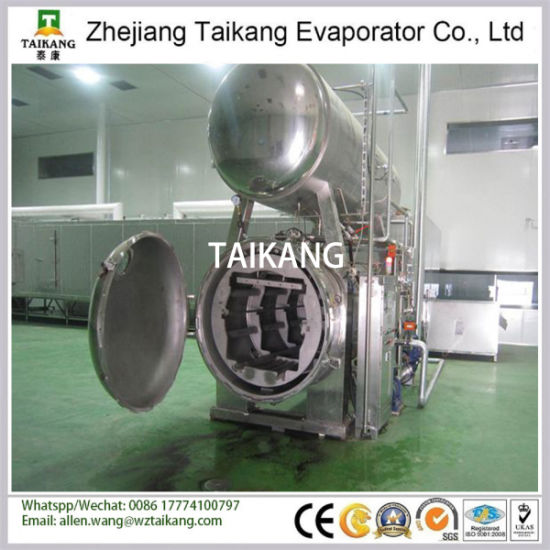

The hot water rotary sterilizeruses high-temperature and high-pressure hot water for high-temperature and rapid sterilization of various foods. The food continuously and slowly rotates in the device to make it transfer more quickly and evenly, which greatly shortens the entire sterilization process time, so as to achieve high temperature and short-term sterilization. deal with. At the same time, overheating around the food can be avoided. The temperature control system can flexibly carry out automatic control according to the characteristics of different packaging materials. The pressure control system automatically adjusts the pressure according to the standard mode. According to different conditions, the back pressure is corrected. This is very beneficial to prevent the deformation and damage of the container and increase the yield. . You can check the T-t, P-t record curve by the analysis pen, which can effectively carry out production and quality management.
| Item | Details |
| Equipment size(mm) | 1700X1200X1800 |
| Equipment weight (k g) | 3000 |
| Rated capacity(L) | 2-5 |
| Power Equipment(kw/h) | 12 |
| Start Power Equipment(v) | 380V |
| Pressurization time(s) | 180-280 |
| Parts | touch-screen control system, cooling system, heating system, water treatment systems |
| Media device applications: | Low voltage control 46 # anti-wear hydraulic oil |
| High-pressure system | filtered local tap water |
| MODEL | BY.S-600/50L | BY.S-600/100L | BY.S-600/200L | BY.S-600/250L | BY.S-600/300L | BY.S-600/400L | BY.S-500/400L |
| MAX.PRESSURE | 600MPa | 600MPa | 600MPa | 600MPa | 600MPa | 600MPa | 400MPa |
| MEDIA SUBSTANCE | Water | Water | Water | Water | Water | Water | Water |
| INNER SIZE | Dia:ø220mm Length:1500mm | Dia:ø260mm Length:2125mm | Dia:ø300mm Length:3030mm | Dia:ø300mm Length:3740mm | Dia:ø320mm Length:3930mm | Dia:ø360mm Length:4300mm | Dia:ø400mm Length:4400mm |
| DEVICE SIZE | 4mX3mX2m (transition belt 6m) | 5mX3mX2m (transition belt 8 m) | 5.5mX3mX2m (transition belt 10 m) | 6mX3mX2m (transition belt 12 m) | 6mX3mX2m (transition belt 12 m) | 6.5mX3mX2m (transition belt 14 m) | 7mX3mX2m (transition belt 15 m) |
| WIGHT | 25tons | 33tons | 45tons | 55tons | 60tons | 80tons | 90tons |
| PRESSURIZATION TIME | 3-5MIN | 3-5MIN | 3-5MIN | 3-5MIN | 3-5MIN | 3-5MIN | 3-5MIN |
| POWER | 40KW | 80KW | 120KWW | 160KW | 160KW | 240KW | 240KW |
