The1year
- Model NO.：
- UV-6W
- Certification：
Application area
Extensively applied in drinking water machine, homewater purifier, drink equipment disinfection, waste treatment and other fields.
| MODEL NO. | UV-4W | |||
| DEscriptION | Flow rate: Clean water: 0.25 Gpm | |||
| Voltage: 100~120V,220~240V, 50/60 Hz | ||||
| UV germicidal lamp: 4W x 1 | ||||
| Ballast: 4W x 1 | ||||
| Inlet / outlet: 1/4 inch FPT | ||||
| Max. working pressure: 125 PSI | ||||
| Chamber/housing: 304 stainless steel | ||||
| Packing Dimension:35*15*6.5(63*36*36.5/20pcs) | ||||

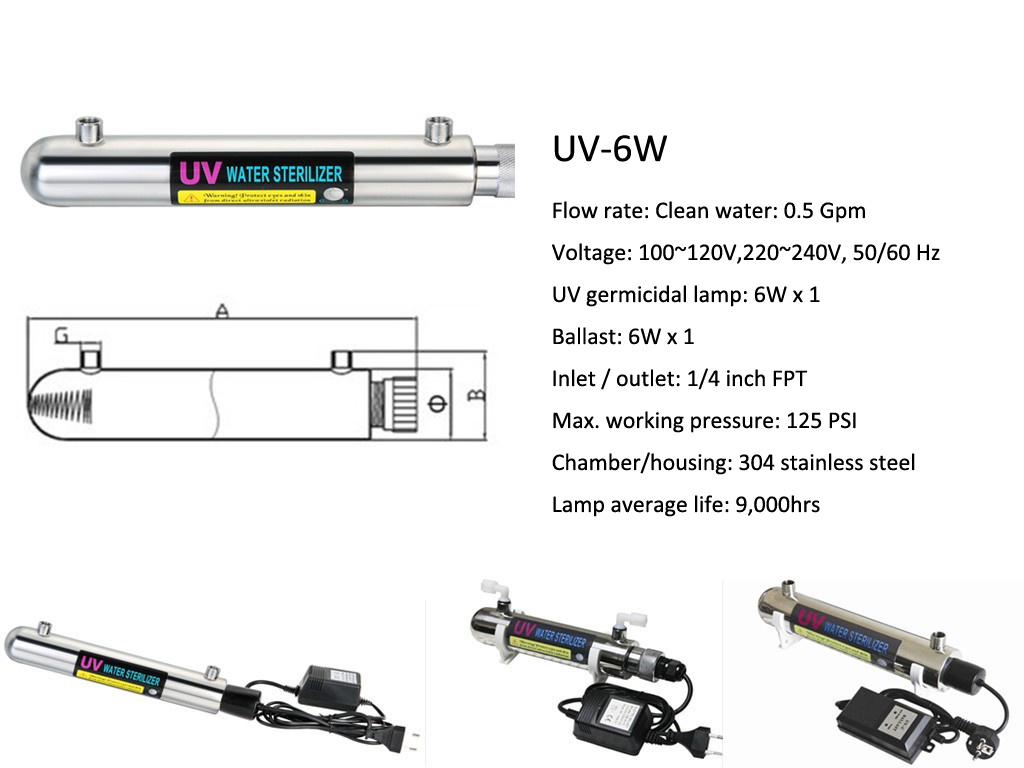

| MODEL NO. | UV-6W | |||
| DEscriptION | Flow rate: Clean water: 0.5 Gpm | |||
| Voltage: 100~120V,220~240V, 50/60 Hz | ||||
| UV germicidal lamp: 6W x 1 | ||||
| Ballast: 6W x 1 | ||||
| Inlet / outlet: 1/4 inch FPT | ||||
| Max. working pressure: 125 PSI | ||||
| Chamber/housing: 304 stainless steel | ||||
| Packing Dimension:35*15*6.5(48*36*35.5/15pcs) | ||||
| MODEL NO. | UV-12W | |||
| DEscriptION | Flow rate: Clean water:1 Gpm | |||
| Voltage: 100~120V,220~240V, 50/60 Hz | ||||
| UV germicidal lamp: 12W x 1 | ||||
| Ballast: 12W x 1 | ||||
| Inlet / outlet: 1/4 inch FPT | ||||
| Max. working pressure: 125 PSI | ||||
| Chamber/housing: 304 stainless steel | ||||
| Packing Dimension:40*15*9(49*41.5*32.5/10pcs) | ||||
| MODEL NO. | UV-16W | |||
| DEscriptION | Flow rate: Clean water: 2 Gpm | |||
| Voltage: 100~120V,220~240V, 50/60 Hz | ||||
| UV germicidal lamp: 16W x 1 | ||||
| Ballast: 16W x 1 | ||||
| Inlet / outlet: 1/4 inch FPT | ||||
| Max. working pressure: 125 PSI | ||||
| Chamber/housing: 304 stainless steel | ||||
| Packing Dimension:40*15*9cm(49*41.5*32.5cm/10pcs) | ||||
| MODEL NO. | UV-25W | |||
| DEscriptION | Flow rate: Clean water: 6 Gpm | |||
| Voltage: 100~120V,220~240V, 50/60 Hz | ||||
| UV germicidal lamp: 25W x 1 | ||||
| Ballast: 25W x 1 | ||||
| Inlet / outlet: 1/2 inch FPT | ||||
| Max. working pressure: 125 PSI | ||||
| Chamber/housing: 304 stainless steel | ||||
| Packing Dimension:60*15*9.2cm(62*21*22cm/10pcs) | ||||
| MODEL NO. | UV-30W | |||
| DEscriptION | Flow rate: Clean water: 8 Gpm | |||
| Voltage: 100~120V,220~240V, 50/60 Hz | ||||
| UV germicidal lamp:30W x 1 | ||||
| Ballast: 30W x 1 | ||||
| Inlet / outlet: 3/4 inch FPT | ||||
| Max. working pressure: 125 PSI | ||||
| Chamber/housing: 304 stainless steel | ||||
| Packing Dimension:96*15*9.5cm(100*32*32cm/4pcs) | ||||
| MODEL NO. | UV-35W | |||
| DEscriptION | Flow rate: Clean water: 10 Gpm | |||
| Voltage: 100~120V,220~240V, 50/60 Hz | ||||
| UV germicidal lamp: 35W x 1 | ||||
| Ballast: 35W x 1 | ||||
| Inlet / outlet: 3/4 inch FPT | ||||
| Max. working pressure: 125 PSI | ||||
| Chamber/housing: 304 stainless steel | ||||
| Packing Dimension:96*15*9.5cm(100*32*32cm/4pcs) | ||||
| MODEL NO. | UV-55W | |||
| DEscriptION | Flow rate: Clean water: 12Gpm | |||
| Voltage: 100~120V,220~240V, 50/60 Hz | ||||
| UV germicidal lamp: 55W x 1 | ||||
| Ballast: 55W x 1 | ||||
| Inlet / outlet: 3/4 inch FPT | ||||
| Max. working pressure: 125 PSI | ||||
| Chamber/housing: 304 stainless steel | ||||
| Packing Dimension:96*15*9.5cm(100*32*32cm/4pcs) | ||||
| MODEL NO. | UV-110W | |||
| DEscriptION | Flow rate: Clean water: 24 Gpm | |||
| Voltage: 100~120V,220~240V, 50/60 Hz | ||||
| UV germicidal lamp: 55W x2 | ||||
| Inlet / outlet: 1 inch FPT | ||||
| Max. working pressure: 125 PSI | ||||
| Chamber/housing: 304 stainless steel | ||||
| Packing Dimension:103*23*41cm | ||||
| MODEL NO. | UV-220W | |||
| DEscriptION | Flow rate: Clean water: 48 Gpm | |||
| Voltage: 100~120V,220~240V, 50/60 Hz | ||||
| UV germicidal lamp: 55W x 4 | ||||
| Inlet / outlet:DN40 | ||||
| Max. working pressure: 125 PSI | ||||
| Chamber/housing: 304 stainless steel | ||||
| Packing Dimension:104*25*24cm | ||||
