- Model NO.：
- SD series
- Certification：
- ISO13485

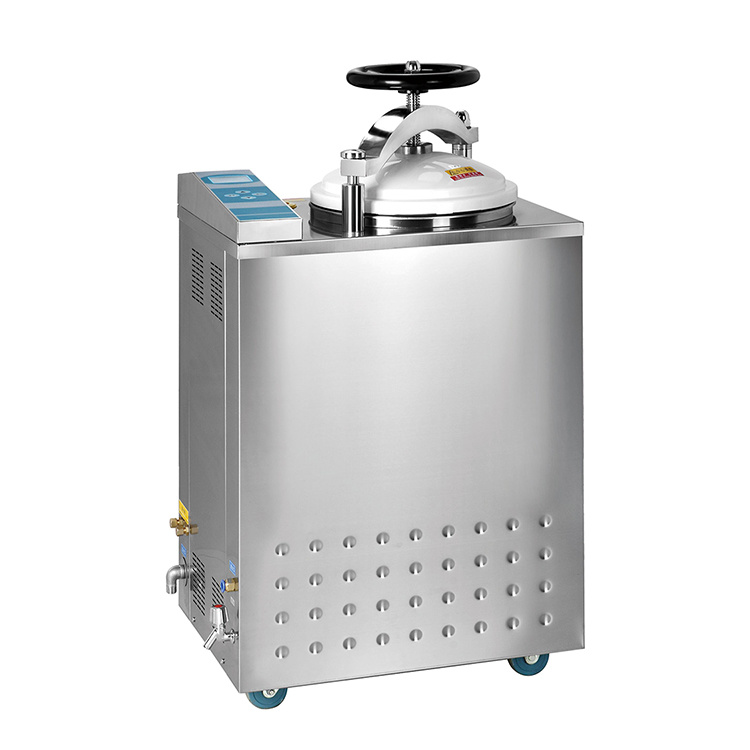

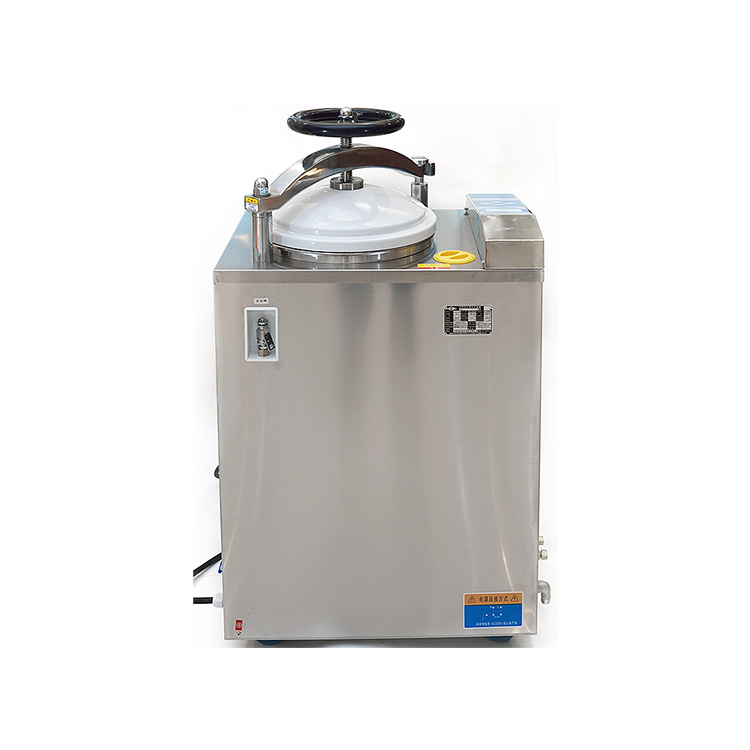

UseThe vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects. convenient of operation and energy conservation. They are ideal equipments forthe scientific research institutes and the hospital laboratory.Characteristics

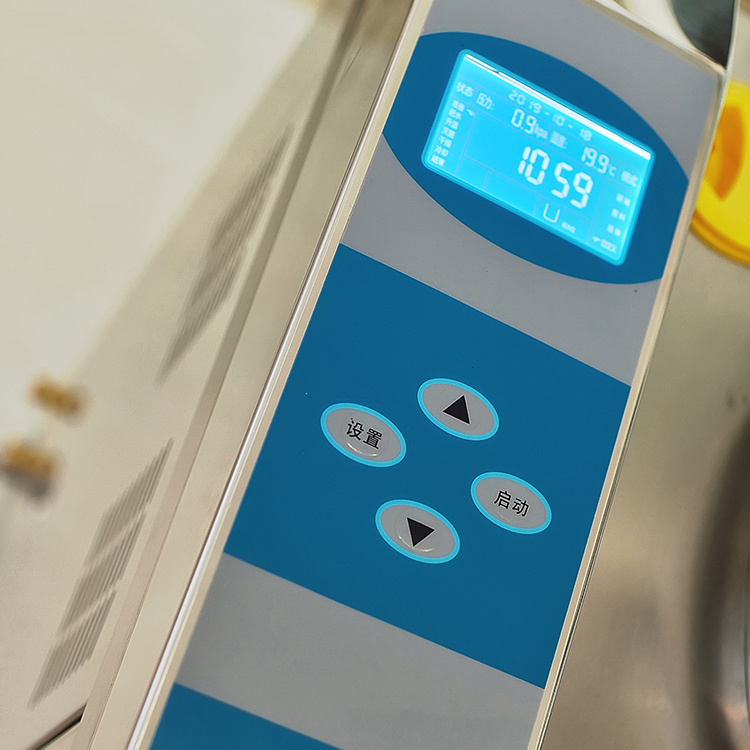

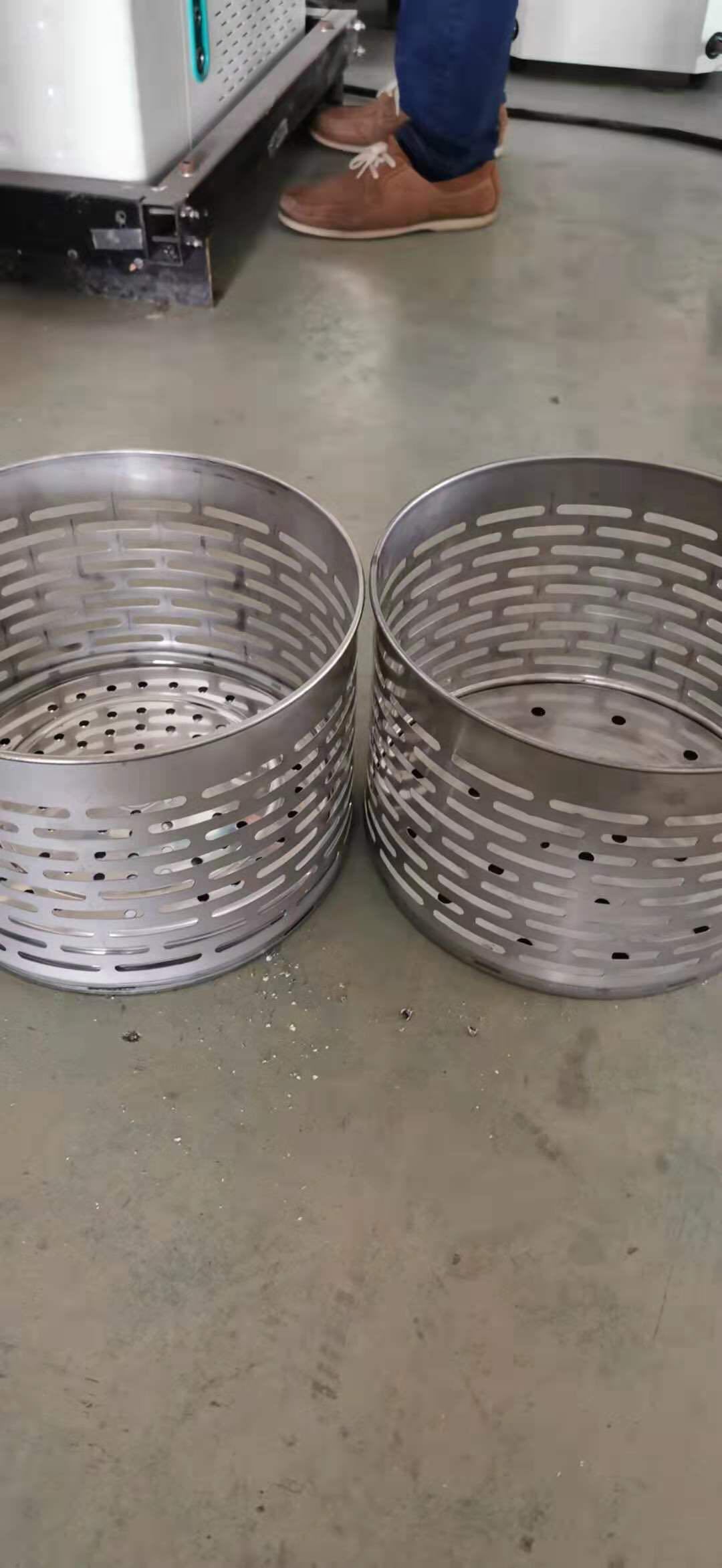

| •Fully stainless steel structure. •Hand wheel type of quickopen door structure. •Door safety lock system. •Automatically controlled by computer. •LCD display of working status, touch type key. •Over temperature &over pressure autoprotection. | • Steamwater inner circulation system: no steam discharge, and the environmentfor sterilizing will be clean and dry.•Selfinflating type seal. •Safe protection of water lacking.o •With perfect drying function. •Automatically shut off with beep reminding after sterilization. •With two stainless steel sterilizing baskets. |
Technical Data

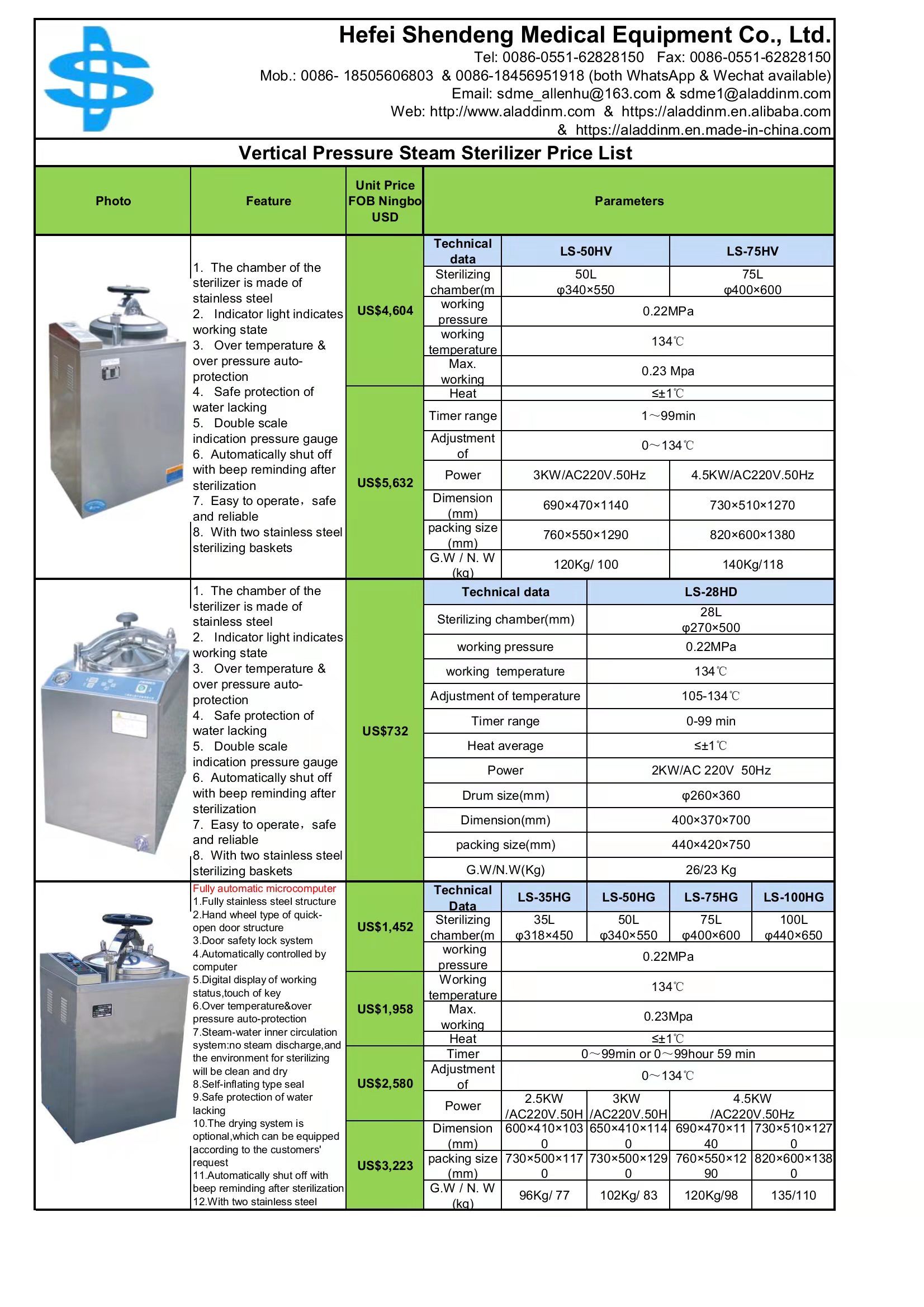

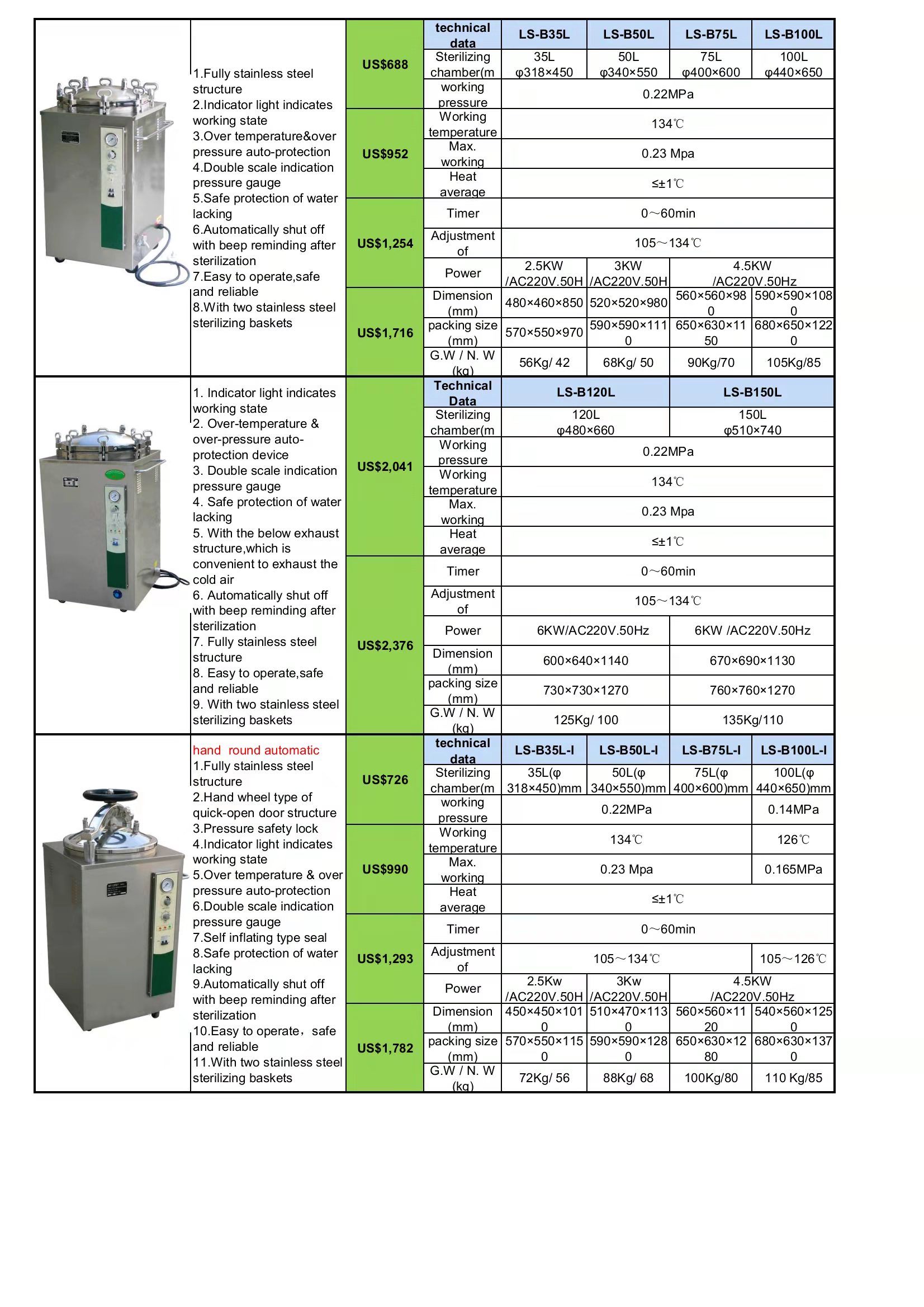

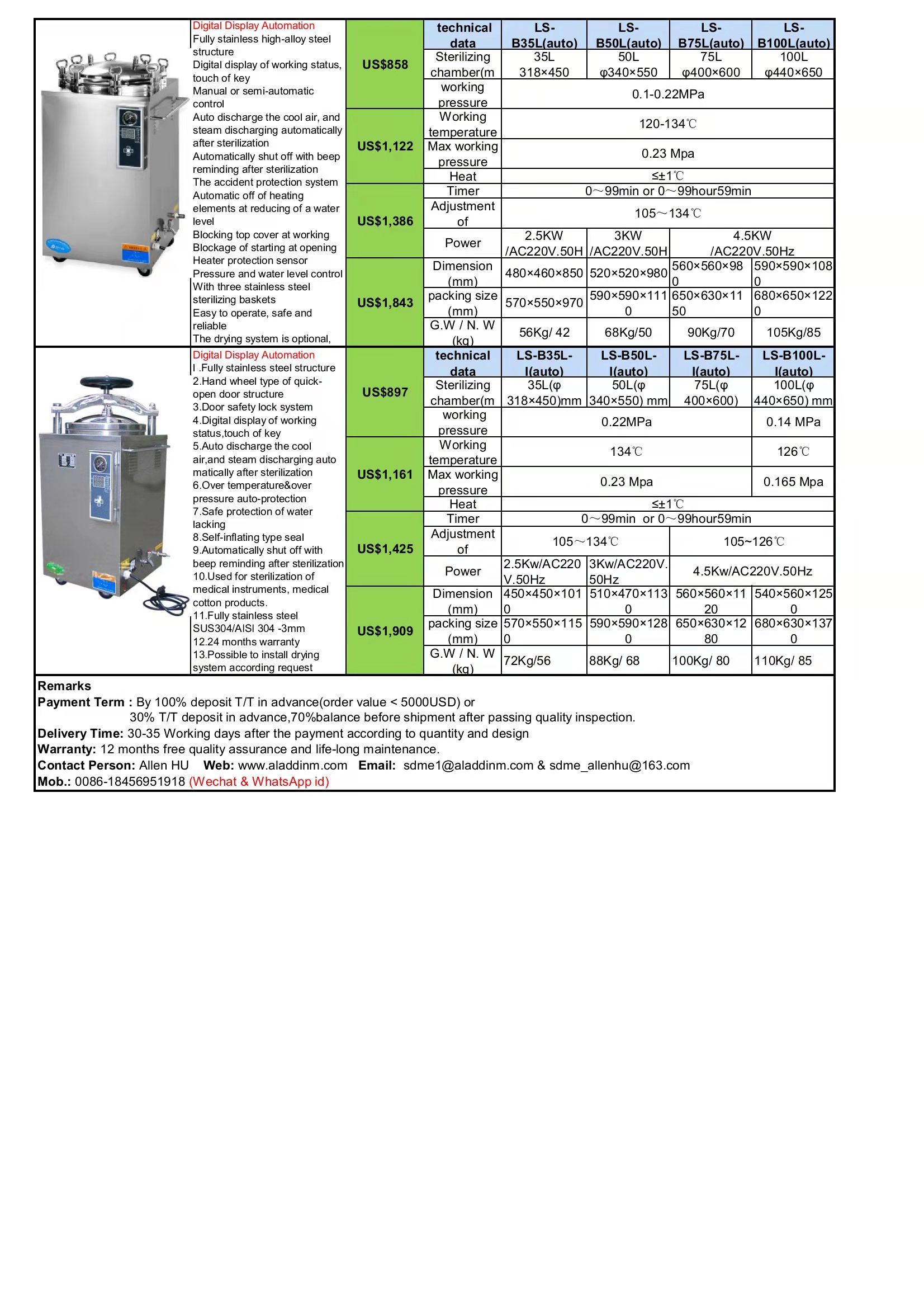

MODEL | LS-35HG | LS-50HG | LS-75HG | LS-100HG |
Technical Data | ||||
Chamber volume | 35L φ318×450mm | 50L φ340×550mm | 75L φ400×600mm | 100L φ440×650mm |
Working pressure | 0.22Mpa | |||
Working temperature | 134ºC | |||
| Max. working pressure | 0.23Mpa | |||
Heat average | ≤±1ºC | |||
Timer range | 0-99min/0-99hour59min | |||
Temperature adjust range | 0-134ºC | |||
Power | 2.5KW/AC220V 50HZ | 3KW/AC220V 50HZ | 4.5KW/AC220V 50HZ | |
| Overall dimension(mm) | 600×410×1030 | 650×410×1140 | 690×470×1140 | 730×510×1270 |
| Transport dimension(mm) | 730×500×1170 | 730×500×1290 | 760×550×1290 | 820×600×1380 |
G.W/ N.W | 96Kg/77Kg | 102Kg/83Kg | 120Kg/98Kg | 135Kg/110Kg |

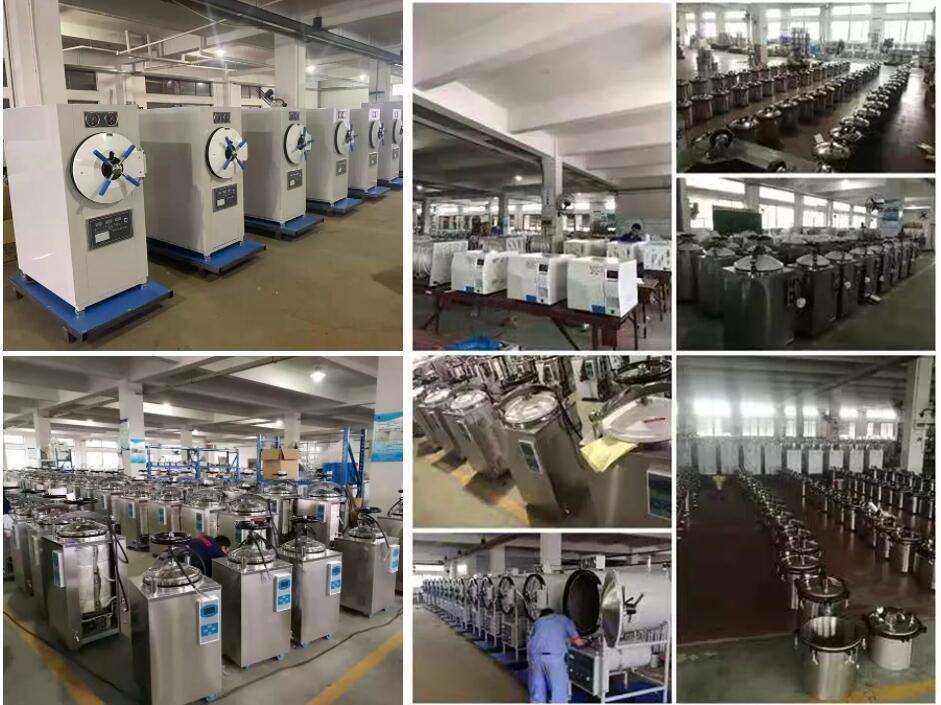

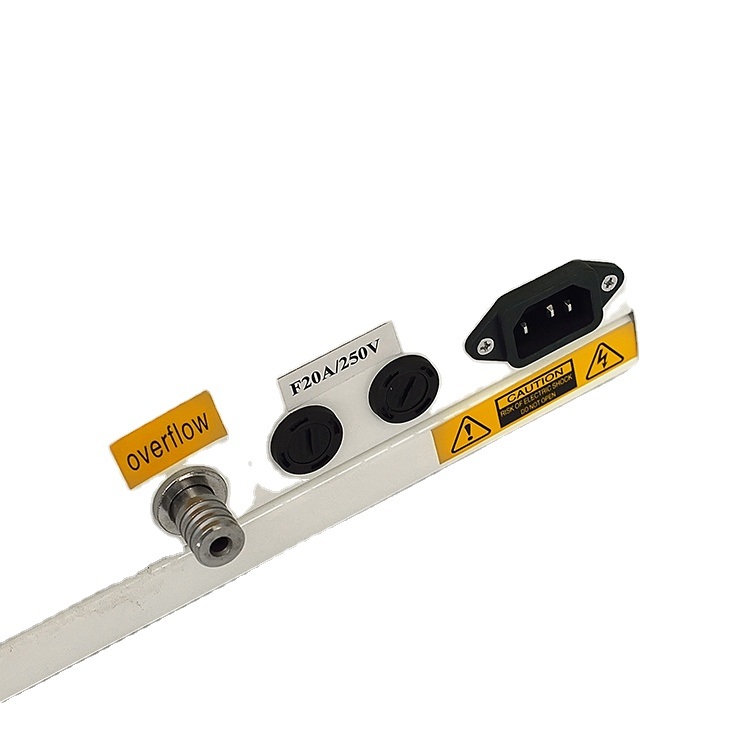

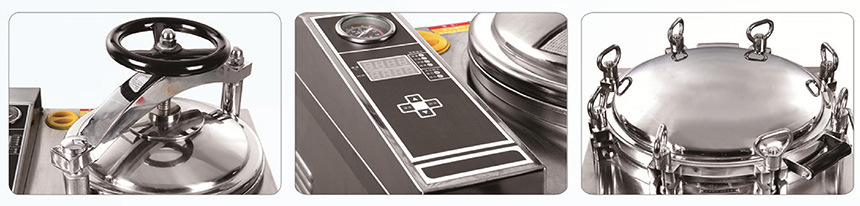

Details Images
