The1year
- Model NO.：
- CMS800G
- Certification：
- CE, ISO13485
ntent="" style="background-color:#ddebf6;padding:0 10px;margin:0;line-height:36px;text-align:left;">Instructions

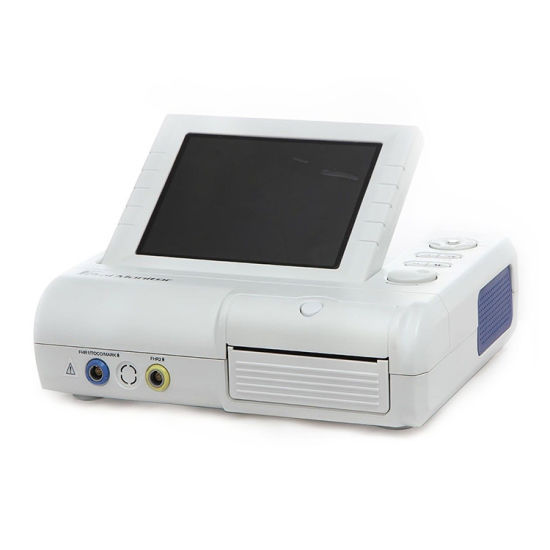

Fetal Monitor can real-time acquire FHR, TOCO and FMOV,which can provide reference data for clinical use. It can
be used individually or connected with central monitoring system in obstetrical department to form a network
monitoring system.
ntent="" style="background-color:#ddebf6;padding:0 10px;margin:0;line-height:36px;text-align:left;">Function
1.Compact design, it can be placed horizontally or hung on the wall.
2.Color LCD, 60° convertible screen
3.Display monitoring curve and data clearly
4.Area mark for normal FHR(120 BPM~160 BPM).
5.Manual record for fetal movement.
6.Alarm for abnormal FHR
7.Real-time monitoring for continuous 24 hours.
8.Storage, playback and print the monitoring curve for continuous 12 hours.
9.Optional interface languages: Chinese and English.
10.Optional twins monitoring.
11.9-crystal and broad beam transducer.
12.Extra long-life and high-resolution built-in thermal printer.
13.Communicate with central monitoring system by the built-in RJ45.
ntent="" style="background-color:#ddebf6;padding:0 10px;margin:0;line-height:36px;text-align:left;">Specification
Safety
-Type of protection against electric shock: Class 1
-Degree of protection against electric shock: Type B applied part
-Working Voltage: AC 100 V~240 V
-Frequency: 50 Hz/60 Hz
-P<60 VA
-Fuse: T1.6AL250V
Print
-Record paper: Z-fold paper
-Print width: 112 mm
-Valid print width: 104 mm
-Paper speed: 1 cm/min, 2 cm/min, 3 cm/min(optional)
-Network interface: RJ 45
Ultrasound probe of fetal monitor
-Nominal Frequency: 1.0 MHz
-Work Frequency: 1.0 MHz±10%
-Negative peak sound pressure : p_<1 MPa
-Output beam intensity : Iob<20 mW/cm2
-The peak time space peak intensity: Ispta<100 mW/cm2
-The average time space peak intensity: Isata<10 mW/cm2
FHR
-Range: 50 BPM~240 BPM
-Resolution: 1 BPM
-Accuracy: ±2 BPM
TOCO
-Range: 0~100%
-Resolution: 1%
-Nonlinear error: ≤±10%
-RZ way: manual
-Fetal Marking
-Manual button
Accessories
1.A three-in-one Transducers(Ultrasound Transducer, TOCO Transducer, Remote Marker)
2.A User Manual
3.Two abdomen belts
4.An earth line
5.Record paper(two sets)
6.A power cord
7.Two Fuses
Optional:Twin probe,rechargable lithium battery machine(CMS800G1)
ntent="" style="background-color:#ddebf6;padding:0 10px;margin:0;line-height:36px;text-align:left;">Physical Characteristic
-Dimension: 320 mm (L) × 260 mm (W) × 80 mm(H)
-Weight: about 3 Kg
Certificate:
CE
