- Model NO.：
- JR. MG
- Certification：

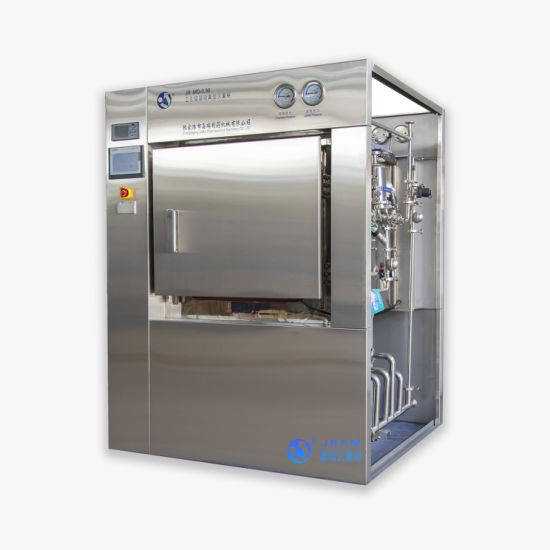

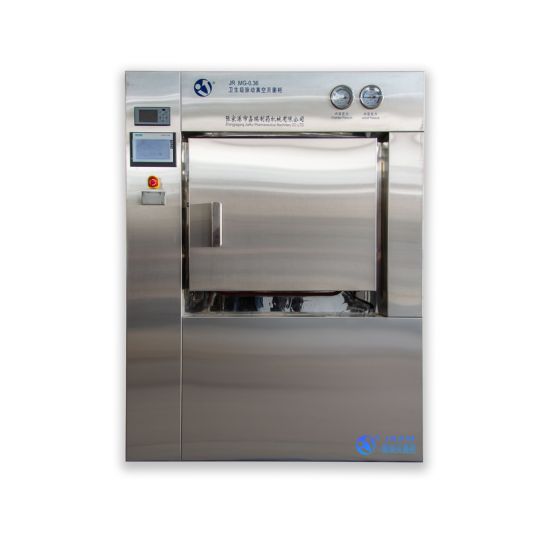

The family of devices using saturated steam as the sterilization medium,clothing,dressings,equipment,media and glassware items for sterilization and dry. The equipment in strict accordance with the national GMP standard reguirements,the whole process of the sterilization temperature, pressurè testing and real-time printing,can be traced throughout the sterilization process. Widely used in the unit of the hospital supply room and operating rooms, pharmaceutical plants,laboratories, scientific research articles for disinfection and sterilization purposes.
Equipment Parameters:
design pressure :0.245Mpa working pressure : 0.22Mpa
design temperature :139ºC working temperature : 60-134ºC
heat equilibrium :≤±1ºC steam source pressure:0.4-0.6Mpa
Water source pressure:0.1-0.3Mpa
Soft water pressure:0.1-0.2Mpa
STUCTURE&CAPABILITY&CHARACTERISTICS

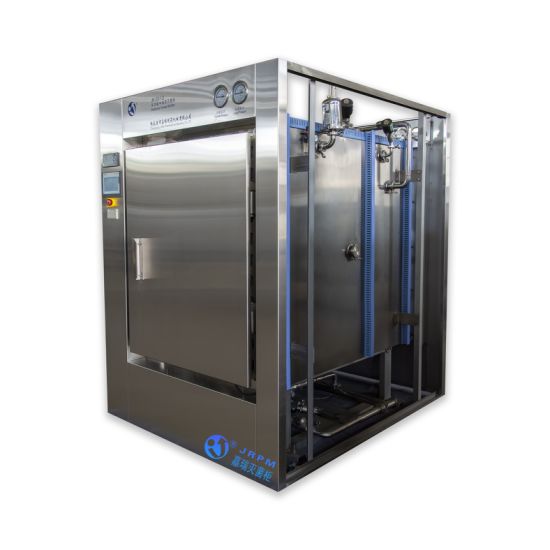

The main body is composed of two inner and outer layers, the inner tank is made of high-quality 304 stainless steel, and the jacket is made of Q345R high-quality special steel plate for pressure vessel, which is automatically welded and formed once. All stainless steel wire drawing board decorative cover. With standard GMP verification interface, it is convenient for users to verify the equipment at any time.
The control system adopts German Siemens PLC, touch screen and micro printer system. The control system is stable and the control temperature is accurate. And have perfect data record, print and save.
The pipeline system adopts the optimal configuration of ASCO pneumatic valve and Nassim vacuum pump.
It can be equipped with pressure maintaining inactivation system and inactivation tank inactivation system that meet the requirements of PIV and PV laboratories.
Equipment procedure includes B.D test procedure.
Specification
Model | Chamber Size L×W×H(MM) | Overall Size L×W×H(MM) | Steam Consumption (KG/CYCLE) | Water Consumption (KG/CYCLE) | Power (KW) | Weight(KG) |
| JR.MG-0.24 | 700×600×600 | 970×1320×1800 | 20 | 150 | 2.5 | 900 |
| JR.MG-0.36 | 1000×600×600 | 1270×1320×1800 | 30 | 150 | 2.5 | 1000 |
| JR.MG-0.6 | 1050×680×850 | 1330×1400×1920 | 35 | 200 | 2.5 | 1200 |
| JR.MG-0.8 | 1400×680×850 | 1680×1400×1920 | 40 | 220 | 2.5 | 1400 |
| JR.MG-1.0 | 1250×750×1100 | 1530×1480×2000 | 45 | 250 | 4.5 | 1500 |
| JR.MG-1.2 | 1500×750×1100 | 1780×1480×2000 | 50 | 300 | 4.5 | 1700 |
| JR.MG-1.5 | 1820×750×1100 | 2100×1480×2000 | 60 | 350 | 4.5 | 1900 |
| JR.MG-1.8 | 2200×750×1100 | 2480×1480×2000 | 65 | 380 | 4.5 | 2100 |
| JR.MG-2.0 | 2450×750×1100 | 2730×1480×2000 | 70 | 400 | 4.5 | 2300 |
| JR.MG-2.5 | 1700×1000×1500 | 2050×1800×2200 | 80 | 450 | 5.5 | 2800 |
| JR.MG-3.0 | 2000×1000×1500 | 2350×1800×2200 | 100 | 550 | 5.5 | 3200 |
| JR.MG-4.0 | 2700×1000×1500 | 3050×2050×2200 | 120 | 650 | 6.5 | 3800 |
| JR.MG-5.0 | 3400×1000×1500 | 3750×2200×2200 | 150 | 750 | 7.5 | 4500 |
Equipment and Technology
Poduct standards in line with international Jiarui this tesponsibility To adhere to international standards as a starting paint, The lntroduction of advanced laser cutting machine,Cnc machining centers and other equipment and technology, established products in the high-precision,high-quality and to meet customers' uniqueneeds with international standards of competitiveness.
Certificate
Business cooperation
Packaging & Shipping
After-sales Service Commitment1, equipment three guarantees of 12 months, lifetime maintenance.
2. Installation and debugging scheme:
3. Service response time:
4 hours response, 24 hours arrangement in place.
5. Maintenance Support:
Provide long-term technical support and service during the service period of the equipment.
6. Guarantee of spare parts
During the service period of the equipment, we promise to supply spare parts at a long-term discount.
