- Model NO.：
- Certification：
- CE, ISO9001
According to your requirements,

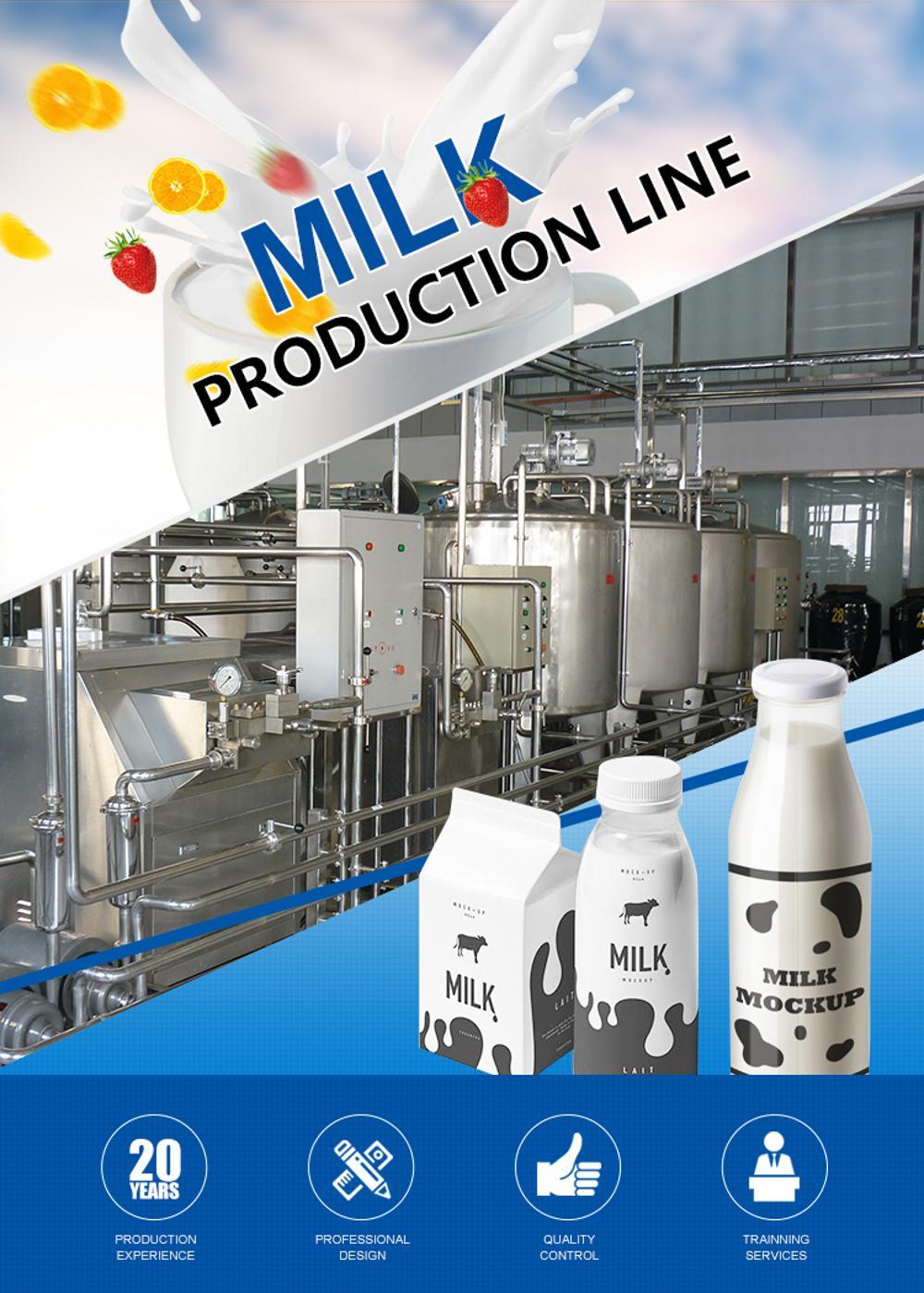

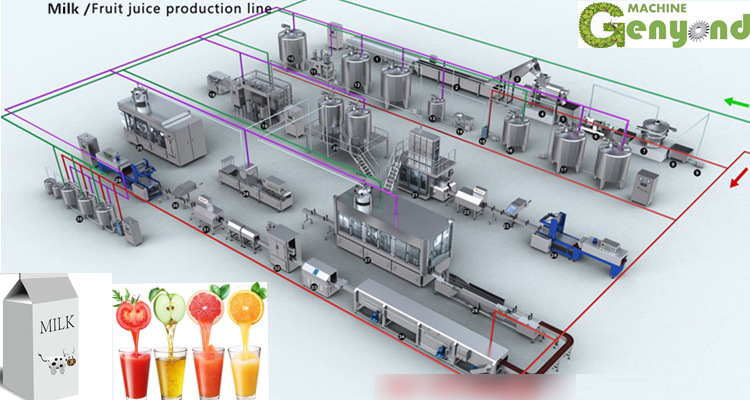

Design planning, production, commissioning and installation of turnkey dairy /juice production line are our strengths!
Core machines:
Cooling milk tank with chiller
Homogenizer
Continuous plate sterilizer/Continuous tubular sterilizer/UHT tubular sterilizer
Filling and Packing machine
(Application Milk,Juice ,Paste,honey ,Powder Various drinks All available)
Production description

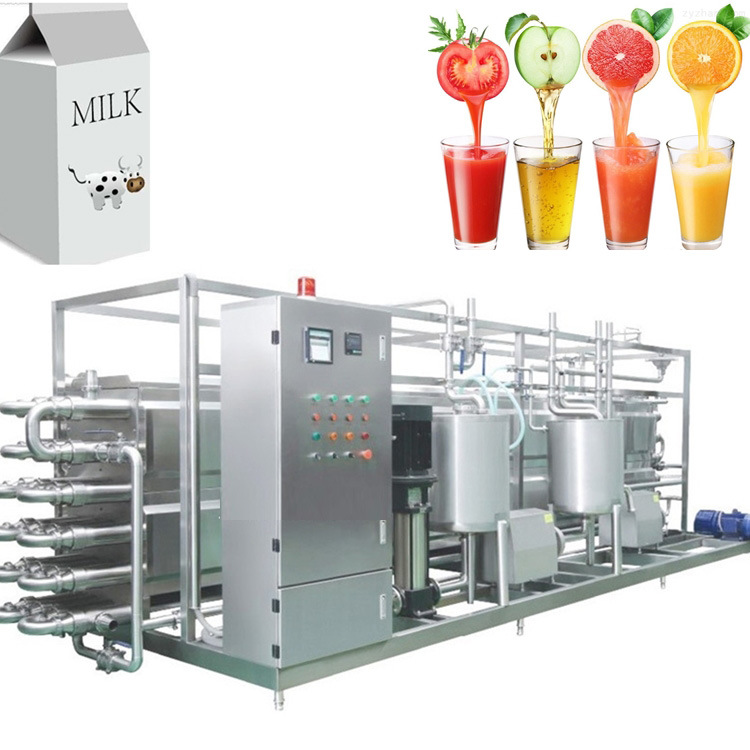

UHT tubular Sterilizing machine
Introduce
This machine adopts the present most advanced welding technology, selects the import high quality polish stainless steel pipeline. It is suitable for fresh milk, beverage and wine etc. If completing with the high-pressure even machine, it also can be used for thick material.
According to the various technology request from customers for heating, sterilization, heat-preservation, coolness of various material, we can design several process combination to meet technology standard and make the equipment has all kinds of safeguard measures, the character of high-temperature alarm and reflux. Meantime, we can am high-accuracy automation control system according to the requirement of customers.
Classification
There are there kinds of sterilized equipments:
plate sterilized machine,
drivepipe sterilized machine
UHT sterilized equipment
Pasteurization Sterilizing machine
Introduce
This equipment is widely used in milk, goat's milk, camel milk and milk pasteurization and cooling.
This device can be configured according to the needs of small scale aseptic filling machine, glass bottles, plastic bag filling machines.
This equipment includes feeding, loop filter, pasteurization and cooling.
The machine adopts electric heating.
Application
Milk, low-temperature meat products, ham, sausage, fruit, fruit juice, vegetable juice, pickles, pickles, salted vegetables, pickled vegetables,mustard, wild vegetables, jams, jelly, soy and other food vacuum flexible packaging hose soft bottle packaging, glass packaging for sterilization.
| Model | Operational Capacity (t/h) | Steam Consumption (kg/h) | Steam Pressure (bar) | Electric Power (kw) | Outside Size (L×W×H) | Weight (kg) | Caliber(Φ) | ||
| Material | Steam | Medium | |||||||
| HH-UHT-XGZ-1 | 1 | 130 | 2.5 | 1.9 | 3.3×1.6×2.0 | 1490 | 25 | DN25 | 25 |
| HH-UHT-XGZ-2 | 2 | 260 | 2.5 | 2.1 | 3.5×1.6×2.0 | 1590 | 25 | DN32 | 25 |
| HH-UHT-XGZ-3 | 3 | 390 | 2.5 | 3.0 | 3.5×1.8×2.0 | 1630 | 38 | DN40 | 38 |
| HH-UHT-XGZ-4 | 4 | 520 | 2.5 | 3.0 | 3.5×1.8×2.0 | 1870 | 38 | DN40 | 38 |
| HH-UHT-XGZ-5 | 5 | 650 | 2.5 | 3.0 | 3.5×1.8×2.0 | 2060 | 38 | DN50 | 38 |
| HH-UHT-XGZ-6 | 6 | 780 | 2.5 | 3.0 | 3.5×1.8×2.0 | 2250 | 51 | DN50 | 51 |
| HH-UHT-XGZ-8 | 8 | 1040 | 2.5 | 3.7 | 4.5×2.0×2.0 | 2500 | 51 | DN65 | 51 |
| HH-UHT-XGZ-10 | 10 | 1300 | 2.5 | 5.2 | 4.5×2.0×2.0 | 2800 | 51 | DN80 | 51 |
| HH-UHT-XGZ-15 | 15 | 1950 | 2.5 | 7.0 | 6.5×2.0×2.2 | 3500 | 63 | DN80 | 63 |
| HH-UHT-XGZ-20 | 20 | 2600 | 2.5 | 11.0 | 6.5×2.0×2.2 | 4300 | 63 | DN1 | |
According to your requirements,
Working Capacity:
50L/H to 30T/H ,design based on client requirement;
Design planning, production, commissioning and installation of turnkey dairy/juice production line are our strengths!Welcome to consult Hot contact:
