Siemens Automatic Control Sterilization Equipment Autoclave Sterilizer Retort

Model NO.：

GT7C 1200

Certification：

Siemens automatic control sterilization equipment autoclave sterilizer retort

Usage of Autoclave
It is widely used in meat products, soybean products, egg products, poultry, fruits and vegetables, tea drinks, snack food processing, pharmaceutical industry and other fields.
1. metal containers
2. Plastic containers
3. Soft bag

Characteristics of Autoclave
1. Semi-automatic computer control the temperature, sterilization time, pressure protection, product cooling.
2. Energy saving and easy to operate.
3. It can use hot water cycle sterilization and steam sterilization.
4. It is suitable for vacuum package, cans, glass bottles, and plastic package, edible and other food.
5. Setting several sterilization processes according to different products.

The technical flow progress of autoclave sterilizer retort can be made integrated designing, in accordance with different requirements of various material heating, sterilizing, thermal preservation and cooling. The retort sterilizer also obtain all kinds of complete protections with highly automatic and steady accuracy control.

Wenzhou Wanyuan Food Mechanical Fatory
Siemens automatic control sterilization equipment autoclave sterilizer retort

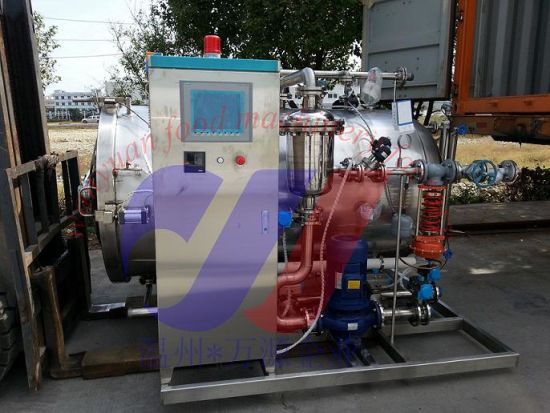

The below is autoclave sterilizer retort:

Model		GT7C 720	GT7C 1200	GT7C 2000	GT7C 2400
Category		Elementary Pressure Vessel
Internal Diameter (mm)		900	1000	1100	1200
Volume( m³)		1.2	2	3.5	4.2
Design Temperature		143 degree C
Working Temperature		123 degree C
Design Pressure		0.3 MPa
Working Pressure		0.15 MPa
Working Medium		watersteamcompressed air
Main Pressure Part Material		SS304
Welding Coefficient		0.7
Corrosion Allowance		1mm
Net Weight(kg)		600	1100	1700	2000
External Dimensions(mm)	length	2100	2800	3700	4000
	Width	1300	1450	1600	1600
	height	1650	1700	1800	1900
