ETO sterilizer for medical devices
HTAJ series large-scale ethylene oxide sterilizer is a kind of low-temperature sterilization equipment: This product is designed by using advanced computer technology, automation technology, welding technology and process on the basis of absorbing the advantages of similar products domestic and overseas.

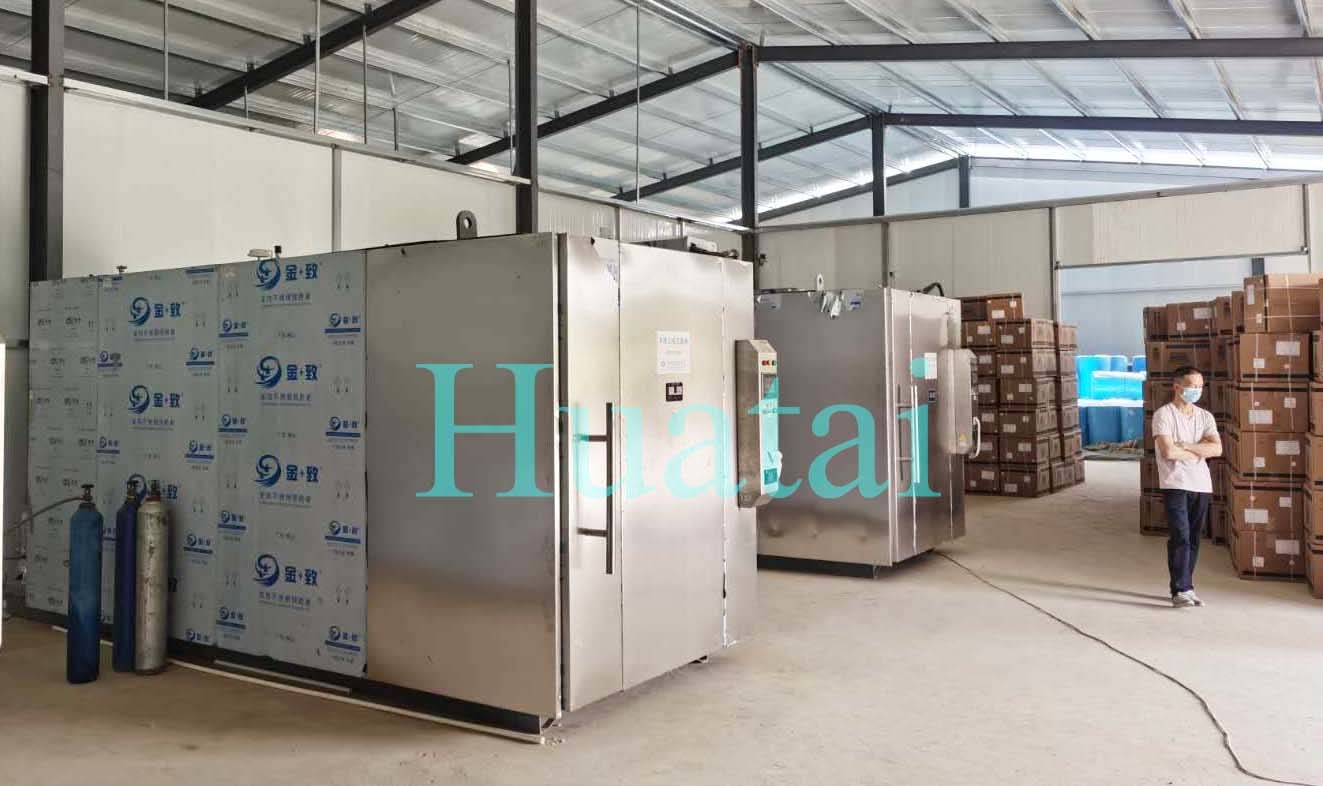

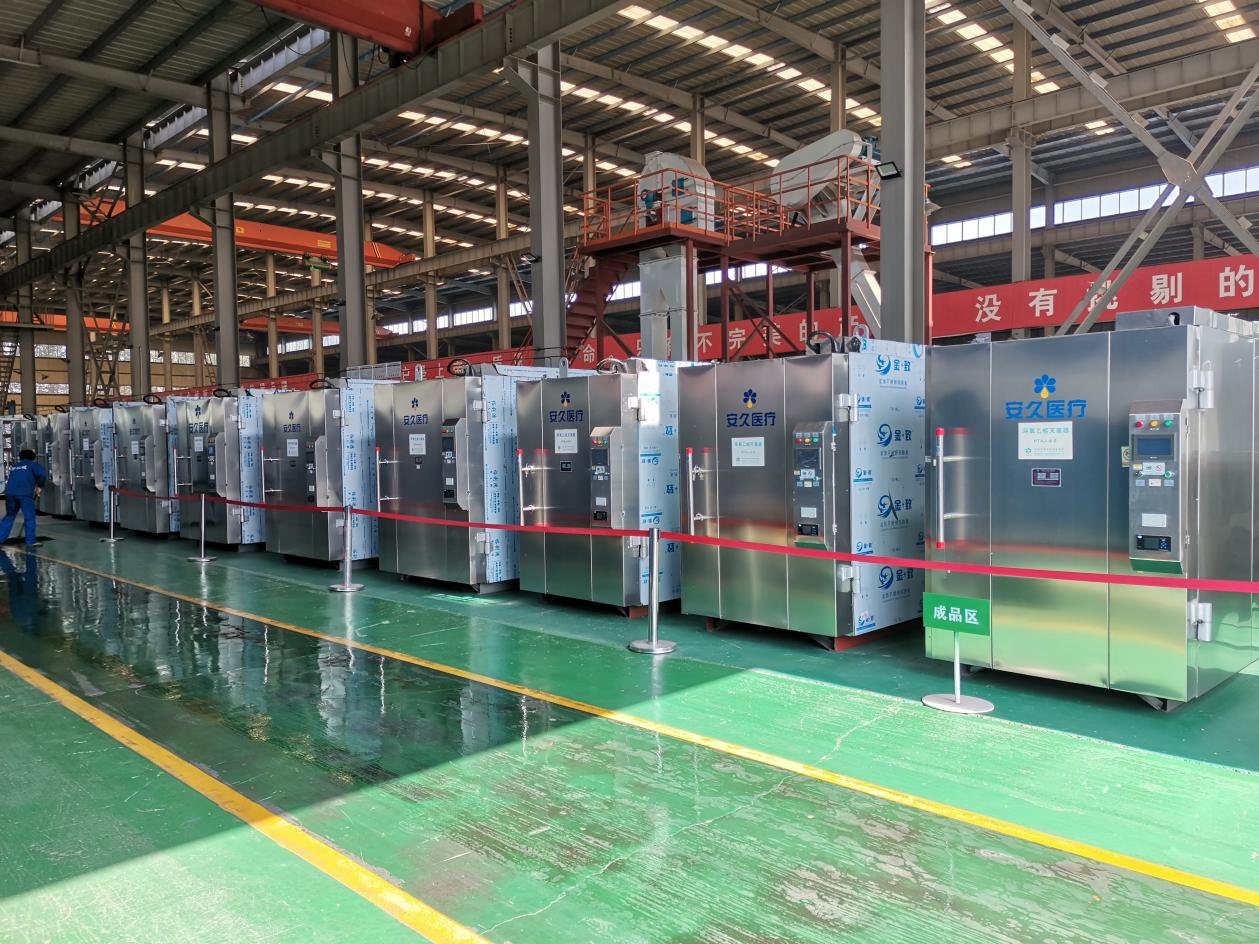

Detailed Photos
HTAJ series ethylene oxide sterilizer is a kind of use of pure ethylene oxide and ethylene oxide mixed gas at a certain temperature, pressure, humidity and-a fixed period of time, for the items enclosed in the sterilization chamber special equipment for low temperature fumigation. Ethylene oxide gas is a very active chemical disinfectant, which can not only achieve broad-spectrum sterilization, but also achieve a reliable sterilization effect.
Different size
| Model | HTAJ-3CBM | HTAJ-6CBM | HTAJ-10CBM | HTAJ-15CBM | HTAJ-20CBM |
| Rated power | 12KW | 18KW | 24KW | 30KW | 35KW |
| Liner size (L*W*H) (mm) | 1700*1200*1500 | 3000*1200*1700 | 4000*1500*1800 | 5800*1500*1800 | 6000*1750*1950 |
| External size (L*W*H) (mm) | 2600*1500*1900 | 3950*1570*2190 | 4950*1870*2350 | 6750*1870*2350 | 6950*2120*2450 |
| Working pressure | -60Kpa~0 | ||||
| Adjustable working temperature | 30ºC~50ºC | ||||
| Working humidity | 30%‐80% | ||||
| Sterilization time | 3-99hours adjustable | ||||
| Material of sterilization room | 304 anticorrosive stainless steel | ||||
| Weight (kg) | 2000 | 3200 | 4600 | 6500 | 8000 |

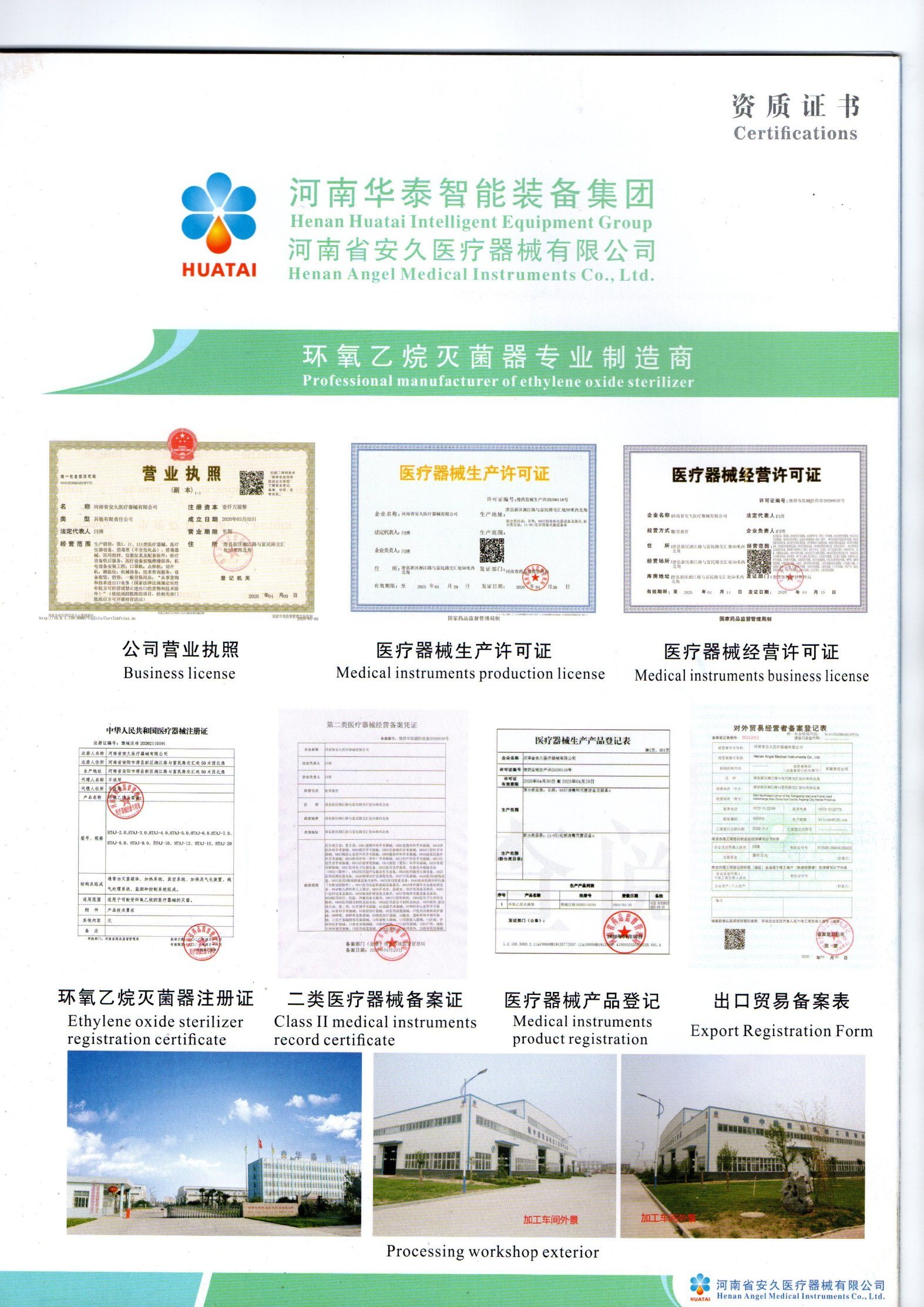

Certifications

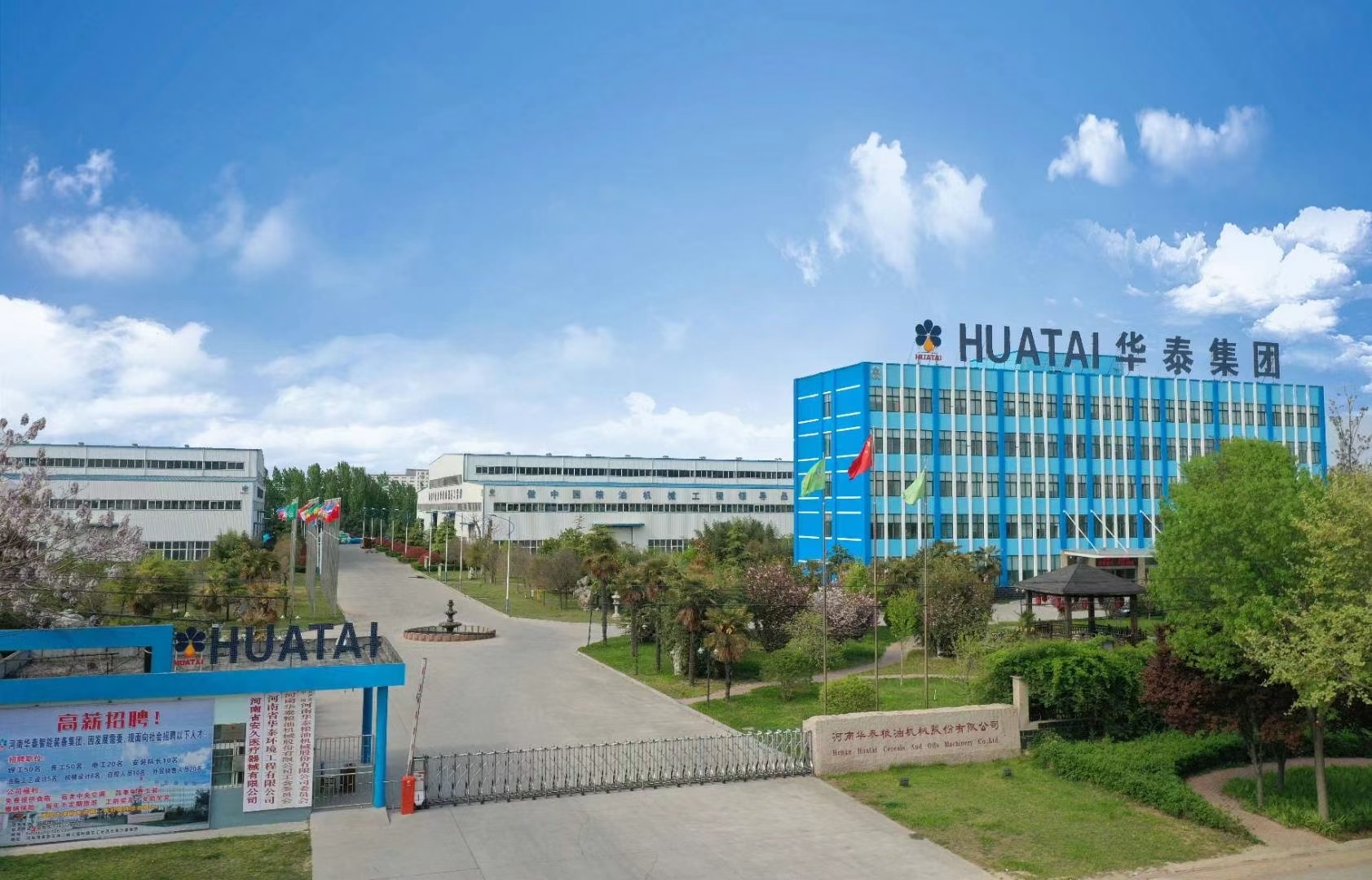

Henan Angel Medical Instruments Co., Ltd. is a wholly-owned subsidiary of Henan Huatai Intelligent Equipment Group. The group is a comprehensive group company integrating R & D, manufacturing, sales and installation of cereals and oils machinery, medical instruments and environmental protection equipment. The subsidiaries of Henan Huatai Intelligent Equipment Group include Henan Huatai Cereals and Oils Machinery Co., Ltd., Henan Angel Medical Instruments Co., Ltd., Henan Huatai Environmental Engineering Co., Ltd., Henan Huazhen Steel Trading Co., Ltd., and Henan Huatai Agriculture Co., Ltd.
