- Model NO.：

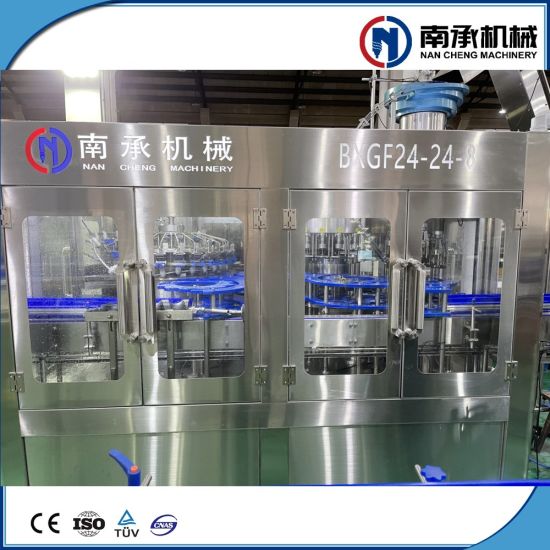

- NC-24-24-8 Glass Bottle Filling Machine
- Certification：
1.This 3-in-1 carbonated drink filling machine has rinser, filler and sealer in one unity, and is mainly used for filling all kinds soft drinks, such as Cola, Sprite, Fanta, Soda drink, etc. With stainless steel constructure, the machines will be corrosion-resistant and durable.
2.It has different models with different heads, producing capacity, could totally customized according to requests.
3.The key components are imported from OMRON, Mitsubishi, Siemens, etc.
4.The advanced programmed controller (PLC) is adopted to control the machine running automatically.
5.It uses frequency changer to control the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.
6.The bottle entry section adopts air conveyor system.
7.The bottle exit section adopts belt conveyor system,which can adjust the speed.
| Model | DCGF16126 | DCGF18186 | DCGF24248 | DCGF32328 | DCGF04010 | DCGF505012 | DCGF606015 | DCGF808020 |
| Filler/Capper heads | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | 80-80-20 |
| Bottle diameter(mm) | Diameter=50-100 H=170 330-1500ml | Diameter= 50-110 H= 160-340 | ||||||
| Production capacity (b/h) 350ml | 2000-4000 | 4000-6000 | 8000-10000 | 10000-12500 | 12500-15000 | 16000-20000 | 20000-24000 | 26000-32000 |
| Filling temperature(Celsius) | 0-5 | |||||||
| Filler type | Balanced pressure filler | |||||||
| Spraying pressure | 0.2-0.25 | 0.2-0.25 | ||||||
| Filling pressure | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
| Motor power | 2.2+0.55+0.12 | 2.2+0.55+0.18 | 3+0.55+0.18 | 5.5+0.55+0.18 | 7.5 | 11 | 15 | 19 |
| Overall dimension(L*W*H)mm | 2300*1600*2500 | 2600*1920*2550 | 3100*2200*2800 | 3850*3000*2850 | 4850*3800*2750 | 5750*3550*2750 | 6500*5500*2750 | 7680*6640*2650 |
| Weight (kg) | 2800 | 3650 | 4800 | 6800 | 8650 | 10500 | 12800 | 15000 |
