The1year
- Model NO.：
- LX-B-75L
- Certification：
- CE, ISO13485

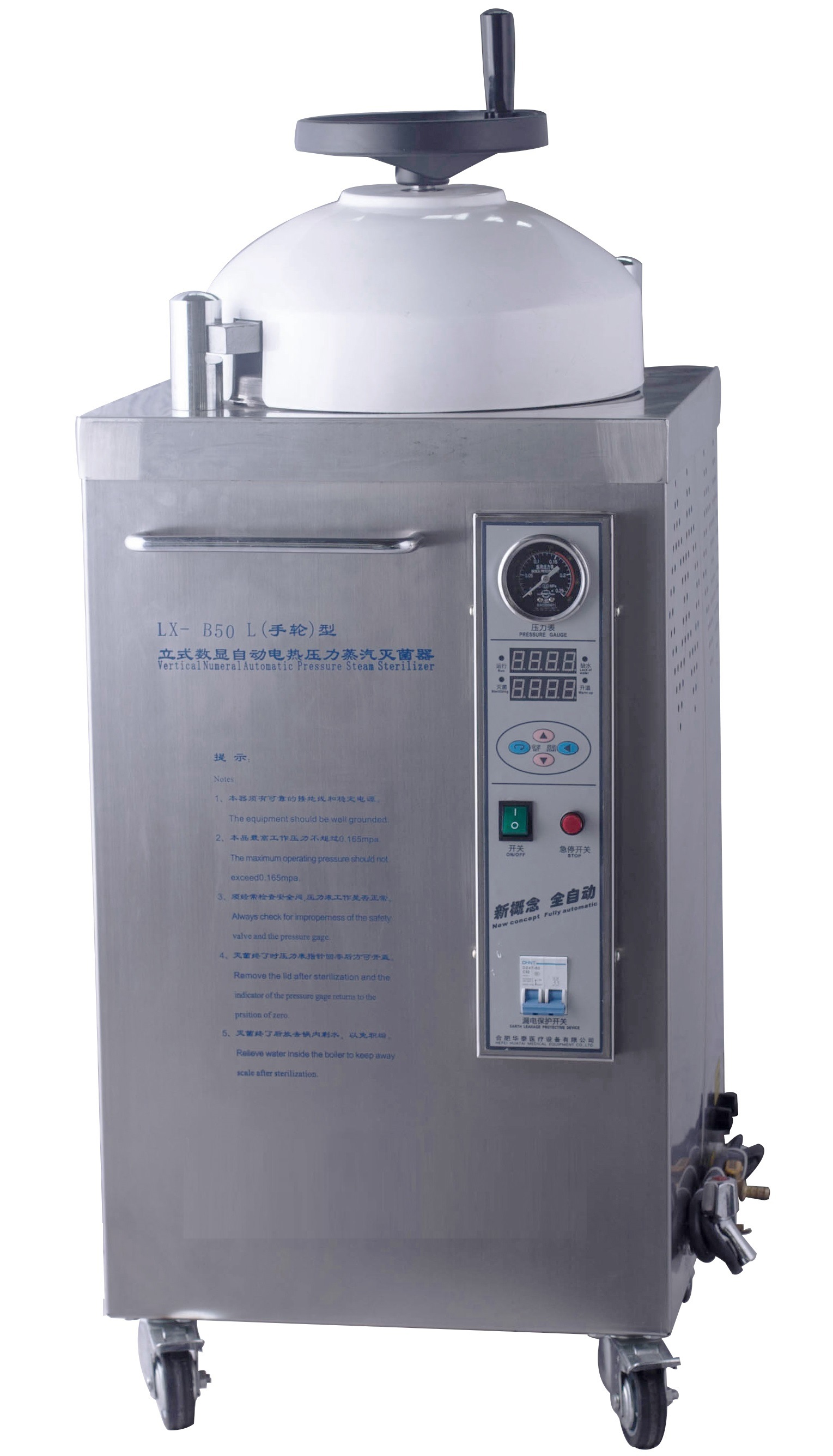

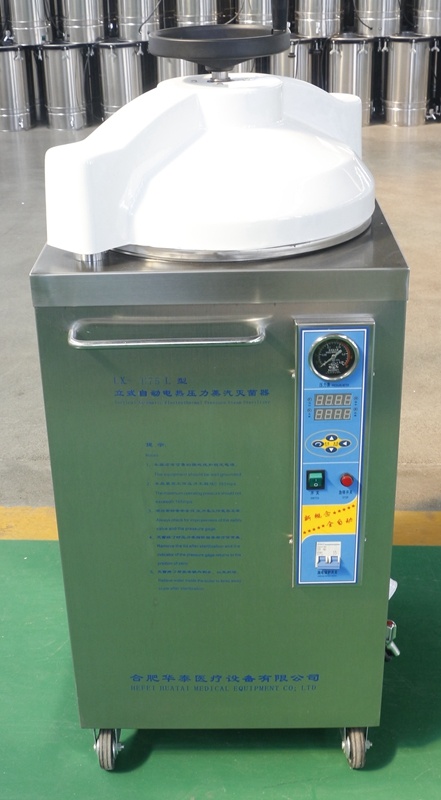

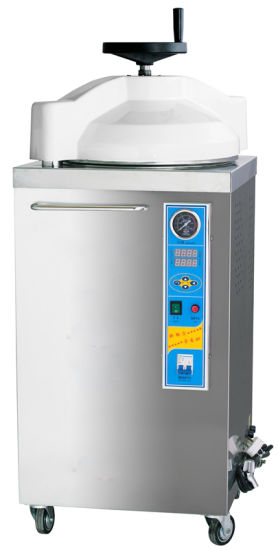

35L/50L/75L Hand Wheel&Digital Vertical Steam Sterilizer
Features
High quality SUS304 stainless steel material
Microcomputer control system, automatic exhaust cold air and finish sterilization process
LED digital display sterilization temperature and time

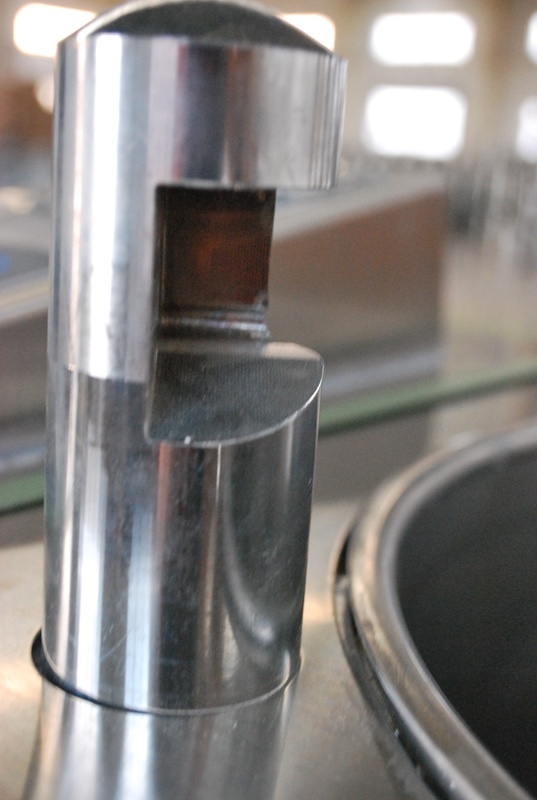

Hand wheel quick open door
Double safety interlocking system :
1) can't open door ifany pressure in the chamber;
2)Machine can't work if door is not close well

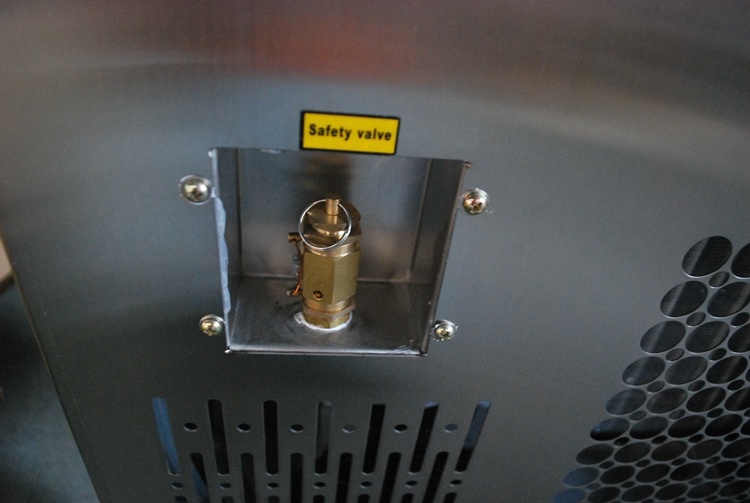

Automatic release when over-pressure
Water shortage and over heating protection
Tempered glass anti-scald protection
Sound-light alarm when sterilization finished
Drying function can be add (best more than 75L)
| Model | LX-B hand wheel&digital | LX-B hand wheel&digital | LX-B hand wheel&digital | LX-B hand wheel&digital |
| Volume | 35L | 50L | 75L | 100L |
| Chamber size | Φ318*420mm | Φ318*530mm | Φ388*480mm | Φ388*630mm |
| Working temperature | 100-134ºC | 100-134ºC | 100-134ºC | 100-134ºC |
| Max Working pressure | 0.22Mpa | 0.22Mpa | 0.22Mpa | 0.22Mpa |
| Time scope | 0-9999min | 0-9999min | 0-9999min | 0-9999min |
| Packing size | 58*60*106cm | 58*58*111cm | 64*62*123.5cm | 62*61*132.5cm |
| G.W/N.W | 60kg/42kg | 67kg/49kg | 91kg/68kg | 96kg/71kg |
| Power | AC220V/50Hz/2.5KW | AC220V/50Hz/2.5KW | AC220V/50Hz/3.5KW | AC220V/50Hz/4.0KW |
