The1year
- Model NO.：
- THR-PS80L
- Certification：
- CE
ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Product Description
Applied range
lt is suitable for sterilizing the heat labile and not damp-resistant surgical instruments,during the gynecological endoscopic surgery,ophthalmic surgery,ear, nose and throat surgery and cardiac surgery,especially for sterilizing various rigid endoscopes. It is widely used in the operating room,the supply room and the other key departments of the medical institutions.

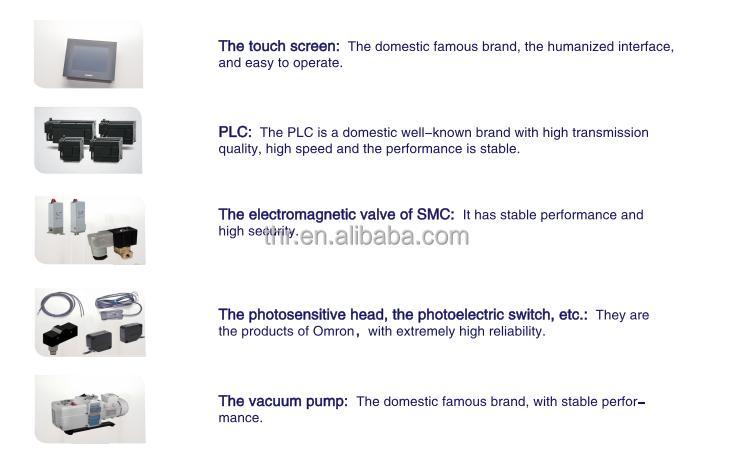

Technical advantages:1.It is controlled by PLC .It has a color touch screen and the function of U disk storage. The performance is stable and the operation is user-friendly.
2.It can accurately measure the injection amount of hydrogen peroxide, the injection amount is adjustable, and the sterilization cost is reduced under the premise of ensuring the sterilization effect.
The single cycle sterilization procedure can effectively sterilize the PTFE hose with the diameter ≥1 mm, the length ≤2000 mm and the stainless steel instruments with the diameter ≥1 mm,the length ≤ 500 mm to ensure the sterilization effect.
3.Single door. It adopts the automatic aluminum alloy sealed door(the type of vertical sliding) with far infrared anti pinch design. When encountering obstacles, it will give an alarm in advance to ensure the safety of personnel under misoperation.
4.The device of hydrogen peroxide purification can fully ensure the sterilization effect in the long and narrow lumen. After sterilization, the product is oxygen and water, no toxic to the environment and the human body,.It is safe and environmentally friendly.
5.The equipment has the function of automatic detection of the system, real-time monitoring of the sterilization process. If any abnormality, the system will alarm and display the cause of the failure automatically, and has the function of automatic failure detection.
ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Product Parameters
| item | value |
| Type | Gas Sterilization Equipments |
| Brand Name | THR |
| Model Number | THR-PS80L |
| certificate | CE |
| Sterilant | 55%-62% hydrogen peroxide |
| Environmental requirementsTemperature | 15~40ºC |
| Humidity | < 80%RH |
| Sterilization time | ≤52 Minutes |
| Capacity | 80L |
| Net weight | 240KG |
| The dimension of the chamber | 450x312x670 mm |
| The voltage | 220V/50HZ 3KW |
| The overall dimension (W×H×D) | 696×1440×923 mm |
ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Related Products
If you are interested in any of them, please contact us for sales!!ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">Packaging & Shipping
Packaging:
-Cartons packaging
-Customized packaging can be available.
Shipping:
- International Express such as DHL, TNT, EMS, Fedex, EMS, etc
- Sea Transportation.
- Air Transportation.
-Choose your own shipping agent is welcomed.
ntent="" style="background-color:#f2f2f2;border-radius:3px;padding:0 10px;margin:0;font-weight:normal;line-height:36px;text-align:left;">FAQ
