- Model NO.：
- JLH425S
- Certification：
- CE, ISO9001: 2000
JLH425S medical gauze weaving machine in best sell :
Features and main technical parameters

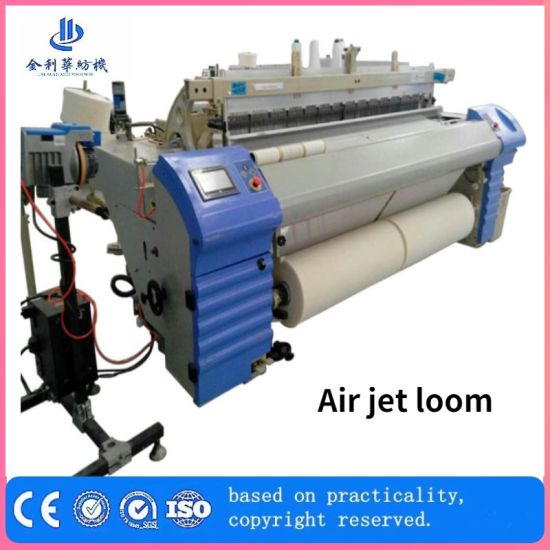

JLH425-1model air jet loom with high quality weaving, running stable, low noise low energy ,save labor ,width range of yam count ,low maintenance cost.
Product purpose
JLH425-1 model air jet loom is that we designed and developed aspecial high speed machine suit for low weft density weaving features .it's a best machine for medical gauze ,tyre fabrics, glial cotton ,dalrib, leather base cloth .
Advantages
JLH425-1model air jet loom with awidth range of weave ,one loom can weave 1pc, 2pcs or 3pcs except medical gauze but also can weave general fabric ,leather base fabric ,yam-dyed fabric and industrial fabric and so on ,the most reed width can reach to 340cm.
Reed width | 135cm,150cm,170cm,190cm,210cm,230cm,260cm,280cm,320cm,340cm,360cm |
| feeder | electronic feeder |
| nozzle | single nozzle,double nozzle |
| shedding | plain/cam/dobby |
| frame | 2pcs/4pcs/6pcs or more |
| Let-off | Mechanical/Electronic | ||||
| Take-up | Mechanical/Electronic | ||||
| Cloth roller | Normal/jumbo package | ||||
| Edge | Selvage edge/tuck-in selvage | ||||
| Gauze fabric type (1pc or 2pc or 3pc at same time) | Cotton yarn count (S) | Warp &Weft density (pick per inch) | Gauze width (inch) | Production (m/day) | |
| 40 x40 | 26x18 | 36"-134" | 730-1200 | ||
| 40 x40 | 16x14 | 36"-134" | 940-1530 | ||
| 32 x32 | 31 x21 | 36"-134" | 620-1020 | ||
| 10 x10 | 40 x20 | 36"-108" | 650-900 | ||
We are TOP 1manufcturer of gauze product making machinery in china , not only gauze weaving machine we are available , but also the whole gauze prodction line we can supply :including warping machine,bleaching machine,gauze machine.
