The1year
- Model NO.：
- JRLS-HG
- Certification：
- CE, ISO13485
Product Description

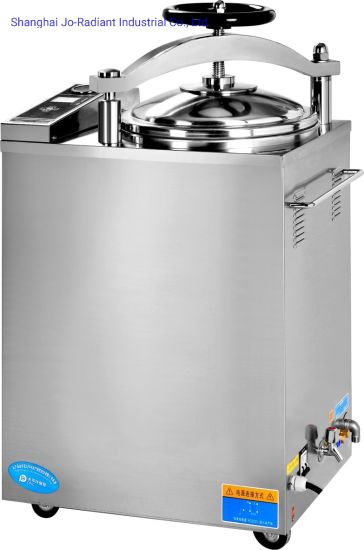

VERTICALPRESSURESTEAM STERILIZER
(AUTOMATIC AUTOCLAVE)
Characteristics:
l.Whole body inner and outer by stainless steel
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Digital display of working status,touch of key
5.Auto-letting off the cool air,and steamdischarging automaticallyafter sterilization
6.Over temperature&over pressure auto-protection
7.Safe protection of water lacking
8.Self-inflating type seal
9.Automatically shut off with beep reminding after sterilization
10.With two stainless steel sterilizing baskets
Technical data:
| Model technical data | JRLS-35HG | JRLS-50HG | JRLS-75HG | JRLS-100HG |
| Valid volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600) mm | 100L(φ440×650) mm |
| working pressure | 0.22MPa | |||
| Working temperature | 134 | |||
| Max working pressure | 0.23 Mpa | |||
| Heat average | ≤±1 | |||
| Timer | 0~99min | |||
| Adjustment of temperature | 0~134 | |||
| Power | 2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz | |
| Overall dimension | 600×410×1030(mm) | 650×410×1140(mm) | 690×470×1140 (mm) | 730×510×1270 (mm) |
| Transport dimension | 730×500×1170(mm) | 730×500×1290(mm) | 760×550×1290(mm) | 820×600×1380(mm) |
| G/N | 96Kg/77Kg | 102Kg/ 83Kg | 120Kg/ 98Kg | 135Kg/ 110Kg |
