- Model NO.：
- BKM-Z24S
- Certification：

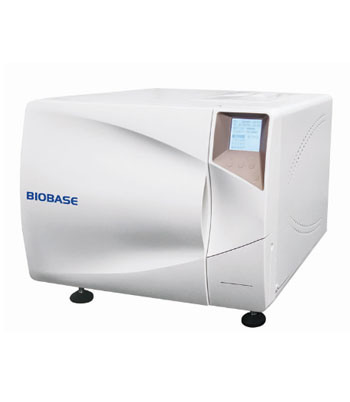

BKM-S series sterilizer is a Class B table top sterilizer. As a type of high pressure sterilizer, it takes steam as its sterilization medium which is fast, safe and economic. They are common used in stomatology department, ophthalmology department, operating room and CSSD to make the sterilization for wrapped or unwrapped instrument, fabric, utensils, culture medium, unsealed liquid, etc.
Features:
Build-inopentypewatertank
a.Easy-cleanopentypewatertank
b.Waterqualitymonitor
c.Waterfilterinside
d.Waterlevelsensor
e.Afullyinjectedwatertankcansupportrepeatedprogramrunning.
Brand-newoperationinterface
TheLCDscreencandisplaytemperature,pressure,time,operatingstatus,errorand alarm information, etc.
Itisconvenientforuserstoobservethesterilizerrunningstatus.
Multiplesecurityprotectivedevice
Over temperatureautomatic protectivedevice,multiplecontrolandprotectionforsteamgenerator,door safetyinterlock protection anddouble chamberoverpressureprotection,electroniccircuitsafetydevice.
Automaticdoor structure
BKM-24/45S seriesadoptautomaticdoorstructure, fast and simple operation, protecting operators from scald.
BKM-80Sseriesadoptmultipointsynchronous linkage pressingtechnology, reliable and durable.
A variety ofprograms
Sterilization programs: Unwrapped. Wrapped. Ruber. User 01, N-quick.
Auxiliary program: Preheat, Washing
Efficiencysteamgenerator
BKM-Z24/45S adopt build-ininstantsteamgenerator.BKM-Z80Sadopt build-inenergy-storingtype steamgenerator producing steam in high speed and goodquantity.
Otherfeature
Heating,sterilization,exhausting,drying totally automatic.
Chamber is heated by film heater, saving energy and time.
Recordtype:built-inprinter(Standard)
Electronicstorage:USBflashdisk(optional)
Product ParametersModel | BKM-Z24S | BKM-Z45S | BKM-Z80S |
Volume | 24L | 45L | 80L |
ChamberSize(mm) | Ф250*450 | Ф316*618 | Ф358*717 |
DesignPressure | -0.1/0.3MPa | ||
DesignTemp. | 144ºC | ||
Temp.Range | 105~138ºC | ||
ChamberMaterial | SUS304 | ||
StandardLoadingTray | TypeA | TypeB | |
PowerSupply | AC110/220V±10%,50/60Hz | AC220V±10%,50/60Hz | |
PowerConsumption | 2.6Kw | 5.8Kw | 7.4Kw |
ExternalSize(W*D*H)mm | 530*660*450 | 640*855*550 | 730*1050*560 |
PackingSize(W*D*H)mm | 720*880*700 | 750*1015*730 | 830*1180*795 |
GrossWeight(kg) | 80 | 140 | 205 |
