- Model NO.：
- HM
- Certification：

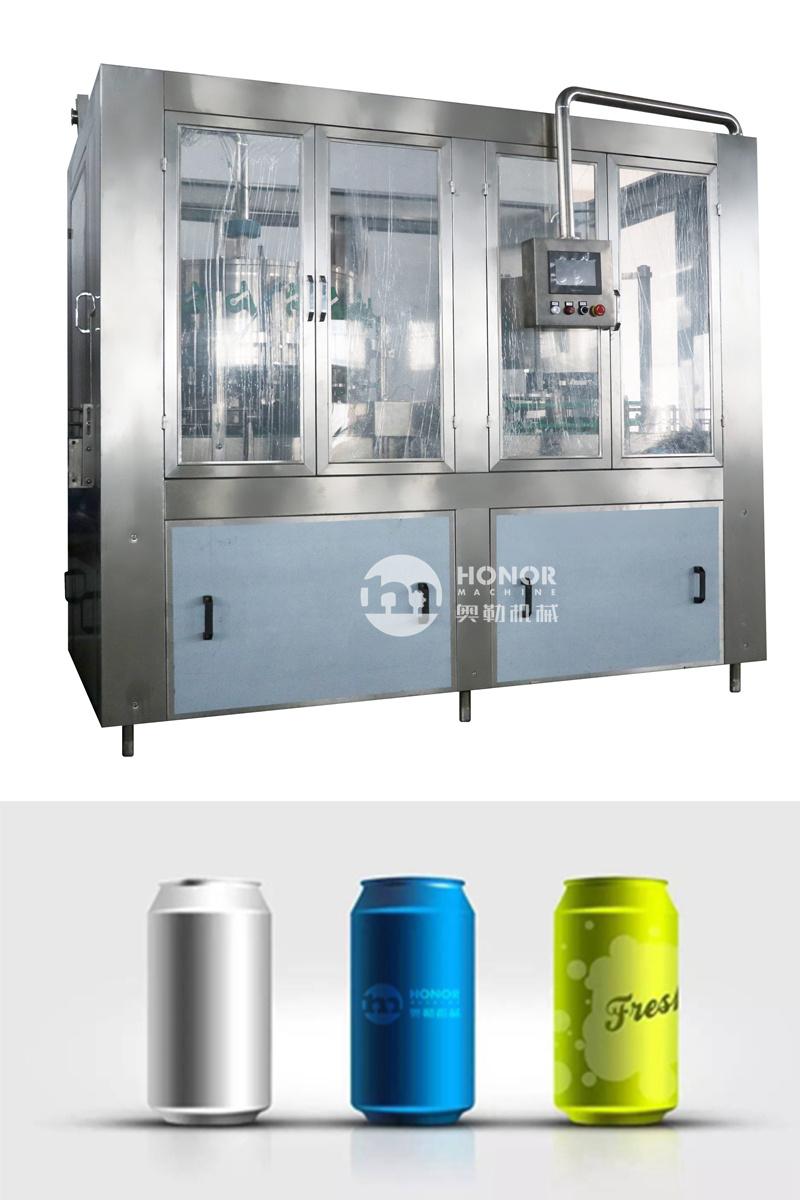

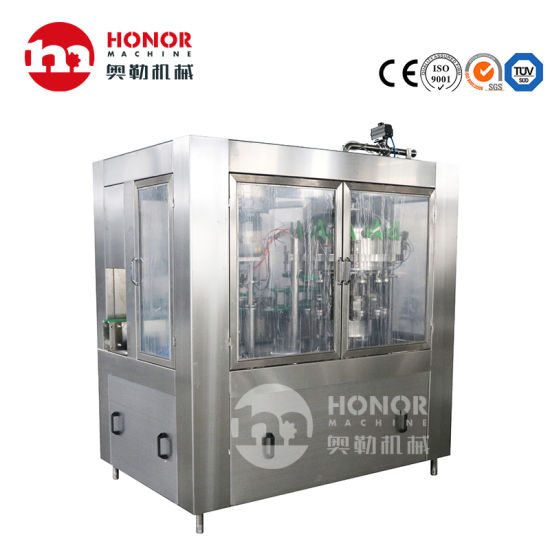

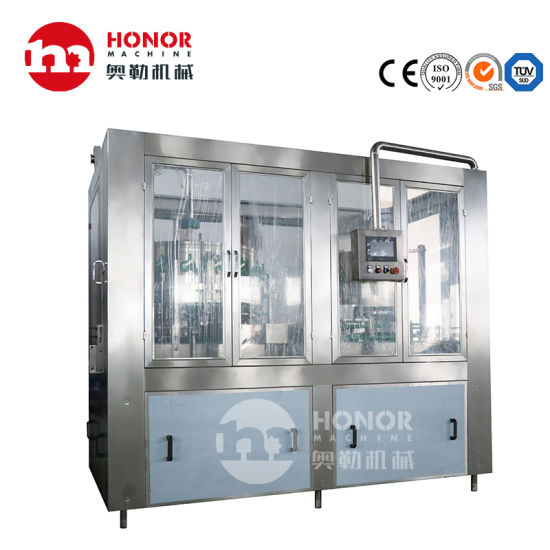

The machine is mainly used for carbonated beverages,beer, Coca-Cola, gas-containing fruit wine etc. It adopts
pneumatic control without tank contact to automatically lower the lid, and adopts Isobaric filling technology. The
production capacity is variable frequency speed regulation, which ensures the beauty and hygiene requirements
of the whole machine. To improve the vacuum in the tank, steam ejector can be equipped according to customer's
requirements, and remote monitoring system can be equipped to ensure maximum technical support to customers.
This equipment is used in the production of medium and large-scale production.
Our company in accordance with domestic large and medium-sized canning factory ,beverage factory the actual
situation ,in the light of switzerland's most advanced sealing ,filling the design and manufacture of similar products
of a new generation of filling ,sealing machine combinations,Contact-free cans of the pneumatic control automatically
covered under the use of liquid filling ,such as technology ,production capacity of frequency control ,95% more than
the appearance of stainless steel materials to ensure that the whole appearance and health requirements ,to improve
the vacuum ,according to customer configuration stam injection device .
Our machine is for carbonated beverage industries ,it have such features as rapid filling and sealing speed ,consistent
height from the liquid level in the can to the can mouth after filling ,stable machine operation ,good sealing quality ,
beautiful and decent appearance ,convenient use and maintenance,touch screen operation ,frequency conversion
speed adjustment ,etc.It is the most ideal filling and sealing device for beverage plants and brew houses.
Main parts list:
| Item | Parts Name | Brand | Brand |
| 1 | PLC | SIEMENS | Germany |
| 2 | Inverter | ||
| 3 | Touch Screen | ||
| 4 | Switch | ||
| 5 | Contactor | ||
| 6 | Relayer | ||
| 7 | Solenoid Valve | AIRTAC | Taiwan |
| 8 | Drive motor | FEITUO | Swiss |
| 9 | Reducer | CNP | China |
| 10 | Water Pump | SKF | China |
| 11 | Main Bearing | AUTONICS | Sweden |
| 12 | Sensor | AIRTAC | Korea |
| 13 | Air component | ABB | Taiwan |

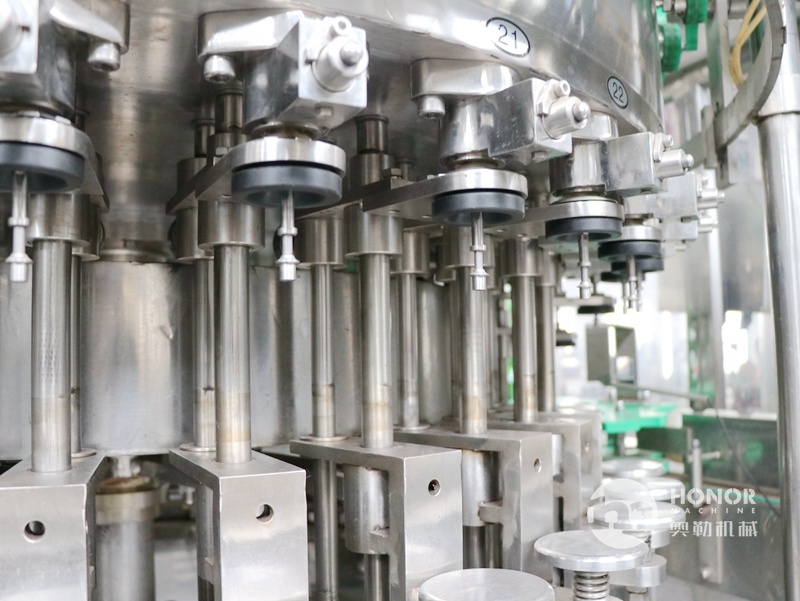

Filling part:

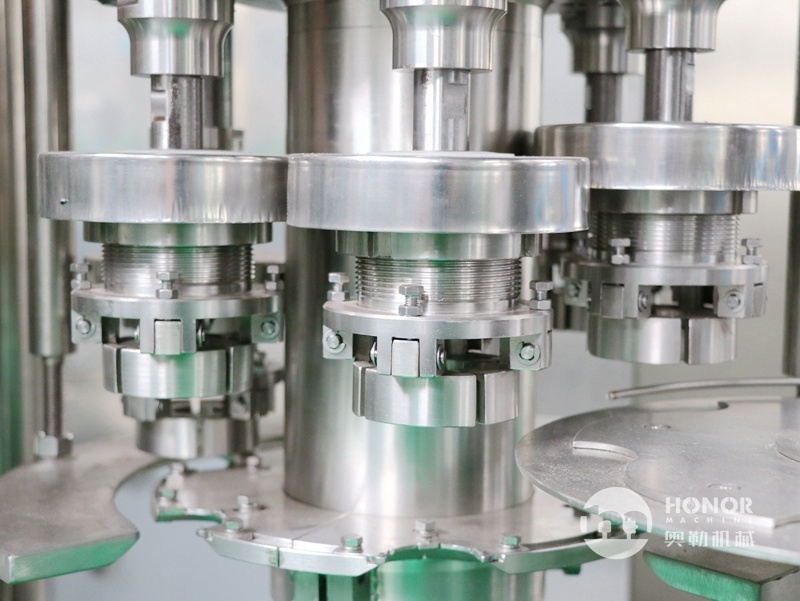

Capping part:
Linear type:
| Model | GD-12 YD-1 | GD-18 YD-6 | GD-24 YD-8 |
| Capacity(500ml/can/min) | 15-40 | 40-60 | 60-80 |
| Power(kw) | 0.55 | 0.75 | 0.87 |
| Overall dimensions(mm) | 810*800*1100 | 930*1050*1550 | 1800*1050*1750 |
| Weight(kg) | 480 | 550 | 650 |
Rotary type:
| Model | GD12-4 | GD18-4 | GD24-6 | GD30-6 |
| Capacity (500ml/can/min) | 80-120 | 120-150 | 150-250 | 240-300 |
| Can apply to high(mm) | 65-190mm(Special height can be customized) | |||
| Filling temperature | 0-4ºC | |||
| Motor power(kw) | 5.5 | 6.5 | 7.8 | 8.5 |
| Overall dimensions(mm) | 2800*1600*2000 | 3000*1700*2000 | 3200*1800*2000 | 3500*1950*2000 |
| Wight(kg) | 3000 | 4000 | 4800 | 5200 |
