The1year
- Model NO.：
- DP-600
- Certification：
- SGS
It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting, entirely broken and partially broken electronic materials.
Model: DP-360 a4 sheet cutter
Max Feeding Width ( mm ): 360
Main Engineer Power ( w ): 150
Speed ( t/m ): 110
Size ( mm ): 900*800*1400
Weight ( kg ): 300
Precision ( mm ): ± 0.10
Power: 380V 50Hz
Feature:

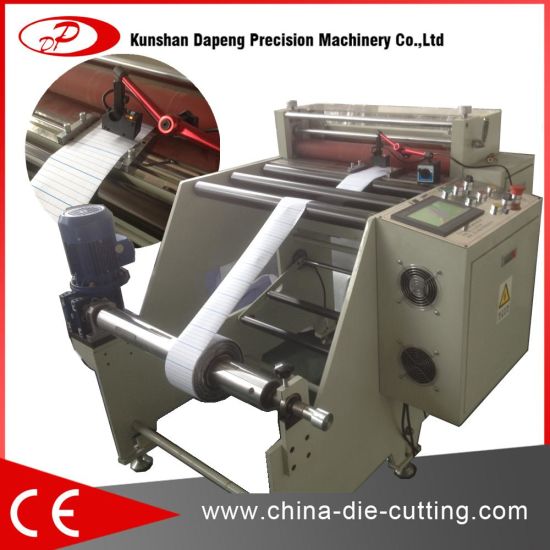

This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting , equipped with automatic unwinding system and air shaft, which will be easy to load and unload.
Application:
Sizing cutting for aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form.
Optional:
·static electricity eliminator · Conveyor belt
Main technical parameters:
| Model | 600 paper cutting machine price | 500 paper cutting machine price |
| Max Feeding Width ( mm ) | 600 | 500 |
| Main Engineer Power ( w ) | 1000 | 400 |
| Speed ( t/m ) | 110 | 110 |
| Size ( mm ) | 1900*1200*1300 | 1200*900*1280 |
| Weight ( kg ) | 800 | 400 |
| Precision ( mm ) | ±0.10 | ±0.10 |
| Power | 380V 50HZ or 220V | 220V 50HZ or380V 50HZ |
Main functions of belt cutting machine:
Feed material and return material by pressing the button on touch screen
Preset total cutting quantity
Preset cutting length
Preset cutting speed
Preset cut quantity each time ( applied for hot cutting)
Flash cutting quantity finished
Half cut-off with multi-cut
Full cut-off with one-cut
Five different cutting length can be set
Different cutting quantity and circulation time can be set
Return to ZERO
After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
