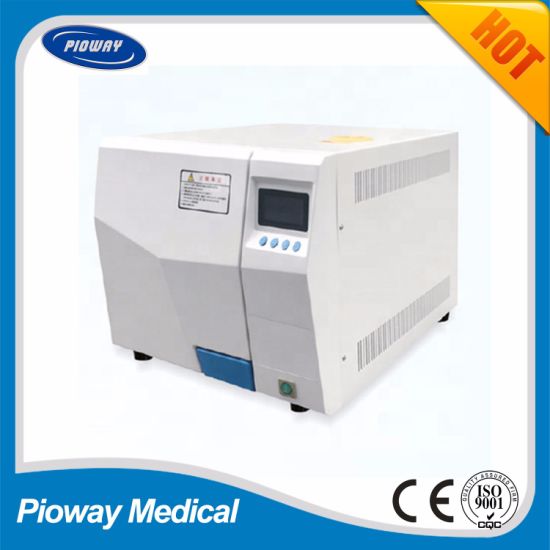

- Model NO.：
- TM-XD24DV
- Certification：
- CE, EEC, ISO13485
Characteristics
1.Standard Class B with three times vacuum and drying, the remaining temperature of sterilizer instrument is less than 0.2%.
2.LCD display working status, touch keys.
3.The vacuum data can reach -0.8bar, it fits various instrument,including package,unpackage,solid,hollow,multi-apertures and inset pipes.It makes sure the instrument can be sterilized completely.
4.Fully computer controlled LCD display bright show.The interface is modularized panel for easy operation.
5.It is installed with BOWIE&DICK which measures the penetration of water steam.
6.It has vacuum test which can make sure the ability of vacuum testing.
7.Fast and independent steam generator.
8.Built-in mini printer which can record the sterilizing information.
9.Equipped with Safety valve,Safety lock door ststem,Pressure lock system,Pressure or temperature overload protection,Alarm system.
10.It inactivates the HIV,HBV,BSE,and bacillus efficiently.
Different Models
| MODEL TECHNICAL DATA | TM-XD20DV | TM-XD24DV |
| Sterilizing chamber volume | 18L(φ250×360 mm) | 24L(φ250×470 mm) |
| Working pressure | 0.22Mpa | |
| Working temperature | 134ºC | |
| Adjustment of temperature | 105-134ºC | |
| Timer | 0-99 min | |
| Heat average | ≤ ± 1ºC | |
| Power | AC220V 50Hz/2KW | AC220V 50Hz/2KW |
| Dimension | 560×470×400 mm | 675×470×400 mm |
| Exterior package dimension | 655×560×495 mm | 765×560×495 mm |
| G. W/N.W | 52/47 kg | 58/53 kg |
