- Model NO.：
- KLD-Microwave Drying and Sterilization Machine
- Certification：
Product Description

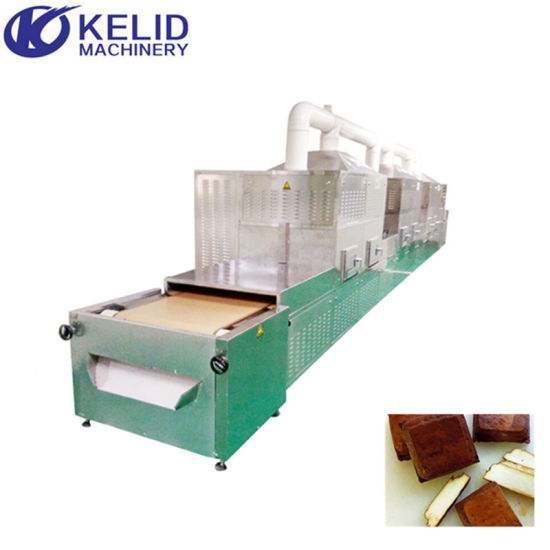

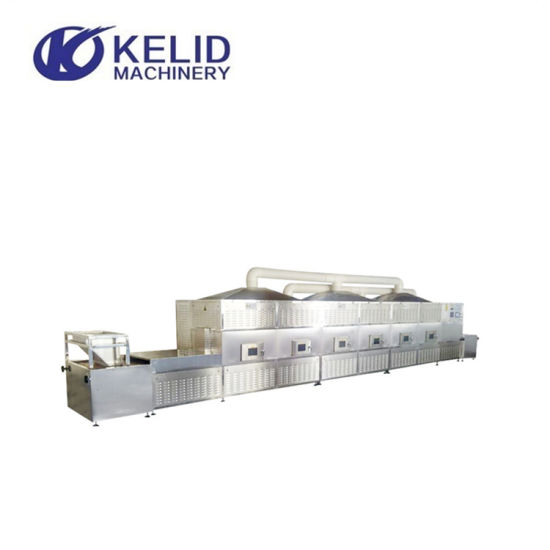

Microwave Drying Equipmentis an intelligent highly automatic machine which can dry materials in a short time and keep most of the original nature. Materials are dried by microwave, causing no carbon emission or poison waste, it's a safe and clean equipment.
Microwave Drying Equipment Features:
1.Fast drying speed, drying evenly
2.Good product quality
3.Automatic thermal balance performance
4.Responsive and easy to control
5.High producitvity

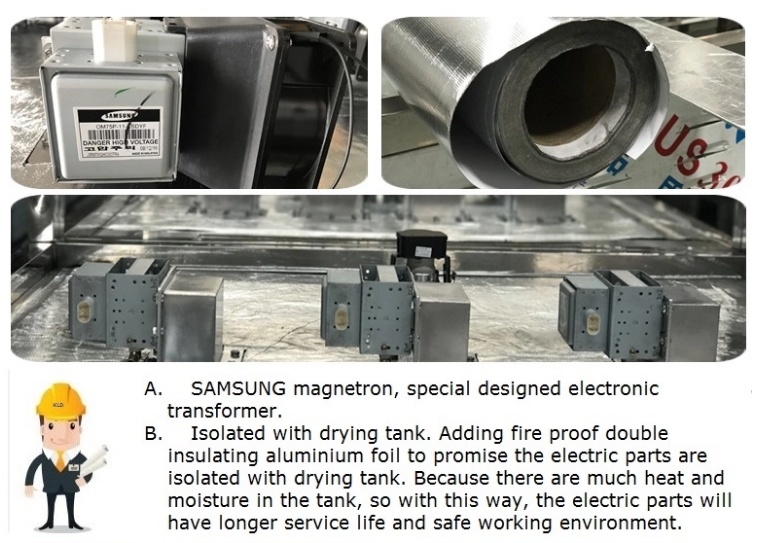

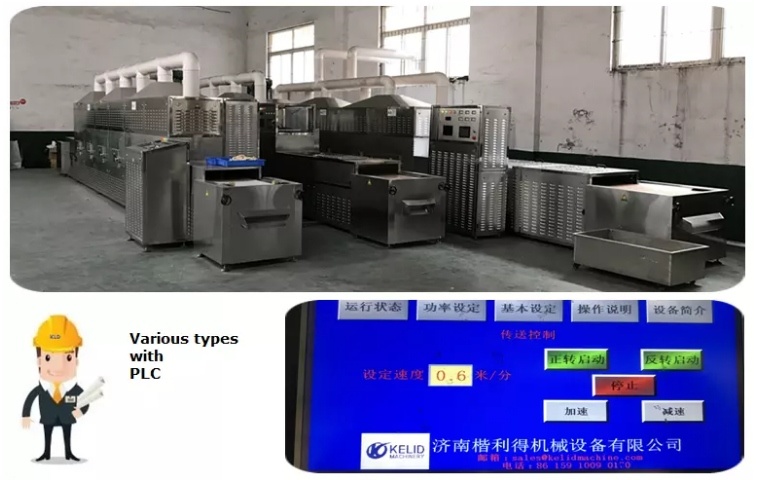

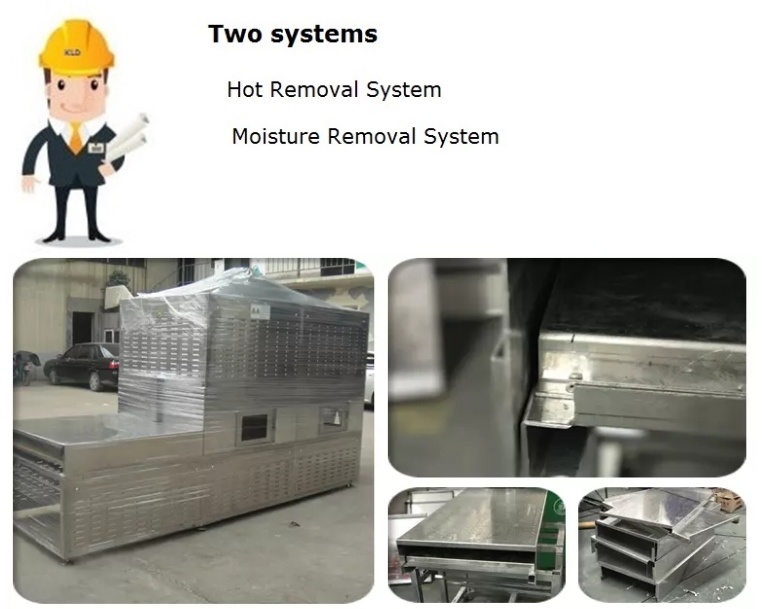

Details
Technical equipment
Equipment Model | KLD-Microwave Drying Equipment | KLD-Microwave Drying Equipment |
Operating frequency | 2450±50MHZ | 2450±50MHZ |
Rated inputapparent power | ≤60KW | ≥120KW |
Microwave output | ≥50KW | ≤110KW |
Temperature | 30-100ºC(controlled) | 25-80ºC(controlled) |
Type of cooling | Water-Cooling/Air cooling | Water-Cooling/Air cooling |
Inlet and outlet height | 40-100mm | 40-100mm |
Height of conveyor | 600-1000mm | 600-1000mm |
Tranmission speed | 0~10m/min(adjustable frequency) | 0~10m/min(adjustable frequency) |
Dehydration Rated | 40-50KG/hour | 40-50KG/hour |
Contour dimension | 12500mm*1600mm*2200m (customized) | 12500mm*1600mm*2200m (customized) |
Width of conveyer belt | 750±100mm(customized) | 1000±100mm(customized) |

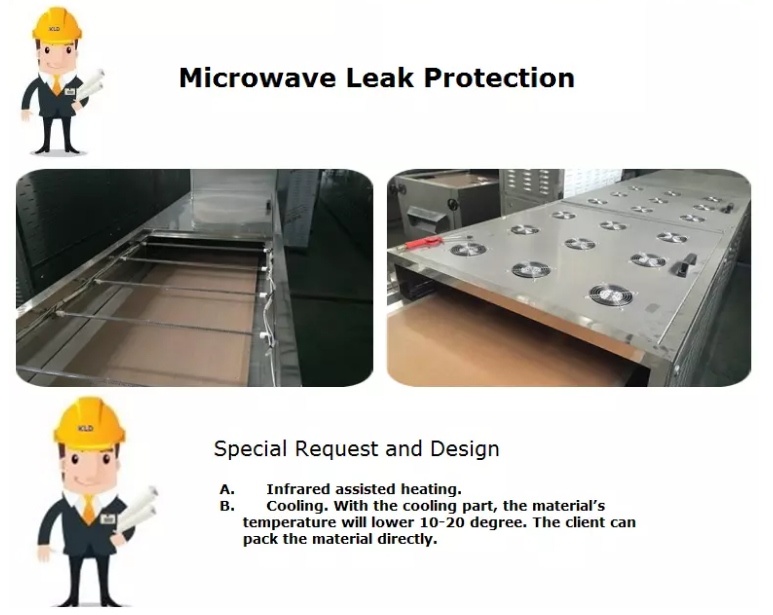

Microwave leakage standard | ISO≤5mw/cm² | ISO≤5mw/cm² |

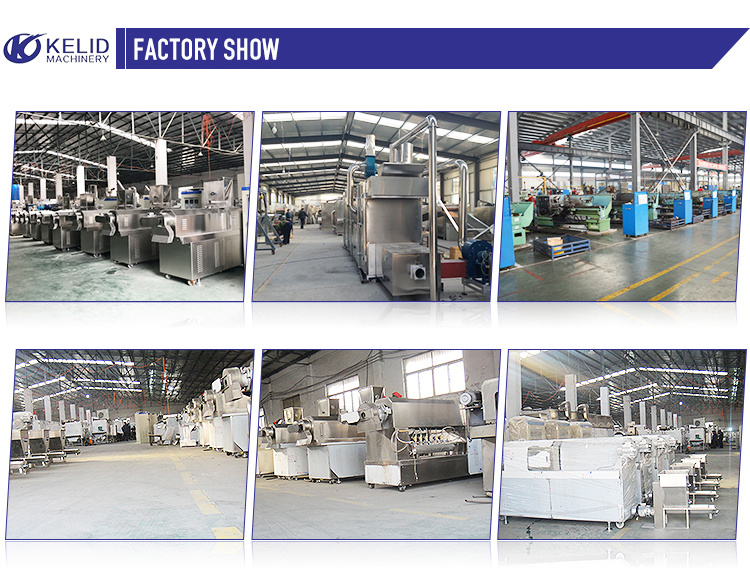

Company Information
PackingShipping
Packing:
Inside: plastic bag.
Outside: wooden case (adopt the wooden case or wooden pellets depended on clients' requirement).
Shipping:
Train, express, or upon clients' demands
.
Service & customers
Certificate
Contact us
Any inquiry or question, feel free to contact me! I will reply you as soon as I can!
