Product Description
Application | Domestic/ Commercial /Industrial use Drainage of sewage from the building basements, hotel, etc |
| Operating Conditions | Submersible depth: 5m Liquid temperature up to+40°C Ambient temperature up to+40°C Max working pressure: 6 bar Passage of suspended solid up to 35mm |
| Motor | 2-pole induction motor Insulation: Class E Protection: IP X8 Single-phase with capacitor and thermal overload protection Three-phase from 0.75kW to 2.2kW with thermal overload protection |

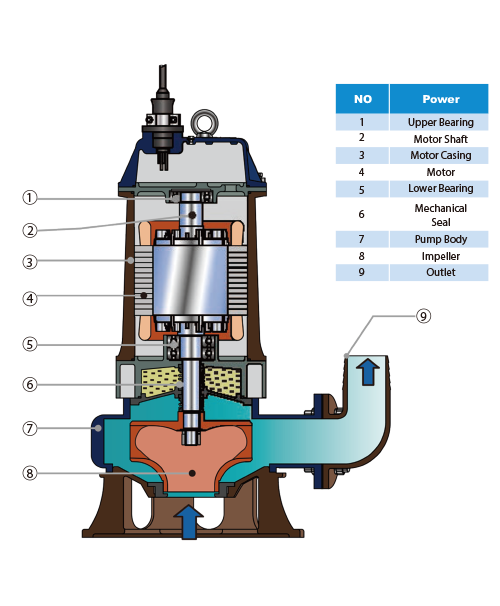

| Material | Pump body: Cast iron Motor bracket: Cast iron Impeller: Cast iron Motor shaft: SS420 Mechanical seal: Ceramic-Graphite,Silicon Carbide-Carbide alloy Copper winding |
