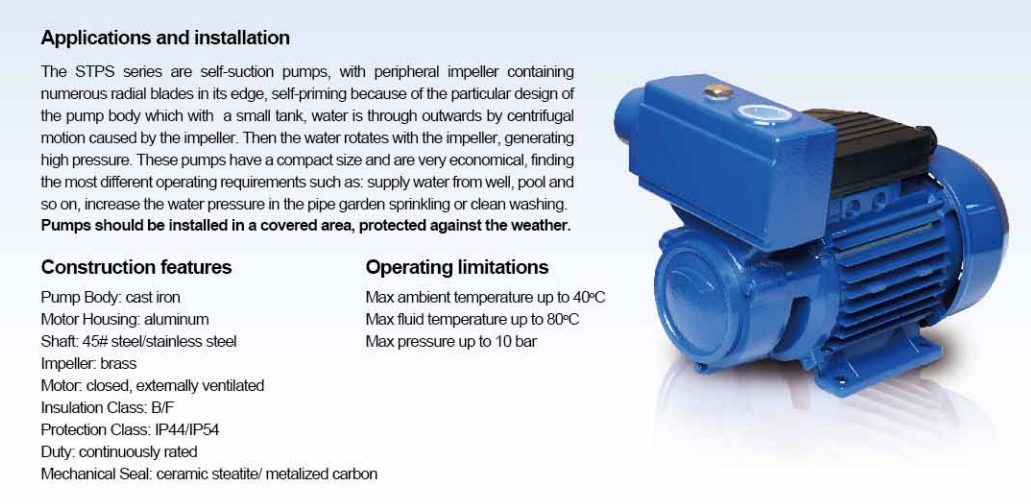

Applications and Installation
The STPS series are self-suction pumps, with peripheral impeller containing numerous radial blades in its edge, self-priming because of the particular design of the pump body which is with a small tank, water is threw outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller, generating high pressure. These pumps have a compact size and are very economical, finding the most different operating requirements such as: supply water from well, pool and so on, increase the water pressure in the pipe garden sprinkling or clean washing.
Pumps should be installed in a covered area, protected against the weather.

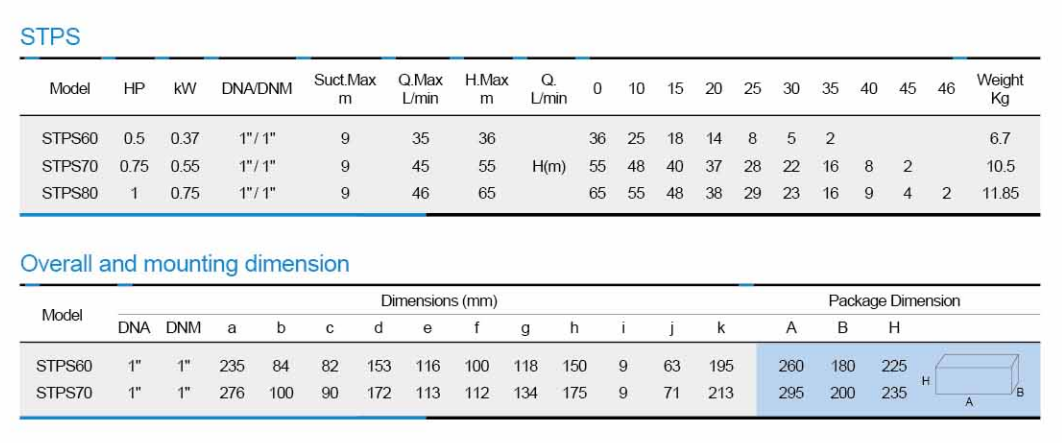

Specification
item | value |
Warranty | 1 year |
Customized support | OEM, ODM, OBM |
Brand Name | Stream |
Model Number | STPS series |
Place of Origin | China |
Application | water supply |
Power Source | Electric |
Pressure | Low Pressure |
Structure | Single-stage Pump |
Pump body | cast iron |
Motor Housing | aluminum |
Shaft | 45# steel/stainless steel |
Impeller | brass |
Insulation class | B/F |
Protection class | IP44/IP45 |
Mechanical seal | ceramic steatite/metalized carbon |
Certificate | CE / ISO 9001 / SGS |
