SHF6A Electric Centrifugal Water Pump For Agricultural Irrigation
centrifugal water pump
electric water pump
pump for agricultural irrigation
If you want more info about this series product, pls try to directly enter into our website http://www.streampumps.com/ for more details,or mail us locking for more information.
Applications and installation
The SHF series centrifugal water pumps are specifically designed to achieve high delivery rates with low to medium heads for industrial and agricultural uses.
Their volute impeller makes it able to pump water that is even fairly dirty. High delivery rates under continuous or heavy duty, making them advantageous for rain and gravity irrigation, for pumping water from lakes, river, well and for a wide variety of other applications, etc.
Pumps should be installed in a covered area, protected against the weather.
Construction features
Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45# steel/stainless steel
Impeller: brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon
Operating limitations
Max ambient temperature up to 40 ℃
Max fluid temperature up to 80 ℃
Max pressure up to 10 bars

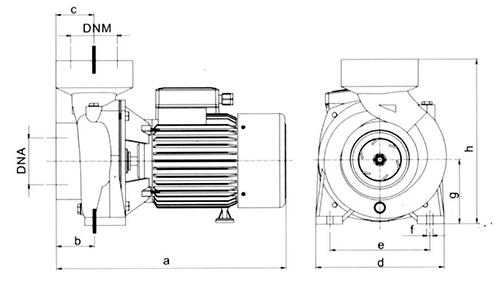

Structure Diagram

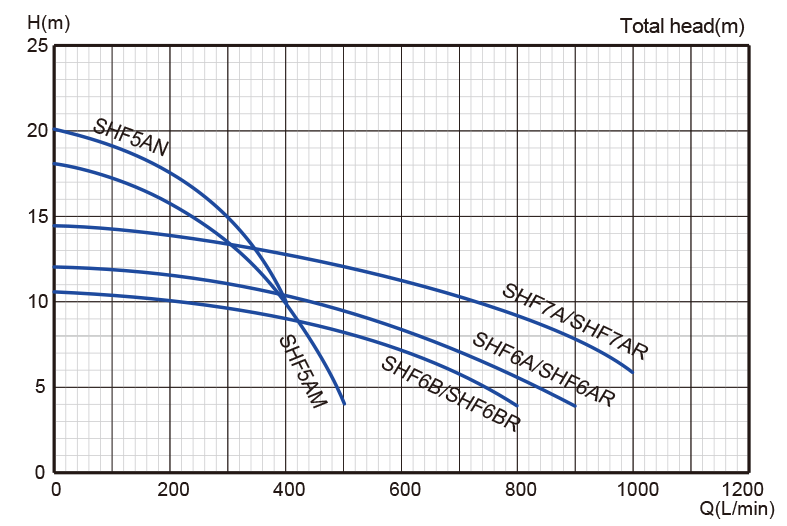

The Graph

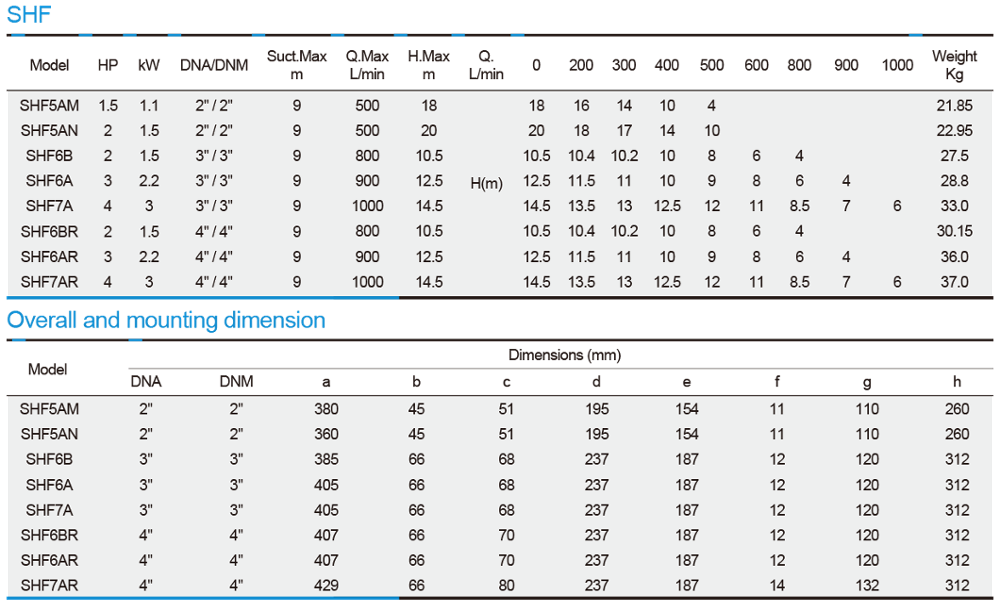

Performance Data
