Connecting Rod & Bearing Bushes

AUTO ENGINE PARTS FORGED 4340 H-BEAM ConNECTING ROD WRX 2.0L EJ20 2.5L EJ25 EJ22 SET OF 4 WITH BOLTS

Product Details

Product Description

Center to Center Length: 155.58mm/6.125"
Big End Bore Diameter: 56.512mm/2.225"
Big End Width: 23.9mm/0.941"
Small End Bore Diameter: 23.561mm /0.927"
Small End Width: 26.95mm/1.061"

Beam Style: H-beam

Connecting Rod Bolt Diameter: 7/16"-1.600"
Approximate Weight: 660g/piece
Advertised Horsepower Rating: 1000hp
Quantity: Sold as 8 Pieces/set
Material: Forged 4340 Steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze Wrist Pin Bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap Screw

APPLICATION:

Engine: Chevy GM 305/350/400

H-Beam CHEVY GM 350 6.125" Conrods Description:
Those Chevy GM 350 6.125" connecting rods are manufactured from 4340 forged steel/40CrNiMoA/EN24 material, 100% CNC machined, and each rod is bronze bushed for full floating application.

ITEM INCLUDE:

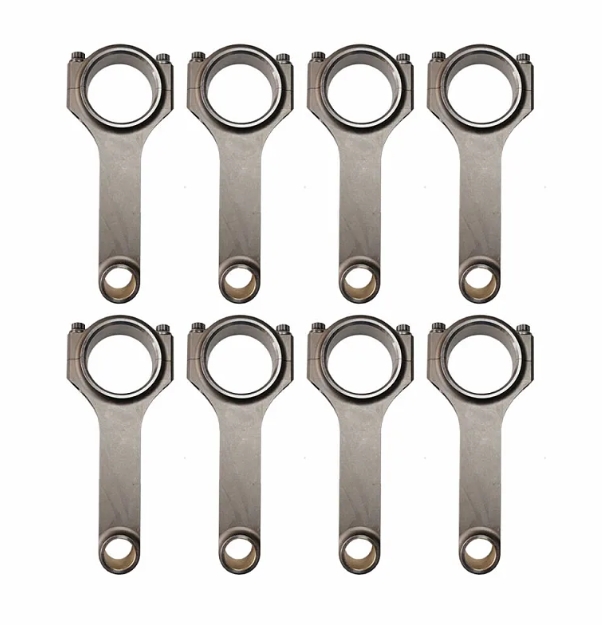

8 PIECES OF FORGED H-BEAM ConNECTING RODS WITH BOLTS
