Product Description
| Performance Range | Max.Flow: 20m³/h Max.Head: 28m |

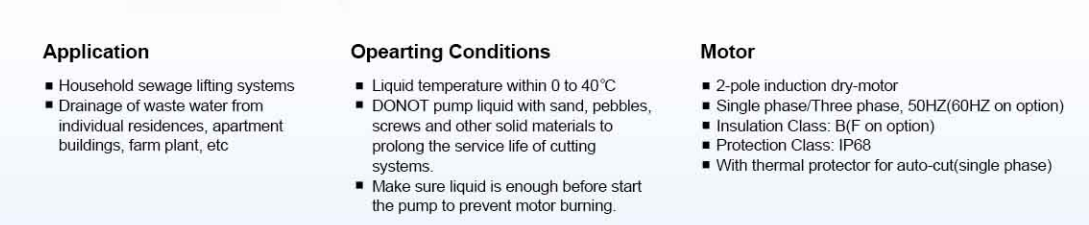

| Application | Domestic/Commercial/Industrial use Drainage of wastewater from individual residences Apartment buildings, recreational developments To transfer various wastewater and sewage |
| Operating Conditions | Liquid temperature up to +40°C Ambient temperature up to +40°C PH: 4~10 Maximum liquid density: 1.2x10³kg/m³ Max working pressure: 6 bar Submersible depth: 0.5~5m |
| Motor | 2 pole induction dry motor Single-phase/Three-phase 50Hz Insulation: Class F Proctor: Auto-cut With capacitor and thermal overload protection |

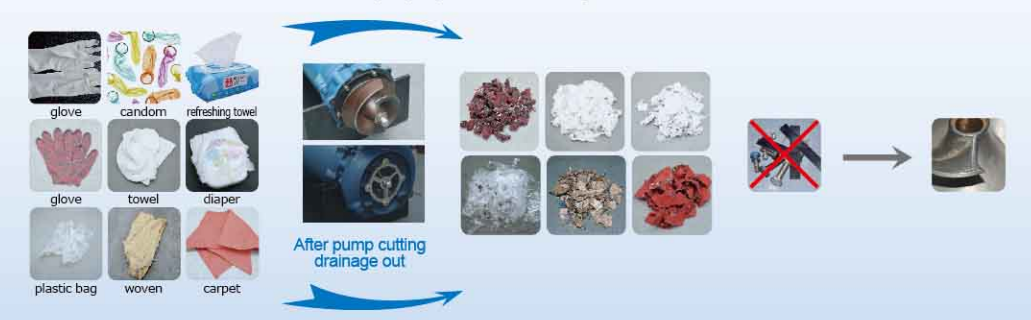

| Adantages and Features | Bearing: ball type NSK Stainless steel shaft extension, carbide double-sides mechanical sealing The SWQ-SC Series can cut up the objects The SWQ-C series can select and match the water leakage festival or the flange |
