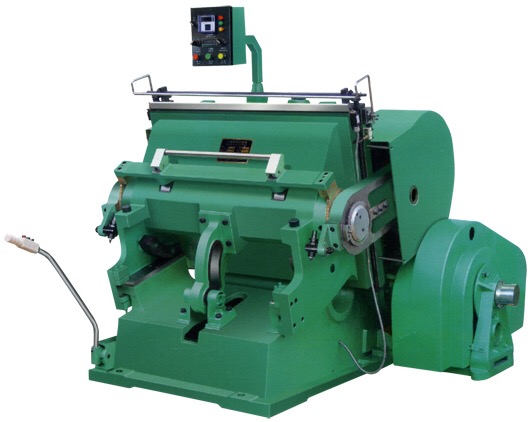

H1:ML-1200 corrugated cardboard manual die cutting and creasing machine
H2:cardboard manual die cutting creasing machine china factory
Product Description
ML series hand feed die cutting and creasing machine is special equipment of die cutting and creasing a wide range of materials, such as paper, cardboard, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries.It has been well accepted by the customers from domestic and oversea market due to its outstanding performance, good quality, easy for operating , good service and low cost in price.
Features
1)The casting material is HT250 gray cast iron and with annealing treatment so as to achieve the casting not easy to deformation, breakage.
2)The principal axis mainly adopt of 4Cr13MoV and with thermal refining treatment to improve the main-shaft’s intensity and rigidity, hardness and adhesive the effort of uneasy deformation.
3)The main parts of gear is made of 4Cr13Mov and with thermal refining treatment.
4)The machine’s guide plate is made of 38crmoral and with nitrogen treatment to increase intensity and make it not easy to wear. It can keep a long time balance of machine’s fluctuation pressure.
5) The single plate electromagnetic clutch is nimble and reliable.
6)It has the function of continuous cutting and opening dwell. Dwell is adjustable.
7)The motion link (arm drag) is mainly made of nodular cast iron. It has the advantage of intensity, toughness and strong compression.
8)The key parts of bearing is mainly made of Harbin bearing.
9)The lubrication of concentrated refuel, manual refuel (optional) can better the oil flow in good condition and its maintenance.
10)Transmission bearing is made of composite bushing (Ensure the lubrication), connecting roads PM bushing to increase the machine’s precision.
11)The machine electrical is made from Schneider electric.
12)Hand on triangle limit switch, emergency switch, hand push rod limit switch. Three insurance device. Ensure safety.
13)Plate and frame can be adjust.
14)die cutting pressure 150t.
The technique parameter
Model | Inner chase size (mm) | Speed (strokes/min) | Max.rule length (m) | Motor power | Overall dimension (mm) | Machine weight (kg) |
ML750 | 750X520 | 25±2 | ≤15 | 2.2kw-6H 380V | 1500x1320x1600 | 2000 |
ML930 | 930x670 | 23±2 | ≤25 | 3kw-6H 380V | 1700x1550x1700 | 3000 |
ML1100 | 1100X800 | 22±2 | ≤30 | 4kw-6H 380V | 2050x2030x1700 | 4200 |
ML1200 | 1200x830 | 22±2 | ≤35 | 5.5kw-6H 380V | 2150x2030x1700 | 4800 |
ML1300 | 1300x920 | 18±2 | ≤40 | 5.5kw-6H 380V | 2400x2100x1950 | 5600 |
ML1400 | 1400x1000 | 18±3 | ≤45 | 7.5kw-4H 380V | 2450x2100x2000 | 6500 |
ML1500 | 1500x1050 | 15±2 | ≤45 | 7.5kw-6H 380V | 2550x2100x2100 | 7500 |
ML1600 | 1600x1250 | 15±3 | ≤50 | 15kw-6H 380V | 2700X2200X2200 | 13500 |
ML1800 | 1800X1280 | 13±2 | ≤60 | 15kw-6H 380V | 2900X2200X2250 | 14200 |
ML2000 | 2000X1400 | 12±2 | ≤65 | 15kw-6H 380V | 3100X2200X2250 | 15500 |
ML2200 | 2200X1400 | 12±2 | ≤70 | 15kw-6H 380V | 3300X2250X2000 | 16000 |
ML2500 | 2500X1400 | 12±2 | ≤80 | 15kw-6H 380V | 2500X2250X2100 | 18000 |
