manual die cutting machine

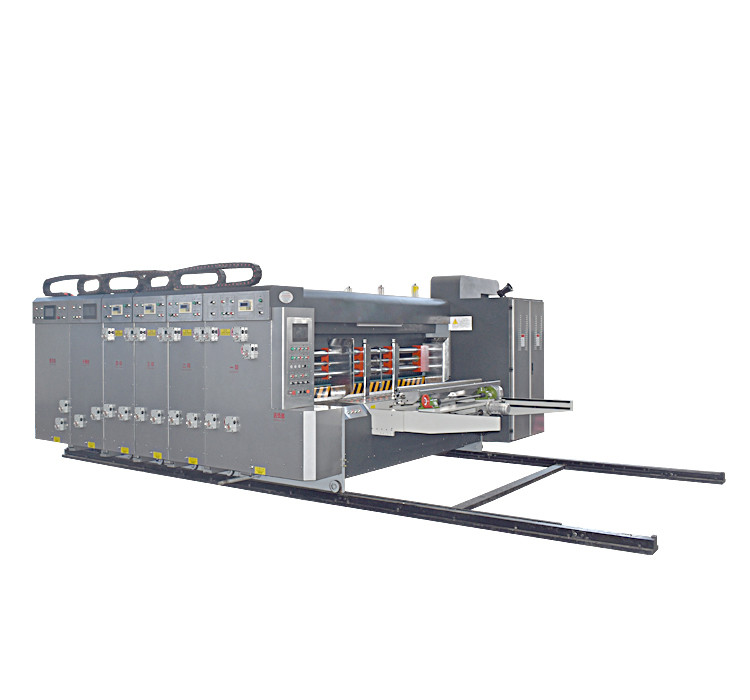

model 2800x1200 automatic flexo 4 colors printing slotting die cutting machine
Function and characteristic
1. l electrical and pneumatic components are international famous brands with stable and reliable quality
2. l all transmission gears are 40Cr.
3. l the transmission parts (shaft and tooth joint) are keyless.
4. l transmission bearings and important transmission components are famous brands in China.
5. l the lubrication system of the whole machine adopts spray type automatic lubrication.
6. l the main fan adopts frequency conversion control.
7. l the cutting part of the circular die and the slotted part of the wheel are optional.
8. l optional: ceramic anilox roller, stacker.
The Machine technique parameter:
1 |
Color group | to be configured according to user’s needs | ||
2 | Printing paper | A,B,C,A/B,B/C and A/B/C type corrugated paperboard(the maximum interval 11mm) | ||
3 | Width of machine inside | 2600mm | 2800mm | 3000mm |
4 | max.paper size | 1200×2400mm | 1400 ×2600mm | 1600×2800mm |
5 | Max.printing size | 1200×2300mm | 1400 ×2500mm | 1600×2600mm |
6 | Skip feeding paper | 1400×2400mm | 1600 ×2600 | 1800×2800 |
8 | Printing plate thickness | 7.2mm | 7.2mm | 7.2mm |
9 | Design speed（piece/min) | 180pcs/min | 150pcs/min | 150pcs/min |
10 | Economic speed(piece/min) | 80-160pcs/min | 80-130pcs/min | 80-100pcs/min |
11 | Tinted precision | ±0.5mm | ±0.5mm | ±0.5mm |
12 | Slotting precision | ±1.5mm | ±1.5mm | ±1.5mm |
13 | Max.slotting depth | 7×300mm | 7×350mm | 7×400mm |
increase the blade, increase the slot depth | ||||
14 | positive knife Min. Slot distance negative knife
| 170×170×170×170mm 280×80×280×80mm | 170×170×170×170mm 280×80×280×80mm | 170×170×170×170mm 260×90×280×80mm |
15 | Max.die-cutting size | 1200×2300mmmm | 1400×2500mm | 1600×2700mm |
16 | Printing plate diameter(contain plate thickness) | ɸ405mm | ɸ480mm | ɸ530mm |
Feeding & printing unit
1. The air suction auxiliary paper feeding fan is 7.5kW, and the air volume can be adjusted according to the different bending degree of the paperboard to ensure smooth paper feeding.
2. The side baffle is adjusted electrically, and the front baffle and rear baffle box are adjusted manually.
3. Seven inch computer touch screen control (display production volume, count alarm, phase adjustment).
4. The brush dust removal device of the paper feeding department can remove a large number of impurities on the printing surface of the paperboard and improve the printing quality.

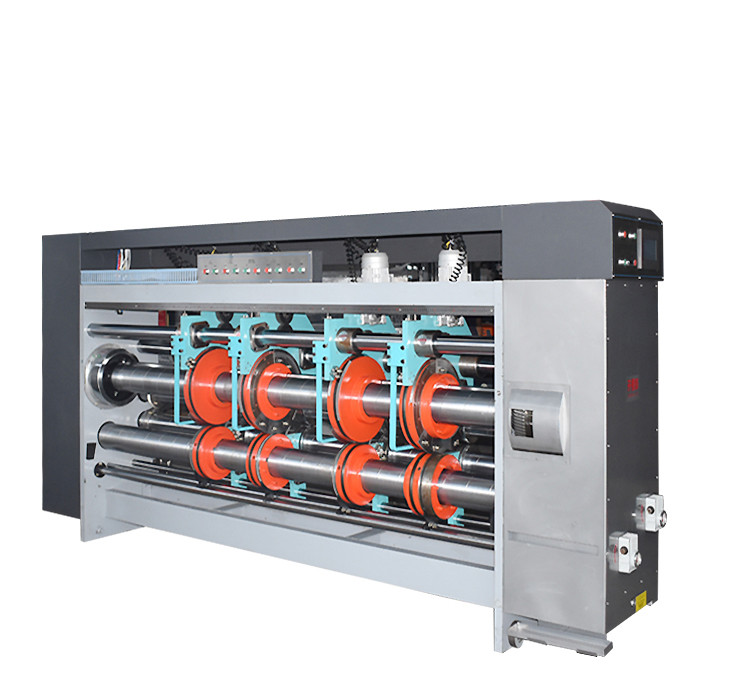

5. Printing department: (1-4 color printing is optional)
6. Printing roller: optional outer diameter: 300mm, 405mm, 480mm, 530mm.
7. The outer diameter of steel anilox roller is ɸ 197.4mm (mesh: 180, 200, 220, 240, 260). (mesh optional) rubber roller: outer diameter ɸ 197.4mm。
8. The anilox roller is attached with a wedge type overrunning clutch, which is convenient and fast in ink leveling and washing.
9. The chequer gap dial is adjusted manually.
10. Phase adjustment mechanism: printing phase electric digital 360 degree adjustment (both operation and stop can be adjusted).
Manually adjust the lateral position and adjust the distance ± 10mm.5）
Slotting unit
1. The wire pressing wheel adopts French Martian Technology, which is hard and soft, straight and non explosive.
2. The width of slotting knife is 7mm. Alloy steel material.
3. The wire pressing wheel and slotting cutter seat are adjusted horizontally by electric adjustment.
4. Slotting phase electric digital 360 degree adjustment (both operation and stop can be adjusted).
5. Synchronous box height adjustment: Electric 360 ° adjustment, convenient and fast operation, and higher accuracy.
6. The punching device can be optional as required.

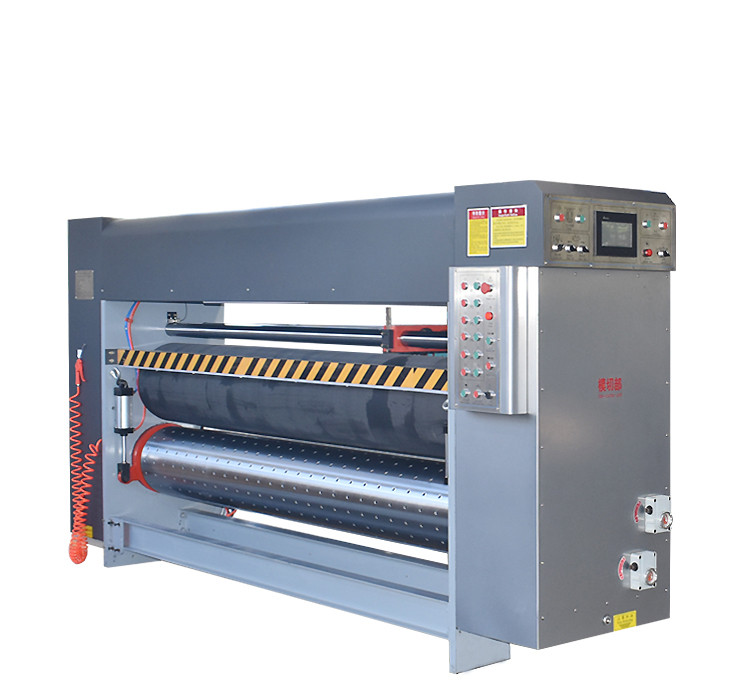

Die cutting unit:
1. Rubber roller: centrifugal casting steel cylinder. The rubber pad adopts German brand.
2. The rubber pad of die-cutting roll adopts German brand.
3. Die cutting roller phase and axial adjustment, PLC touch screen control, electric digital 360 degree adjustment.
4. The rubber pad roller is a cutting and repairing mechanism, and the rubber pad can be reused for many times.
5. The differential compensation device can automatically adjust the number of revolutions of the rubber buffer roll.
6. The mechanical transverse ± 40mm swimming device of rubber cushion roller improves the service life of die-cutting rubber cushion.
