The1year
- Model NO.：
- Z5032
- Certification：
- GS, CE, RoHS, ISO 9001
ntent="" style="background-color:#c5e1b3;padding:0 10px;margin:0;line-height:36px;text-align:left;">Product Description
ntent="" style="background-color:#c5e1b3;padding:0 10px;margin:0;line-height:36px;text-align:left;">Product Parameters
Product main technical Specifications:
| Specifications | Z5032 | Z5040 | Z5045 |
| Max.drillingdia. | 32mm | 40mm | 45mm |
| Spindletaper | M.T.3orR8 | M.T.4 | M.T.4 |
| Spindletravel | 130mm | 130mm | 130mm |
| spindlespeedsteps | 6 | 6 | 6 |
| spindlespeed range 50Hz | 80-1250r.p.m | 80-1250r.p.m | 80-1250r.p.m |
| 60Hz | 95-1500r.p.m | 95-1500r.p.m | 95-1500r.p.m |
| Min.distancefromspindleaxisto column | 283mm | 283mm | 283mm |
| Max.distancefromspindlenoseto worktable | 725mm | 725mm | 725mm |
| Max.distancefromspindlenoseto standtable | 1125mm | 1125mm | 1125mm |
| Max.travelofheadstock | 250mm | 250mm | 250mm |
| Swivelangleofheadstock (horizontal/perpendicular) | 360°/±90° | 360°/±90° | 360°/±90° |
| Max.travelofworktablebracket | 600mm | 600mm | 600mm |
| Worktablesizeofavaliablity | 380×300mm | 380×300mm | 380×300mm |
| Swivelangleoftablehorizontally | 360° | 360° | 360° |
| Tableleaned | ±45° | ±45° | ±45° |
| Sizeofstandworktableofavaliability | 417×416mm | 417×416mm | 417×416mm |
| MotorPower | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| speedofmotor | 1400r.p.m | 1400r.p.m | 1400r.p.m |
| Netweight/Grossweight | 430kg/480kg | 432kg/482kg | 435kg/485kg |
| Packingsize | 1850×750×1000 mm | 1850×750×1000 mm | 1850×750×1000 mm |

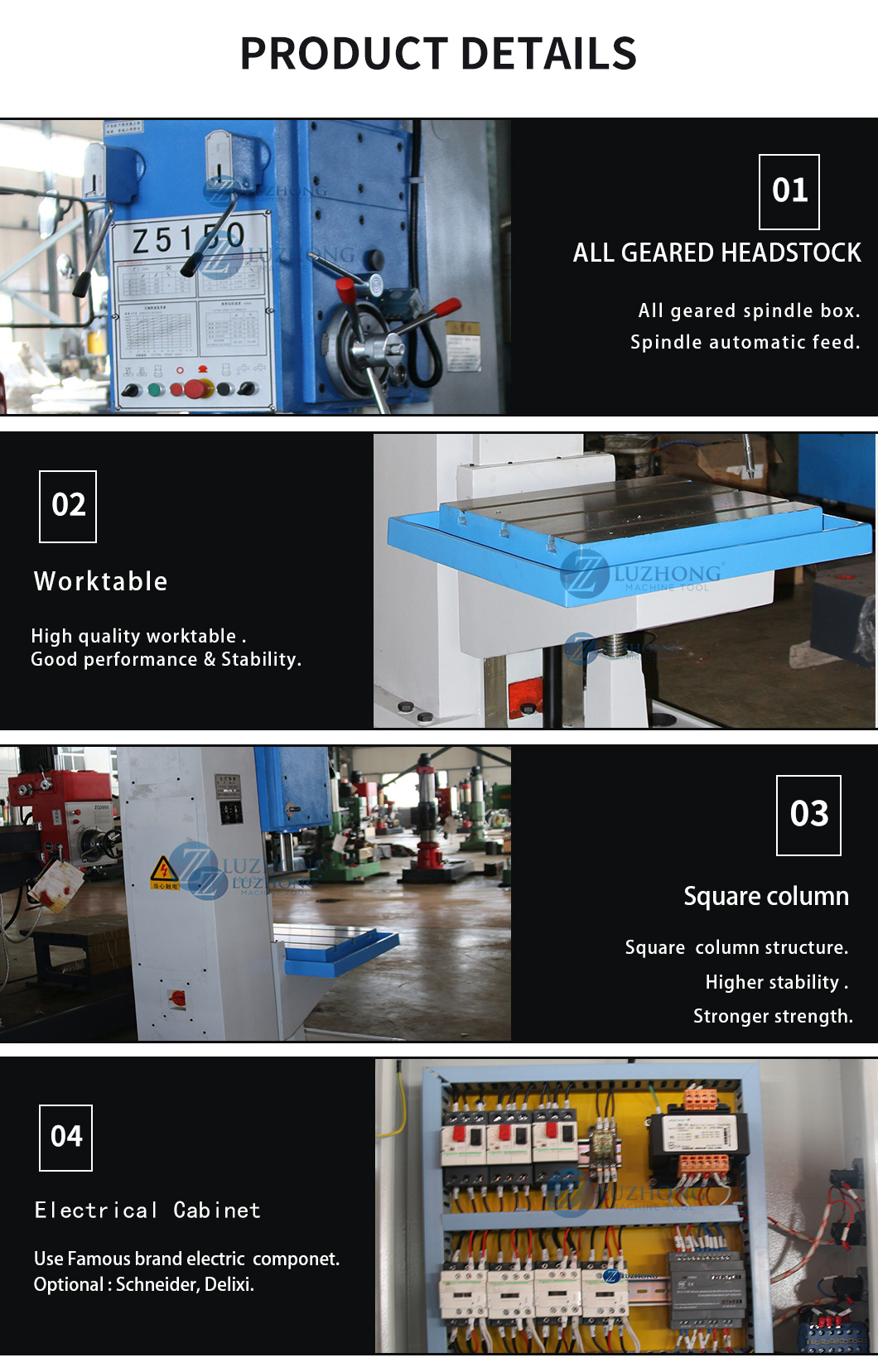

ntent="" style="background-color:#c5e1b3;padding:0 10px;margin:0;line-height:36px;text-align:left;">Detailed Photos
ntent="" style="background-color:#c5e1b3;padding:0 10px;margin:0;line-height:36px;text-align:left;">Company Profile
ntent="" style="background-color:#c5e1b3;padding:0 10px;margin:0;line-height:36px;">FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,wecan choose the best model for you ,or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A:We specialized in all kinds of machines,such asCNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine,RadialDrillingMachine ,SawingMachine,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A:Our factory is located inTengzhou City,Shandong Province,277500 China. You are warmly welcomed to visit us.
4.Whatisyourtradeterms?
A:FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A :T/T ,30% initial payment when order ,70% balance payment before shipment;
Irrevocable LCat sight.
5: What's the MOQ?
A: 1 set .(only some low cost machines will be more than 1 set )
