The1year
- Model NO.：
- MC-400CNC-ML
- Certification：

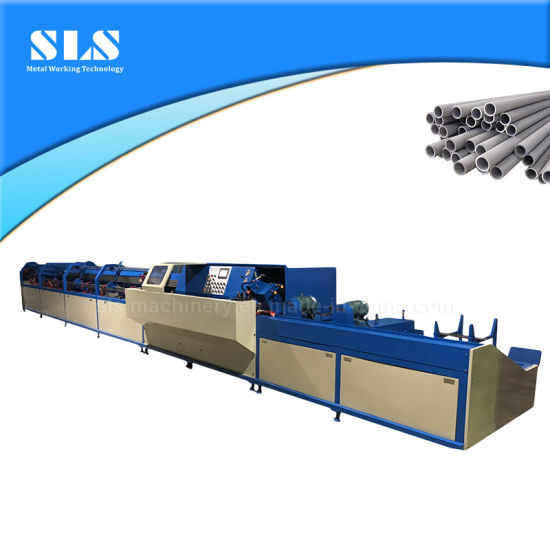

New Type Tube Clip Feed and Cut Off Sawing Automatic Pipe Cutting MachineBriefIntroduction onautomatic pipe cutting machine
SLSnewsingle head full automatic tube cutting machinewith bundle magazine loaderbrings you the latest technology in tube
cutting systems. The machine provides a continuous process of extracting the work piecefrom the magazine loader,fast delivery and
accurate cutting.The working process is from Loading, Dividing, Automatic Tube Feeding and Cutting.
This kind of pipe cut off machine brings time saving as well as higher output and performance.Together with Control System,Touch Screen
and Servomotor Feeding,MC-400CNC-MLtube cutting line offers precision,versatilityand stability, which is the most popular and in
demand when you want high quality equipment for cutting tubes and profiles (round, rectangular, oval, etc.).
Features onautomatic pipe cutting machine
STANDARD
Interactive PLC controlling systemoffers easy access to auto,semi-auto and manual operating modes.
Sturdy frameprovides rigidity and lack of vibration during the cutting offthe workpiece.
Productive circular saw with a level-waystroke.
2 sides and 2 way clamping system: High precision cutting, reduce vibration and soundless while cutting.
Adjustable cutting lengthwhich can be set on touch screen.
Automatic cooling device in the cutting areaprolongs the lifetime of outsourcing parts and ensures the stability of mechanical parts.
Automatic lubrication system for all mechanical movement parts prolong the maintenance time and ensures the stability of machine working.
CE, ISO9001 Certification.
OPTIONAL
Tube Deburring Device
Tube Chamfering Device
Tube Washing Device
Tube End Forming Device
Tube Punching Device
Main Technical Parameters Sheet
| Model | MC-400CNC-ML | _ |
| Max. CuttingCapacity | ¢76×3mm or customized big size | _ |
| Cutting Angle | 90°or Angle Cutting | _ |
| Feeding Length | Max 1500mm or Customized | _ |
| Servo Motor Power | 1Kw | _ |
| Controlling | PLC(Japan Mitsubishi) | _ |
| Feeding Accuracy | +/- 0.1mm | _ |
| Clamp Way | Front Back/Up Down | _ |
| Automation | Full Automatic with Auto Loading and Unloading to realize efficiency working | _ |
FAQ:
| 1.Q:Areyouamanufacturerortradingcompany? | A:Yes,weareamanufacturer.Wearefocusingonmetalpipe/tubeprocessing machines production. |
| 2.Q:Where is the nearest airport to yourcompany? | A: WuxiAirport orShanghai Airport. |
| 3.Q:Howtochoosethepipe/tube cuttingmachines? | A: You have to inform us following details: - Pipe Outdiameter Range - Wall thickness range - The pipe material - Cutting Length - Pipe Original Length - Production Volume - Other requirements |
| 4.Q: DoyouhaveCEcertificate? | A:WehaveCEcertificate. |
| 5. Q:How about your service? | A: Before Sales Serive: 1. We will help our customer confirm the right modelaccording to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machineand ourworkshopbefore you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctlyoperatemachine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go toyourfactory formachine installation, air tickets,food,hotel,localtransportationshoule be at youraccount. 3. Any problems on machine,we will reply you by email/tel or other online contactwithin 24 hours. |
