- Model NO.：
- KS90
- Certification：
1. Description:
Thisline can be adjusted to produce various shapes of pet food for cat, dog, fish, shrimp, bird and so on. It has many production capacities to choose according to your specific requirements. High automatic, easy operation, stable performance, easy maintenance and wide range of materials are the main features of this line. This line adopts bone powder, fish meal, corn powder and so on as raw materials. The final feed is nutritional, multi-shape, attractive, highly digestible which can be loved by your pet and fish.
2. Raw materials: corn flour, fish meal, bone meal, meat meal, soyabean powder, etc
3. Capacity: 100kg-1000kg/h

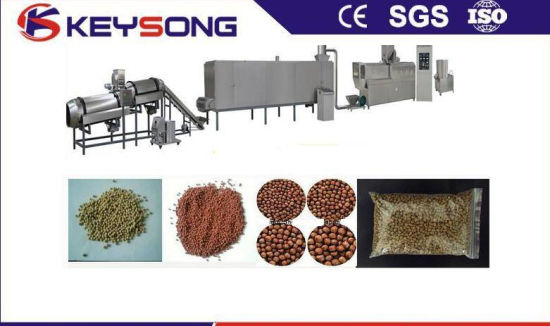

4. Flow chart:
Mixer → Screw conveyor → Extruder → Air conveyor → Dryer → Flavoring line → Cooling machine
5. Technical parameters:
| Model | Installed power | Real power | Capacity | Dimension |
| KS-65 | 70kw | 40kw | 100-150kg/h | 22000x1200x2200mm |
| KS-70 | 90kw | 50kw | 200-240kg/h | 25000x1500x2200mm |
| KS-85 | 120kw | 100kw | 400-500kg/h | 30000x3500x4300mm |
| KS-90 | 135kw | 100kw | 800-1000kg/h | 30000x3500x4300mm |
6. Pet food shapes:
Star shape, Bone shape, heart shape and different shapes and sizes
7. Die of pet food:
different shapes are made by adjusting the dies from extruder 1.0mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm...10.0mm depend on fish food dies size.

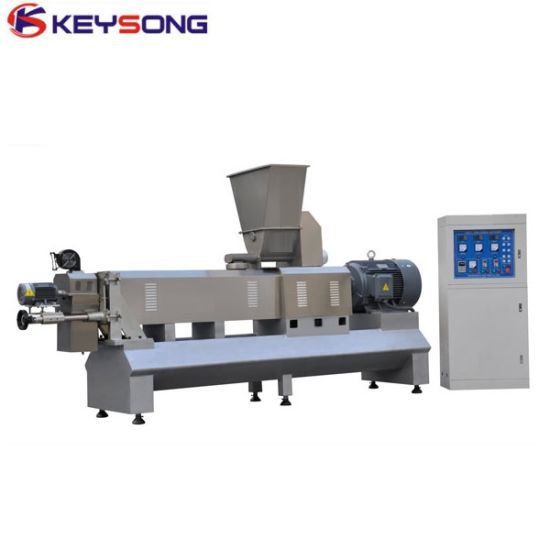

8. Twin/ Double screw extruder:
Theextruder could adopt grainpowder as raw material and produce pet food by high temperature and pressure. The Twin-screw extruder consists offeeding system, extruding system, cutting system, heating system, transmission system and controlling system.
1. The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer.
2. building block structure, and combining willingly according to the different demand.
3. Adoptingforced lubrication system, so that it can guarantee the equipment transmission life longer.
4. Auto-temperature control system could make the temperature controlling more direct viewing and the parameter more precise.
9. Features:
a. different models ks65, KS70, KS 85, KS 90, KS 120 to meet different output capacity requirements.
b. Flexible configurations to meet different budget and workshop layout requirement.
c. Different shapes and appearances of final products can be made by changing different modules in extruder.
d. Independent temperature control system is able to realize zone temperature control, electronic induction, accurate & visual digital display.
e. Feeding system without material returning. It is unnecessary to clean barrel and screw in case of restarting or material replacement.
f. Screw adopts high-performance nitride alloy steel with strong wear-resistance and longer service life.
10. Packing and Shipping
Packed by standard wooden case outside and wrapped by plastic film inside then shipped by container.
11. Competitive Advantages
1. Guaranty: at least One Year.
2. One set of consumable accessories will be provided with the machine.
3. Any question, you can mail/call us at any time. And our mostexperienced engineers are assigned to give consultingservice, and always available for dispatching abroad.
4. All spare parts are always available for delivery.
5. Manual is in English.
6.Minimum order: 1 set
7.prompt Delivery: 15-20 workingdays after receiving deposit
8. Installation: sending one technician to the customer's factory for installation and training.
9.Packaging: firstly packing with plastic inner side, then strengthening with wooden case outside.
12. Company
13. Customers
14. FAQ
1.Q:Areyouatradingcompanyoramanufacturer?
A:Wearethemanufacturer,withalmost10yearsofexperienceinthisindustry.
2.Q:HowcanIgettoyourcompany?
A:Welcome to visit Keysong! YoucangetaflighttoJinanAirport.Ourfactoriesarejustabout30minutesdriveawayfromJinanAirport. And we will pickyouup at the airport.
3.Q:Howlongisyourguarantee?
A:oneyear(Calculatedfromtheequipmentarrivesthecustomer'sside.) Afterthisperiodwewilldefinitelysupportyouwhenneeded.
Youwillbewelcometocontactuswithanyproblemmayhappened.
4.Q:Willyousendengineerstoinstalltheplant?
A:Yes,butatanextracostpayablebythecustomer. Oryoucangetlocalcontractorstodothecommissioningandwesendonesupervisingengineer.
15. Service
Ourengineerwouldgotobuyer'splacetoinstall themachine, when theequipment arrivedatbuyer'splace.
1).Atleast1yearfromthedateofcompletionofthecommissioning.
2).Freeconsultationservicebefore,during,andaftersales;
3).Freeprojectplanninganddesignservices;
4).Freedebuggingofequipmentuntileverythingisfunctional;
5).Freemanagementofequipmentslongdistanceshipping;
6).Freetrainingofequipmentmaintenanceandoperatingpersonally;
7).Freenewproductiontechniquesandformulas;
8).Provide1yearcompletewarranty andlife-timemaintenanceservice;
