The poultry-fodder can feed chicken, rabbit, sheep, pig, horse cattles and so on. The pet-fodder can feed dogs, cats, goldfish etc. The Fishery-feed can feed the fish, shrimps, crab, eel,catfish, batrachia and so on.
1. Brief Introduction ofFloating fish food extrusion animal feed feed extruded machine
Floating fish feed machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. The puffing fish feed pellets can float on the water surface without dissolution for over 12 hours. According to your requirement and production scale, floating fish feed machine can be classified into dry type machine and wet type machine.
2.Working process ofFloating fish food extrusion animal feed feed extruded machine

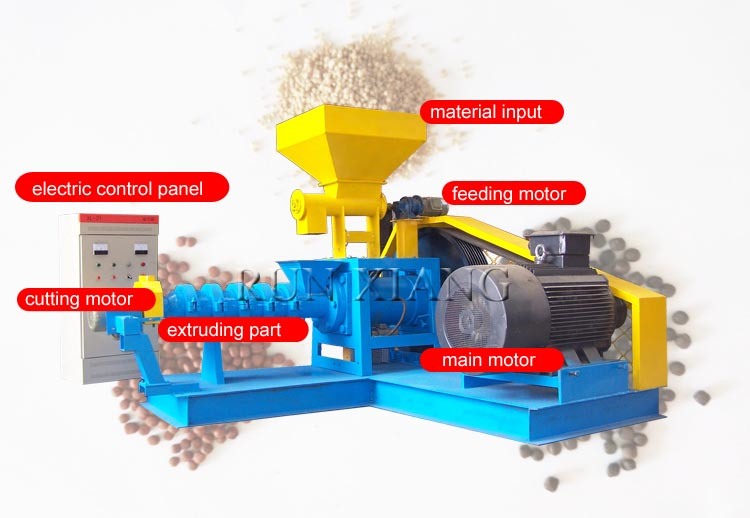

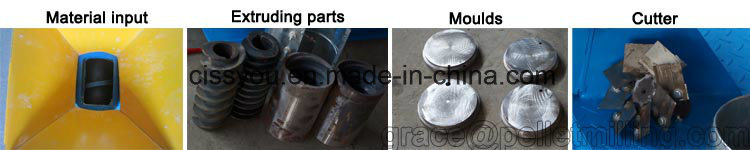

After the material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the pressed material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required.
3.Application and features ofFloating fish food extrusion animal feed feed extruded machine
Some customers use the processing machinery to produce some aquatic livestock fodder, namely, crab fodder, fin less EEL fodder, tortoise fodder, small-sized fish fodder, special fish food for goldfish, red parrot, dragon fishseawater ornamental fish.
1.Variety shapes of high-grade feed pellets for fish, shrimps .etc this machine can be produced ,According to different requirements.
2.The finished pellets can keep floating for 5-10 hours without pollution to water.(based on the materials of the feed)
3.By changing the mold,the Floating fish feed machine can make output of the feed pellet from dia.1.0mm-20mm.
4.The floating time can be controlled by the puffing degree adjustment.
5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
6.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
7.The wet type Floating Fish Feed Machineneeds a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.
4.Raw material of theFloating fish food extrusion animal feed feed extruded machine
You can use different raw material,such as wheat,corn,soghum,etc., to make animal feed pellet by our machine.
The animal feed pellet is more nutrition and more convenient.
When make animal feed pellets,people usually add some vitamin and oil,so that animals like to eat them

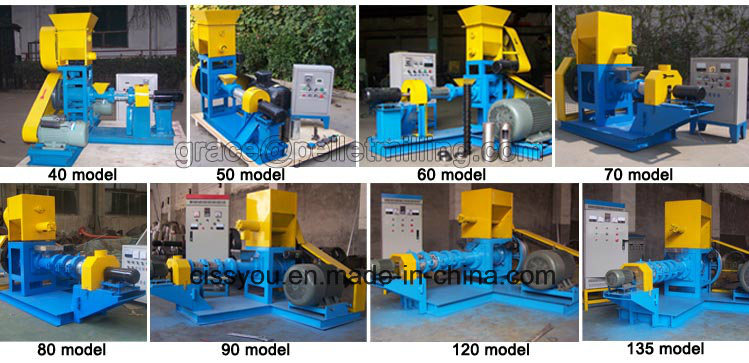

| Model | Capacity(kg/h) | Motor power(kw) | Feed power(kw) | Screw Dia(mm) | Cutting power(kw) |
| WSJY-60 | 120-150 | 15 | 0.4 | 60 | 0.4 |
| WSJY-70 | 180-250 | 18.5 | 0.4 | 70 | 0.4 |
| WSJY-80 | 300-350 | 22 | 0.4 | 80 | 0.6 |
| WSJY-90 | 400-450 | 30 | 1.1 | 90 | 0.6 |
| WSJY-120 | 500-700 | 55 | 1.1 | 120 | 1.5 |
| WSJY-135 | 800-1000 | 75 | 1.1 | 133 | 2.2 |
| WSJY-160 | 1200-1500 | 90 | 1.5 | 155 | 2.2 |
| WSJY-200 | 1800-2000 | 132 | 1.5 | 195 | 3.0 |
