Jinan Sunward Most Popular Animal Aquarium Pet Dog Cat Bird Tilapia Floating Fish Feed Pellet Produc

Model NO.：

TSE65; TSE70; TSE85; TSE95; TSE120

Certification：

Ce; ISO9001;etc

Jinan Sunward most popular Animal Aquarium Pet Dog Cat Bird Tilapia Floating Fish Feed Pellet Production Machine

Brief Introduction:

1.1 Pet food/dog food/animal feed/fish feed/poultry animal feed Introduction

Dog Cat Bird Tilapia Floating Fish Feed Pellet Production Machineis used to produce different kinds of pet food, floating fish feed and sinking feed. kibble food extruderworks with simple operation, accurate parameter control. The products can be finished in the stipulated temperature, pressure, humidity and time. Owing to the reasonable design, special materials, stability, repairs can be guaranteed and ensured. The various shape and taste must meet the different requirements of pet food.

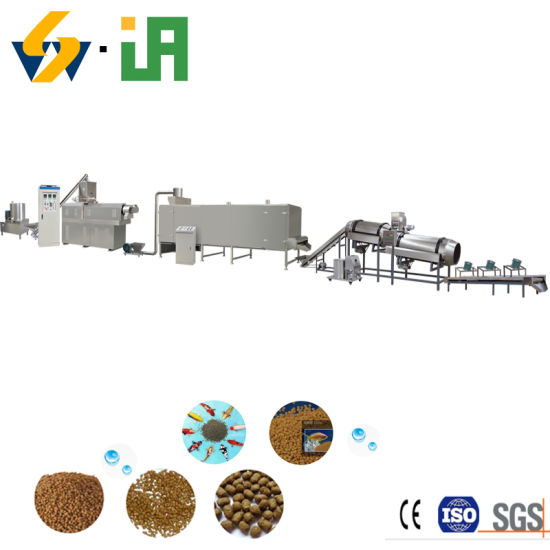

1.2 The different whole line of pet food/dog food/animal feed/fish feed

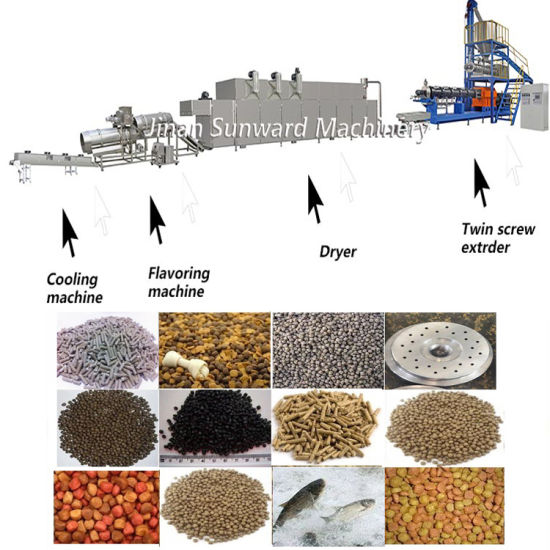

Mixer→Screw conveyor→Twin- screw extruder→Air conveyor→Dryer→Flavoring Line→Cooling machine

1.3 Voltage ofDog Cat Bird Tilapia Floating Fish Feed Pellet Production Machine

Threephases:380V/50Hz,Singlephase:220V/50Hz.
wecanmakeitaccordingtocustomers'Localvoltageaccordingtodifferentcountries.

1.4 Raw materials ofDog Cat Bird Tilapia Floating Fish Feed Pellet Production Machine

Adoptscorn powder/rice powder/wheat flour/meat asrawmaterialsmeanwhilemixingwithwaterandoil.

1.5 Capacity of Dog Cat Bird Tilapia Floating Fish Feed Pellet Production Machine

100-150kg/h;200-260kg/h;400-500kg/h;500-800kg/h;800-1200kg/h;1500-2000kg/h;3000-3500kg/h etc.(Jinan Sunward most popular Animal Aquarium Pet Dog Cat Bird Tilapia Floating Fish Feed Pellet Production Machine)

1.6Samples of pet food/fish feed/animal pellet/poultry animal feed


Technical Parameter:

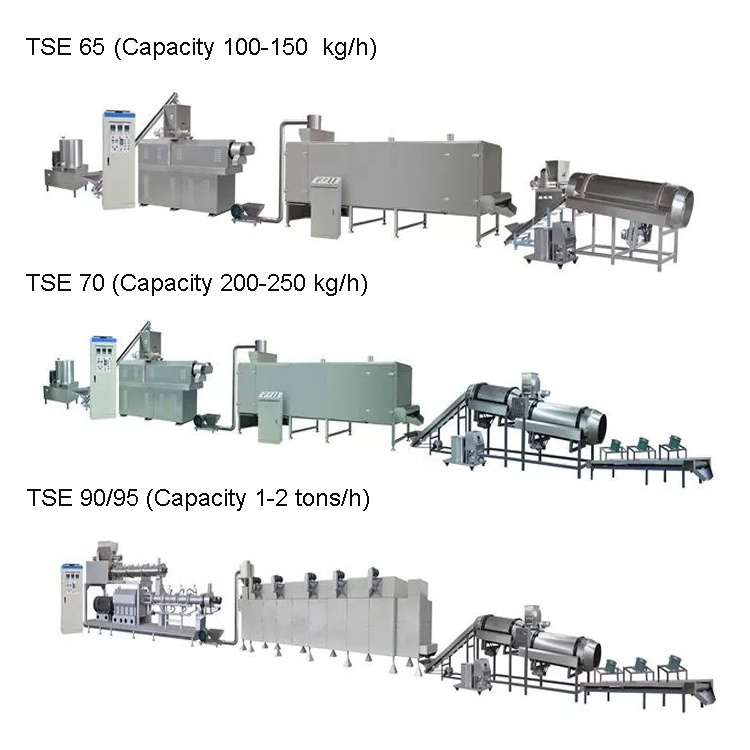

Parameter of minidogfood making machine
Model	TSE-65	TSE-70	TSE-85
Installed capacity(kw)	70	105	205
Real power(kw/h)	50	75	150
Output(kg/h)	100-150	200-260	400-500
Dimension(mm)	17000*1300*2200	20000*1500*2200	30000*1500*2600

Details of machines:

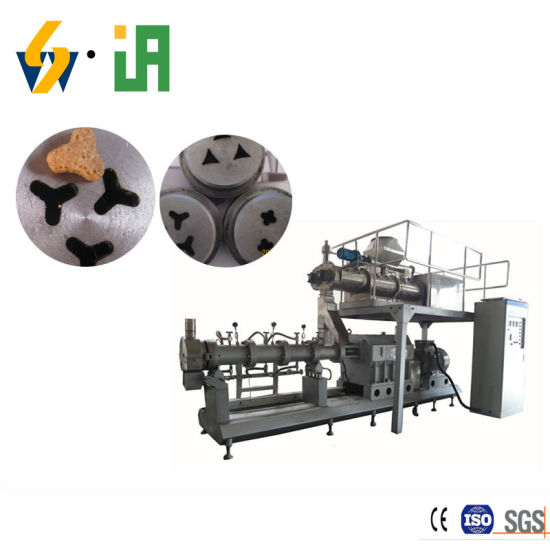

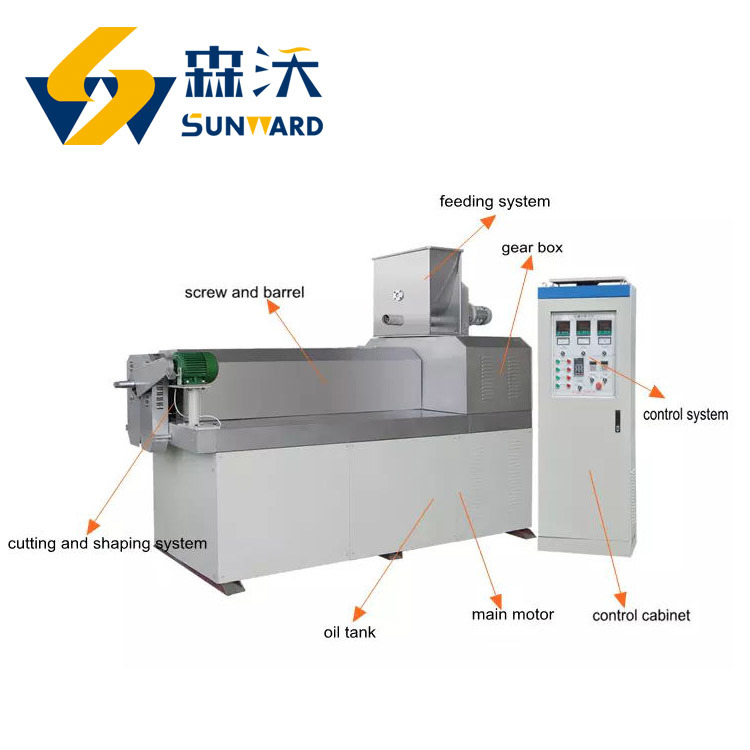

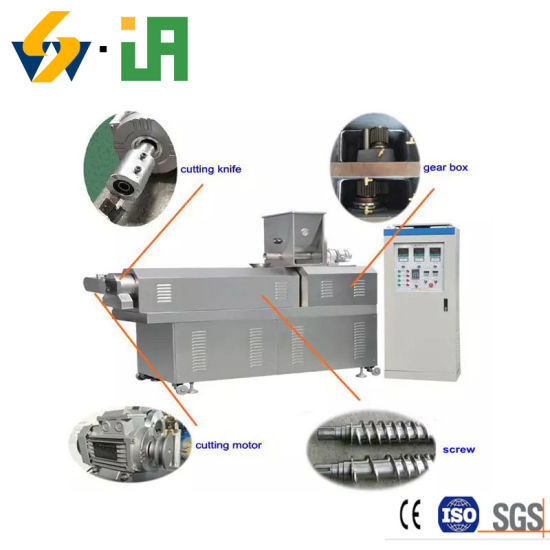

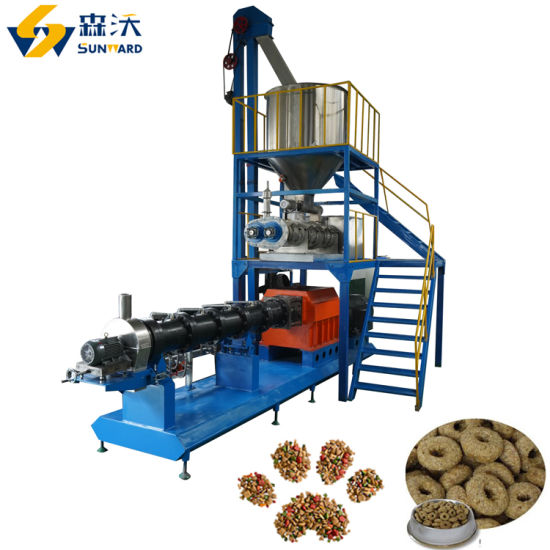

2.1 Twin-screw extruder

1. The main extruder adoptsfrequency speed controllingwith high automation.
2. The screws are made of thestainless steel and special craft, which has the advantage of durable usage, high pressure, and longer life.
3.Theforced lubrication system,which can guarantee the equipment transmission life longer.
4.Auto-temperature control system and self-cleaning,which makes it more convenient.
5. It has the widest range of applications and can produce different products withdifferent equipment and models.

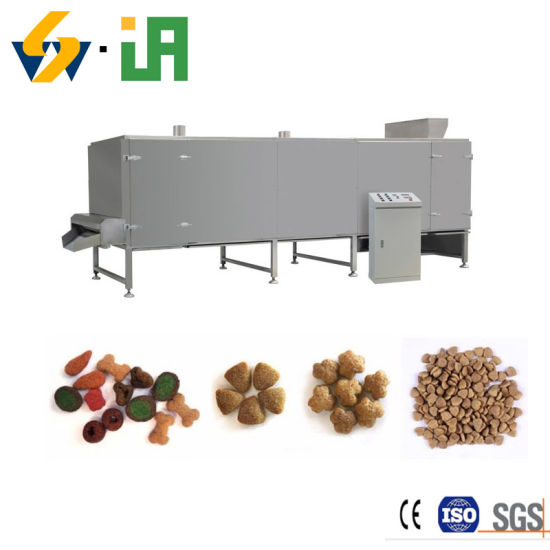

2.2 Multi-layer dryer

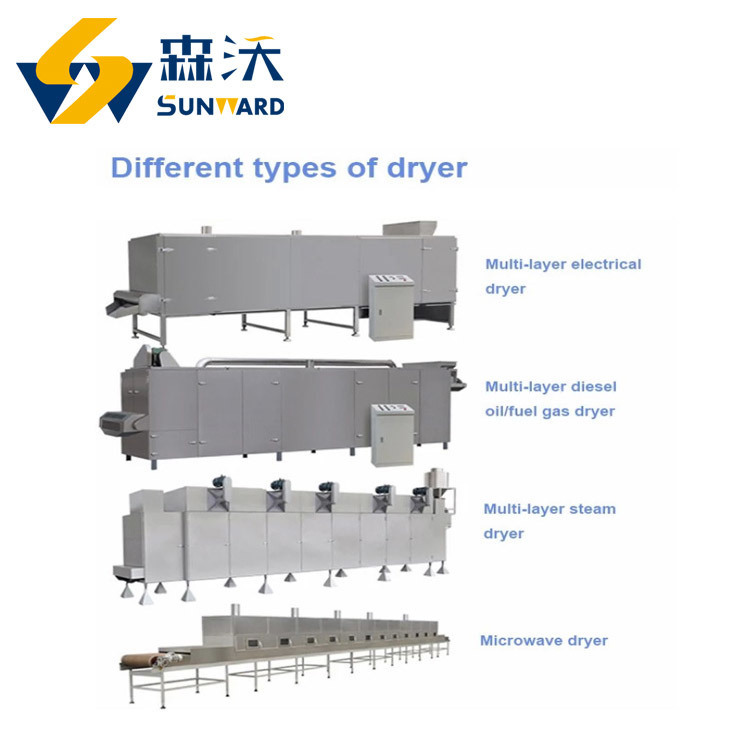

1. We havefour types of dryers,which includes fuel ovens, gas ovens, electric ovens, and high temperature inflated ovens (used to produce corn flakes).
2. The electric oven has three layers of five meters / five layers of five meters / five layers of eight meters / seven layers of eight meters / seven layers of eleven meters, etc.,each layer has electric heating tubes, the purpose is to be more evenly heated.
3. The dryer is compact, has a small dry area and a large superficial area. It also features a small scale of heat elimination and high thermal efficiency.
4. Mesh belt conveyors and thermal insulation boards all usestainless steel material,making the equipment clean and sanitary.
5. The speed of the mesh belt conveyor isadjustable,the drying period for food in the oven can be adjusted.
6. Theautomatic temperature control systemmakes it possible to set the temperature according to your needs.

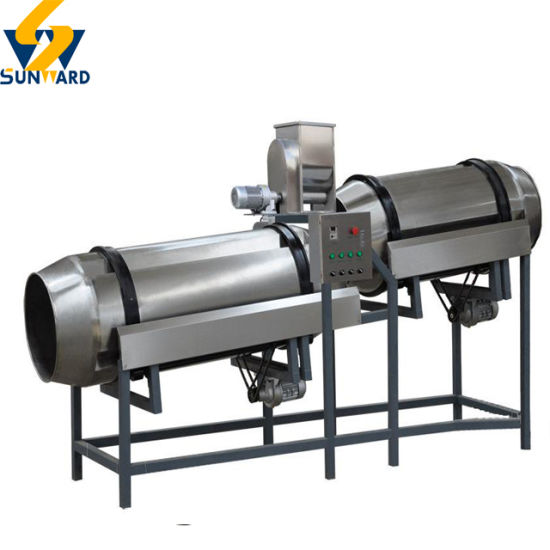

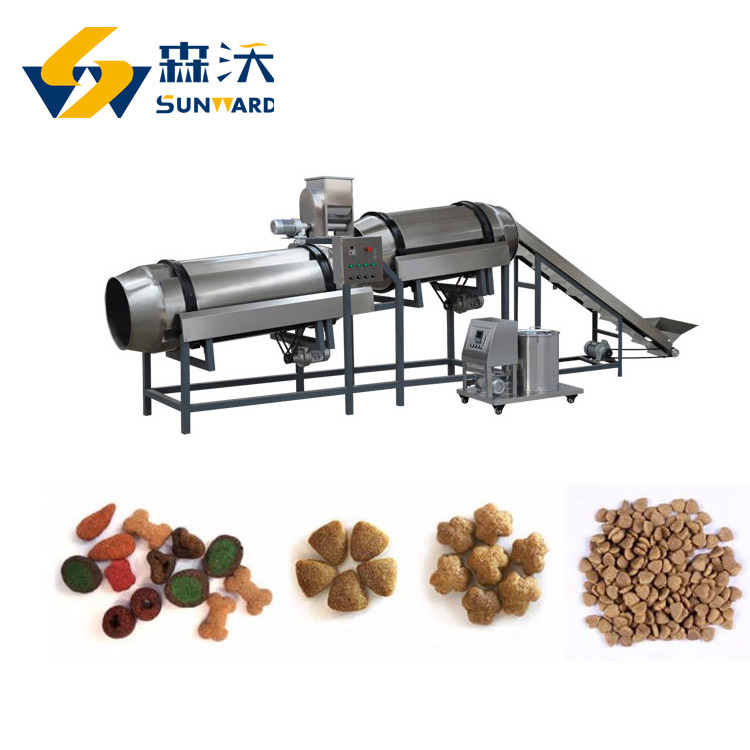

2.3 Double roller flavoring line

1. Spraying the oil in the roller.

2. The inside turning container is very sanitary because of adopting thestainless steel material.

3. Material touching food is stainless steel.

4. The inside of the roller is alsouneven,the main purpose is to moreevenly season.

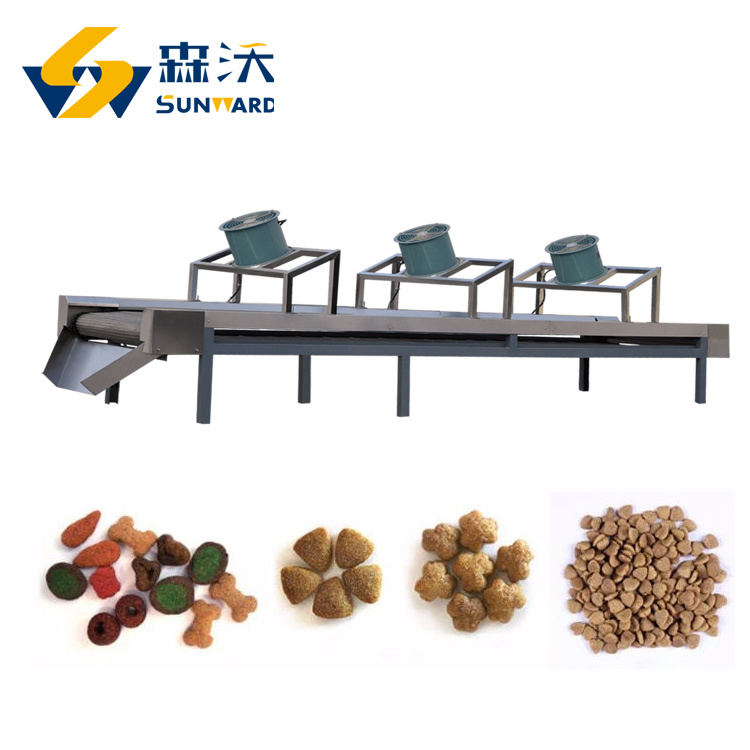

2.4 Cooling machine

1. General length is 5 meters, but we can make it according to our customers' requirement.
2. The above are fans, which used tospeed up the cooling.
3. The goods aretransferred by the beltwhile they are cooled by fans.
4. Material touching the food isstainless steel.
5. Transferring speed can beadjusted.

2.5 Other fittings


Company Information:

Jinan Sunward Machinery Co., Ltd is an industry and trade integrated enterprise. The company is committed to R & D extrusion machinery and related ancillary equipment. It is covering mainly machinery and equipment for corn meal milling system, corn flakes/breakfast cereal system, baby food system, corn puff snacks system, pellets system, artificial rice system, soy nuggets system; as well as pet food/fish food system.

Jinan Sunward Machinery Company is founded in 2008. For supplying the best service, technology department, Sales department, producing department, the after-sales department is always available for you. Sales department includes two international sales department and two domestic sales department. One sale department is located in Wu Jia Pu Industrial Park, Jinan. The other sale department is located in No 130 Wu Ying Shan Middle Road, Jinan.

Our machines have been exported to many countries of Asia, America, Africa, Europe, etc. Machines are welcome in the countries. So until now, there are not only direct customers, but also some long term cooperation agents. Such as Indonesia agent, Iran agent, Nigeria agent and so on.

We have professional technical personnel to help our customers draw CAD and arrange the whole line of machines better in your factory.




Packing and shipping:

1. Testing Machine before package.

2. Packaging: inside is covered in plastic film, outside is a wooden case.

3. Shipping: 15-35 working days after receiving deposit.

FAQ:

1. What's the pre-sale service of your company?
Related machines' technical parameter will be supplied to the customer.
1. According to the customer's factory size, factory layout can be provided inadvance.
2. According to the customer's material cost, general formulation can beprepared well.
3. Special machine can be supplied as customer's request.
4. Professional Advice about Market, machines, processing, materials,packing can be supplied.
5. Suggesting professional ship agent or helping book ship as customerrequest.

2. What's the after-sale service of your company?
1. Allocationchartasthebuyer'srequestwillbesupplied.
2. Operationmanualwillbesuppliedaftershipment.
3. Oneyearwarranty,lifetimemaintenancewithcostprice.
4.Freeeasybrokensparepartswillbesentwithcontainer.
5. Firstinstallationcanbedoneby the engineer.
6. Trainingworkersin the customer'sfactory.

3. If machines wearing parts need changing, what should we do?
We can offer the wearing parts all the time, and offer video.

4. What's the payment terms if we want to buy the machines?
L/C, T/T 30% down payment, 70% balance before delivery.

5. What is the minimum order?
Yes, our company mainly deals with wholesale deals, but if you insist buying one set, or you just need one set, we would be very likely to make the MOQ as 1 set for you though.

6. How long is the warranty time for your products?
Our officially promised warranty time is one whole year after delivery at best.

7. I haven't done business with you guys before, how can I trust your company?
Our company has been in sunward.en.made-in-china.com for 9, almost 10 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years.what's more, we've got quite a lot of authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. If you also have some questions, welcome to visit our factory, we will provide the best service and machines for you. I hope those above will be persuasive enough.

8. Do you give any discount?
I'll surely try my best to help you get those by the best price and good service at the same time.
