The1year
- Model NO.：
- UHT-2
- Certification：
Technical Parameter

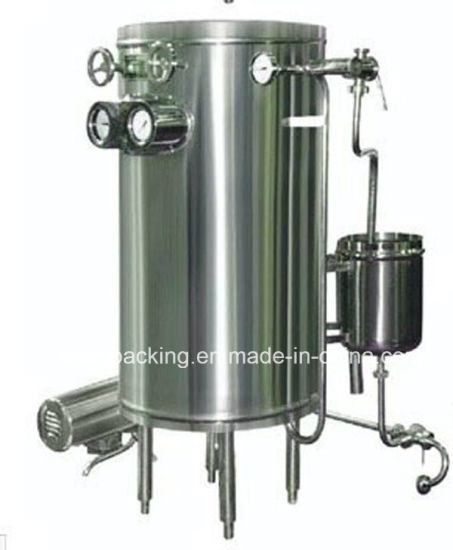

1-The sterilizer is composed of four layer sleeving pipe or multi-pipe. Heat exchanger; Stepless speed change conveying pump, holder, closed water barrel, superheating water generator, frame, controller etc.
2-Includes heating section, sterilizing section and cooling section. Tube group has the features of simple structure and small resistance.
3-The heating-holding section has reasonable structure to guarantee the temperature stability and security of products
4-There is superheating water and cooling water channel during the cleaning which can avoid the scaling.
5-Adopting the method of superheating water heating to improve the heat effect.
6-LCD monitor, automatic PLC system, multi-stage recorder to record important temperature.
7-Italy valves, OMRON electrical components, the PLC monitor can indicate every parameter directly to inspect it in time easily and guarantee the stability of running.
Main Technical Parameter:
| Treatment capacity | 2,000L/hour |
| Sterilizing temperature | 115-135ºC(adjustable) |
| Steam pressure | <0.4Mpa |
| High temperature heating time | 4-6s |
| Inlet material temperature | <30ºC( add cooling tube) |
| Cooling water inlet temperature | <25 ºC |
| Outlet material temperature | < 65ºC |
| Steam consumption | <0.15kg/L material |
| Power | 2.2Kw |
| Weight | 380Kg |
| Cover area | 0.9M2 |
| Heating medium | steam |
| Overall dimension | 1100*1100*1700mm |
