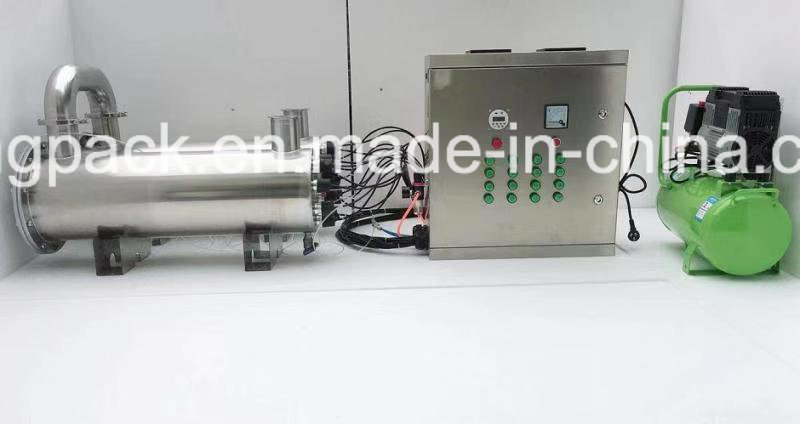

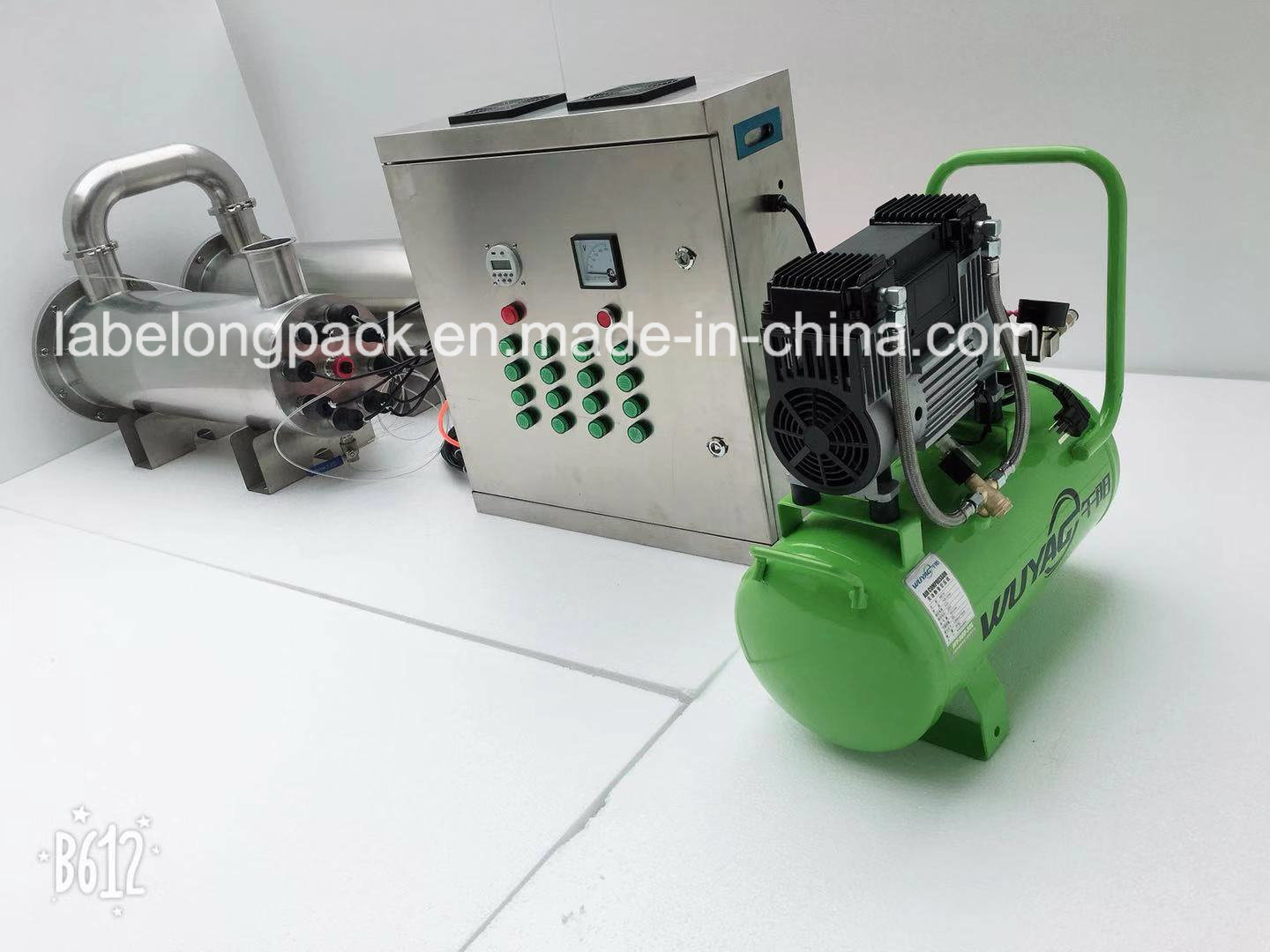

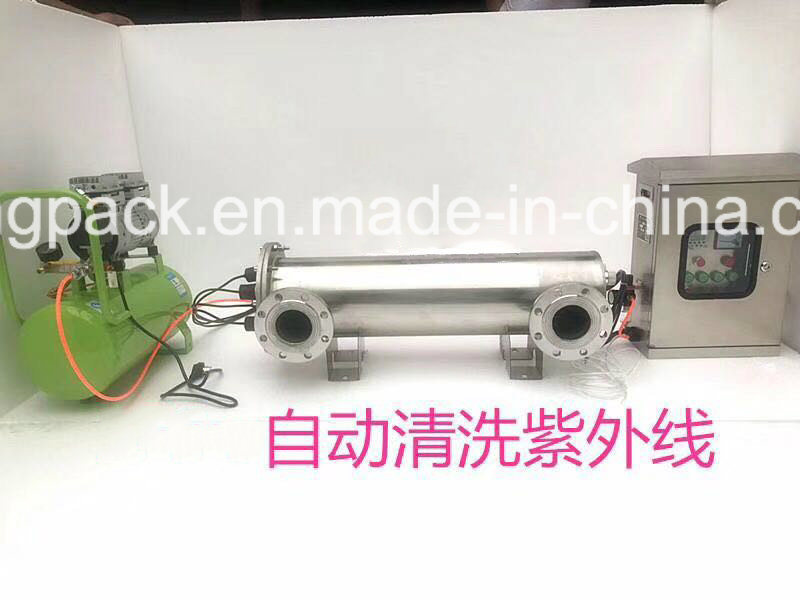

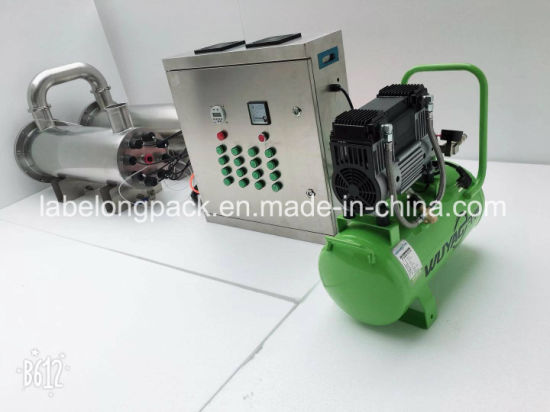

Ozone Generator and UV Sterilizer for Water Treatment System

Model NO.：

UV

Certification：

ISO9001, CE

Feature
Ultraviolet light is akind of electromagnetic radiation, or radiative energy is wavy.

Ultraviolet energy is defined as invisible radiation in the presence of electromagnetic spectrum between visible and Xlight. In the application of ultraviolet sterilization in water treatment, ultraviolet energy is subdivided into 254 and 185 nm wavelengths.

Because of the outstanding advantages of UV ultraviolet disinfection and sterilization in water treatment (safety, economy, quick connection and non-pollution of water quality), it has been recognized as areliable and safe disinfection and purification method all over the world.

All over the world, especially in Europe, America and North America, it is listed as the preferred disinfection and sterilization method in water terminal (Pou) and small-scale water supply system, providing high-quality clean water for many industries.

Application field of ultraviolet sterilizer:
Hotel
Greenb
Hospital
Beer industry
Cooling tower
Electronics industry
Pharmaceutical industry
Chemical
Cosmetics
sewage disposal
Laboratory
Domestic drinking water
Bottled Water
Recirculating water recovery
Microelectronics pure water
Water for food and beverage processing
Semiconductor ultra pure water
Swimming pool &SPA water treatment
Water cultivation
Artificial fountain and landscape water
Humidification system
Fish hatching and aquaculture

Advantages of UV sterilization:
1, UV disinfection technology has ahigh bactericidal efficiency.
The germicidal efficacy of ultraviolet rays bacteria and viruses is usually less than 1-5 seconds. Other chemical methods (chlorine dioxide and ozone) usually take 30 minutes or even longer to achieve the same sterilization effect.
2. High germicidal efficacy
Ultraviolet disinfection is quite extensive. It can kill most pathogenic microorganisms, bacteria, viruses, Escherichia coli and effectively reduce the total number of colonies in water.
3, there is no two pollution.
Because ultraviolet radiation does not use any chemical, it will not pollute the water and the surrounding environment and produce secondary pollution.
4, low running cost, simple maintenance, simple operation and cost saving.
5. the size of the device is small.
Alcohol can be installed in any place with water and power supply, only need to connect the water inlet and outlet and power supply to operate.

Technical data

Model	Flow rate	Power	Dimension	Inlet/outlet
UV 3T	3 T/H	40W*1	950*125*250mm	1''
UV 5T	5 T/H	40W*2	950*138*280mm	1.2''
UV 8T	8 T/H	40W*3	950*170*310mm	1.5''
UV 12T	12 T/H	40W*4	950*195*335mm	2''
UV 15T	15 T/H	40W*5	950*195*335mm	2''
UV 20T	20 T/H	80W*3	950*205*405mm	2.5''
UV 25T	25 T/H	80W*4	950*275*465mm	2.5''
UV 30T	30 T/H	120W*3	1250*275*545mm	3''
UV 40T	40 T/H	120W*4	1250*275*550mm	3''
UV 50T	50 T/H	120W*5	1250*275*550mm	4''

Packing



Suzhou Labelong Packaging not only serve alarge range of quality packaging machinery( filling machine, blowing machine, water treatment) at very competitive prices, we also have an experienced team of Customer Service Engineers who can perform installations, preventative maintenance for your machines.

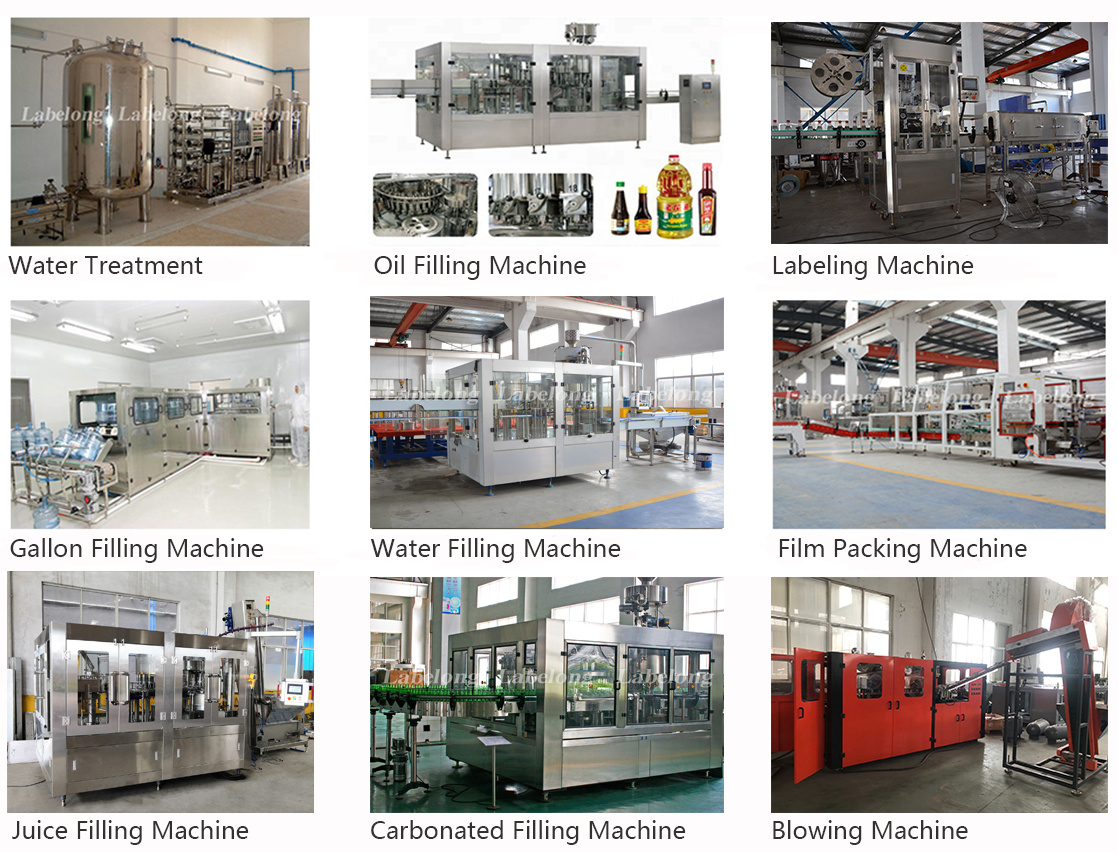

No.	Production line category	Capacity
1	Hot filling production line	3,000-36,000BPH
2	Beverage processing System	1,000 Ltrs/H to 10,000 Ltrs/H
3	Bottled water production line	3,000-36,000BPH
4	5L Large capacity bottled water production line	700-5,000b/h
5	Carbonated drink production line	3,000-18,000b/h
6	Pulp juice production line	5,000-22,000BPH
7	Oil Filling line	3,000-10,000BPH
8	Linear Filling machine	300-900BPH
9	Bottlle Unscrambler	Up to 20,000BPH
10	Barrelled water production line	300-2000 bucket/H
11	Water Treatment system	1,000 Ltrs/H to 10,000 Ltrs/H
12	OPP Labeling machine	6,000-24,000BPH
13	PVC Shrink Sleeve Labeling machine	6,000-24,000bph
14	Automatic Blow molding machine	1,000-7,000BPH
15	Full-automatic Film Wrapper &Shrinker	8-30 packs per minute
