- Model NO.：
- WS-200D
- Certification：
- CE, ISO13485

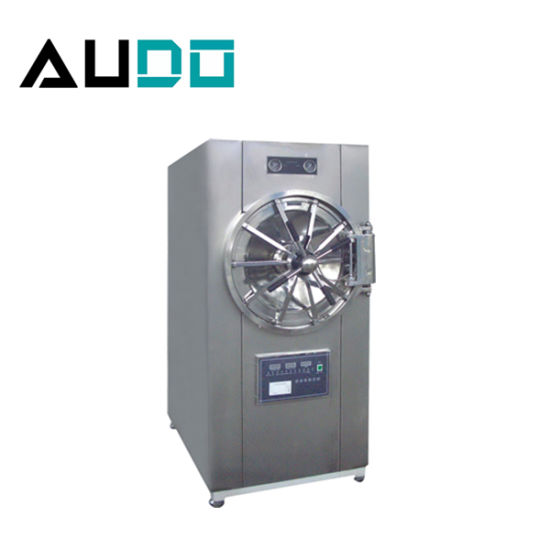

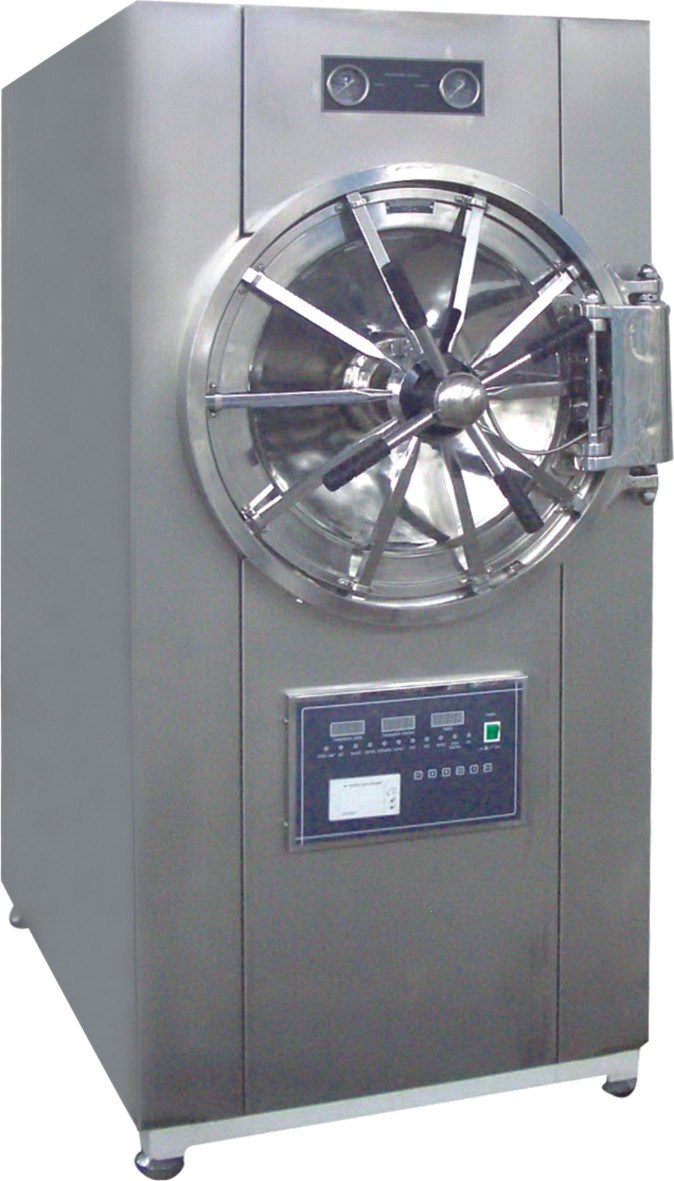

Best Price 200L Horizontal Cylindrical Pressure Steam Sterilizer Autoclave Sterilizer Machine
Usage and Application
This horizontal steam sterilizer apply gravity replacement to remove the cold air of inner chamber,which reduce the steam cold air and make sterilizing reliable. At the same time, during the sterilizing process, the control system of the equipment can automatically adjust the steam inlet and outlet according to the internal temperature. This equipment is used for sterilization of medical and experimental cloth articles, surgical instruments and utensils in hospital supply room, operating room, pharmaceutical factory and R&D institution laboratory.
Characteristics
1.Sterilizing course automatic sterilization controlled by computer, easy to operate.
2.With drying function, suitable dressing drying.
3.With over-temperature, over-pressure auto-protect device.
4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the doesn't closed well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
6.The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7.The chamber of the sterilizer is made of stainless steel.
8.With printer.
Technical Data
| Technical data | WS-150D | WS-200D | WS-280D |
| Sterilizingchamber | 150L | 200L | 280L |
| volume | φ440×1000mm | φ515×1000mm | φ600×1000mm |
| working pressure | 0.22MPa | ||
| working temperature | 134ºC | ||
| Adjustment of temperature | 40ºC-134ºC | ||
| Time of sterilization | 0-99min | ||
| Time of drying | 0-99min | ||
| Heat average | ≤±2ºC | ||
| Power | 9KW/380V50Hz | 9KW/380V50Hz | 12KW/380V50Hz |
| Dimension | 1400×650×1600 | 1400×750×1700 | 1520×910×1900 |
| Transport dimension | 1560×820×1820 | 1560×910×1880 | 1680×1080×2100 |
| G.W/N.W | 430/340KG | 436/350KG | 570/462KG |
Package & Shipping:

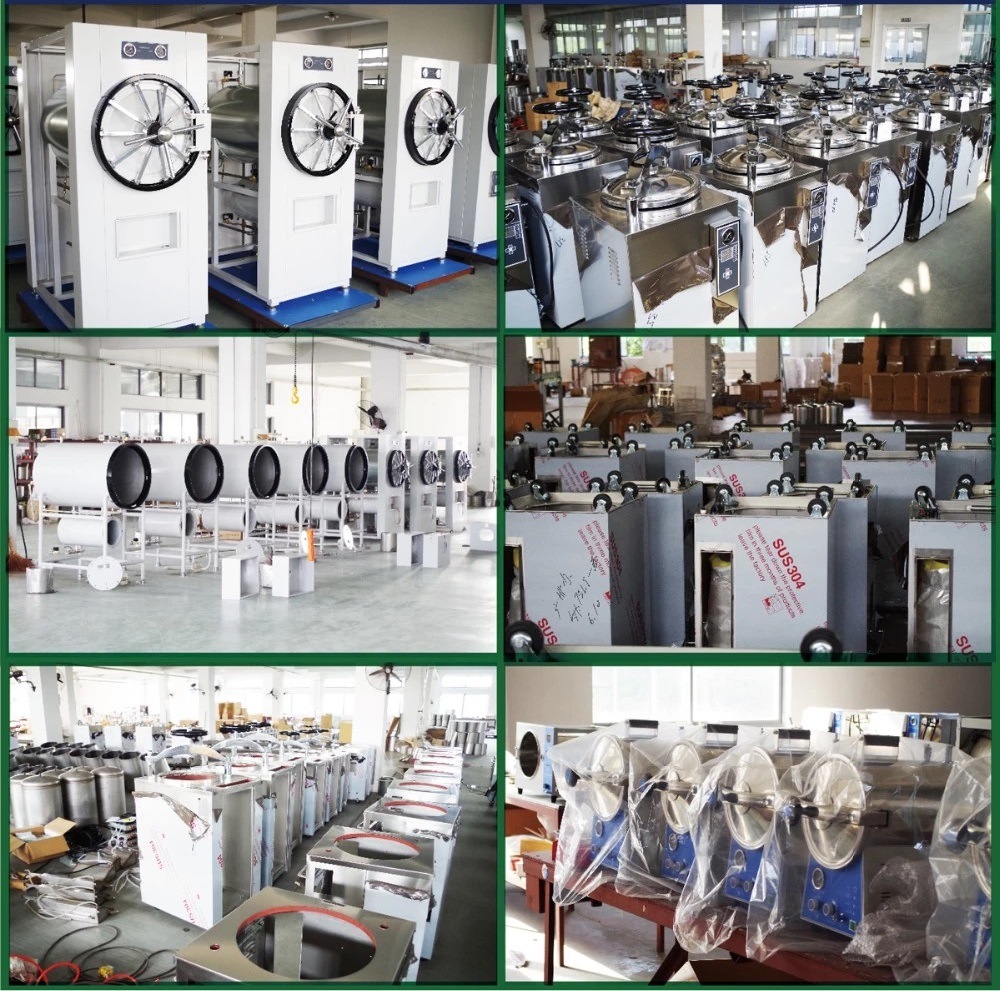

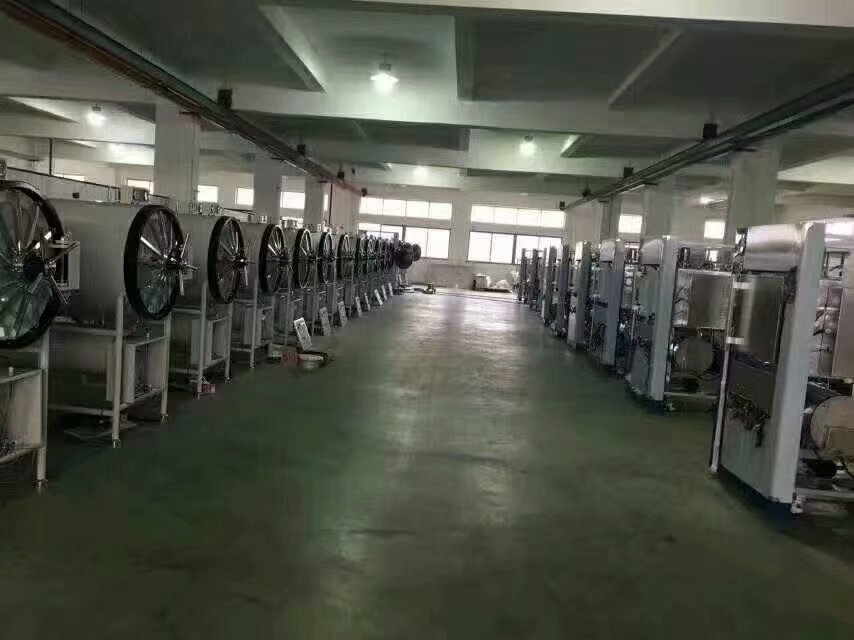

Our Factory:
