- Model NO.：
- KLD-TDS
- Certification：
Tunnel Microwave Green Black Tea Leaf Fixing Drying Sterilization Machine
With the development of science and technology, more and more people know about microwave machines. More and more customers use microwaves machine for drying, sterilization, degreasing, thawing and so on.

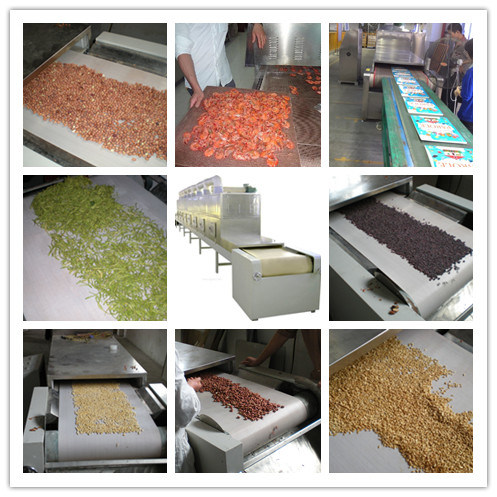

Applications:
1.chemical material,medicine tablet or pill,such as watered pills,water-honey bolus,honeyed bolus,condensed pill and Tibetan pill,etc.
2.all kinds of teas,herbs, flowers, green leaves,etc.
3.various dried meat, like beef, pork, chicken,duck, fish etc.
4.powder for various material,such as spices, other food additives.
5.agricultural products,such as china date,nuts,grains,peanut,etc
6.snack food, fruit seeds, grains, peanuts, chips,etc.
Technical equipment
Equipment Model | KLD-Microwave Drying Equipment | KLD-Microwave Drying Equipment |
Operating frequency | 2450±50MHZ | 2450±50MHZ |
Rated inputapparent power | ≤60KW | ≥120KW |
Microwave output | ≥50KW | ≤110KW |
Temperature | 30-100ºC(controlled) | 25-80ºC(controlled) |
Type of cooling | Water-Cooling/Air cooling | Water-Cooling/Air cooling |
Inlet and outlet height | 40-100mm | 40-100mm |
Height of conveyor | 600-1000mm | 600-1000mm |
Tranmission speed | 0~10m/min(adjustable frequency) | 0~10m/min(adjustable frequency) |
Dehydration Rated | 40-50KG/hour | 40-50KG/hour |
Contour dimension | 12500mm*1600mm*2200m (customized) | 12500mm*1600mm*2200m (customized) |
Width of conveyer belt | 750±100mm(customized) | 1000±100mm(customized) |
Microwave leakage standard | ISO≤5mw/cm² | ISO≤5mw/cm² |

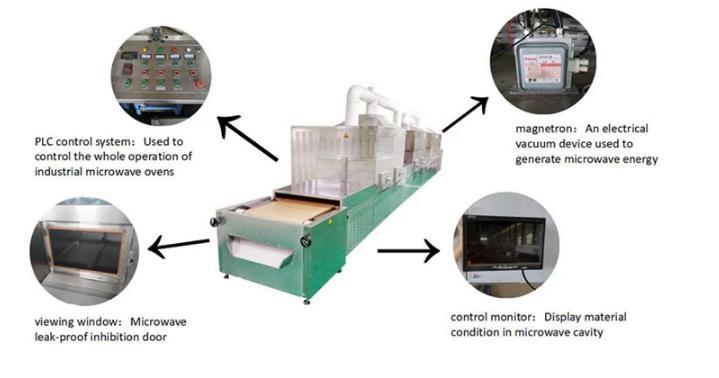

Detailed Images

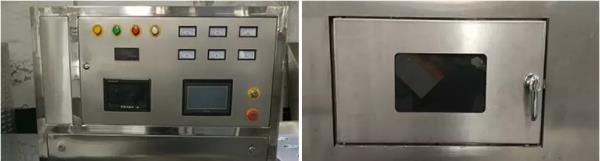

Control box
Make operation easier by using the PLC system and real time monitoring system.
Observation window
The observation window design makes it easier to observe internal situation.

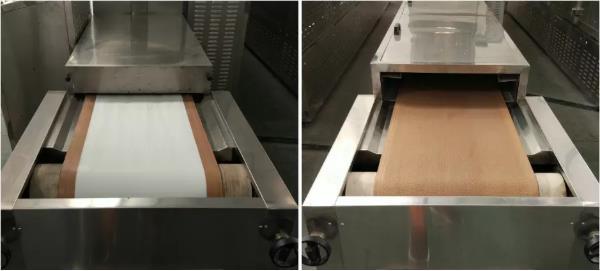

The conveyor belt and opening can be adjusted according to your needs.

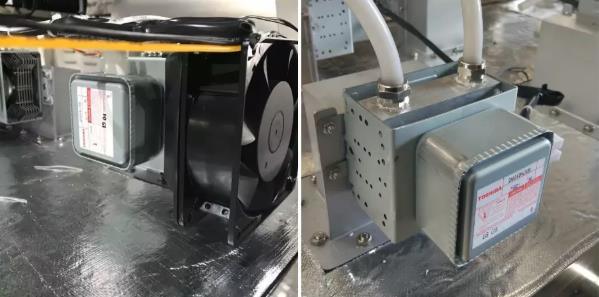

Air cooled magnetron Water cooled magnetron
Packaging & Shipping
1).Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film. Finally pack them with wooden case.
2)Customer's requirement is available.
3).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code, house number, street, city, country); by ship-please tell me your delivery port.
Company InformationJinan Kelid Machinery Co., Ltd.Is a professional supplier of microwave oven.Our company's motto is:"technology makes easy".We offer to cooperate with our customers for mutual and beneficial development.
FAQ
1.What'sthematerils?
Answer:Stainlesssteel
2.Howlongisyourguranteetime?
Answer:Oneyearaftercomissioning.
3.Howistheinstallation?
Answer:Whenthemachinearrivesattheyourworkshop,wesend2engineerstoinstallthe machineandteachtheworkershowtouse.TherebeaoperatemannualandEquipment
maintenance manual.
4.Howisthepayment?
Answer:40%TTasdownpayment,60%TTorL/Cbeforeshippment.Beforeshippment,welcome to inspectthemachine.
