Complete Autoamatic Inverted Bottle Sterilization Machine for Filling Line

Model NO.：

JR sterilizer

Certification：

ISO

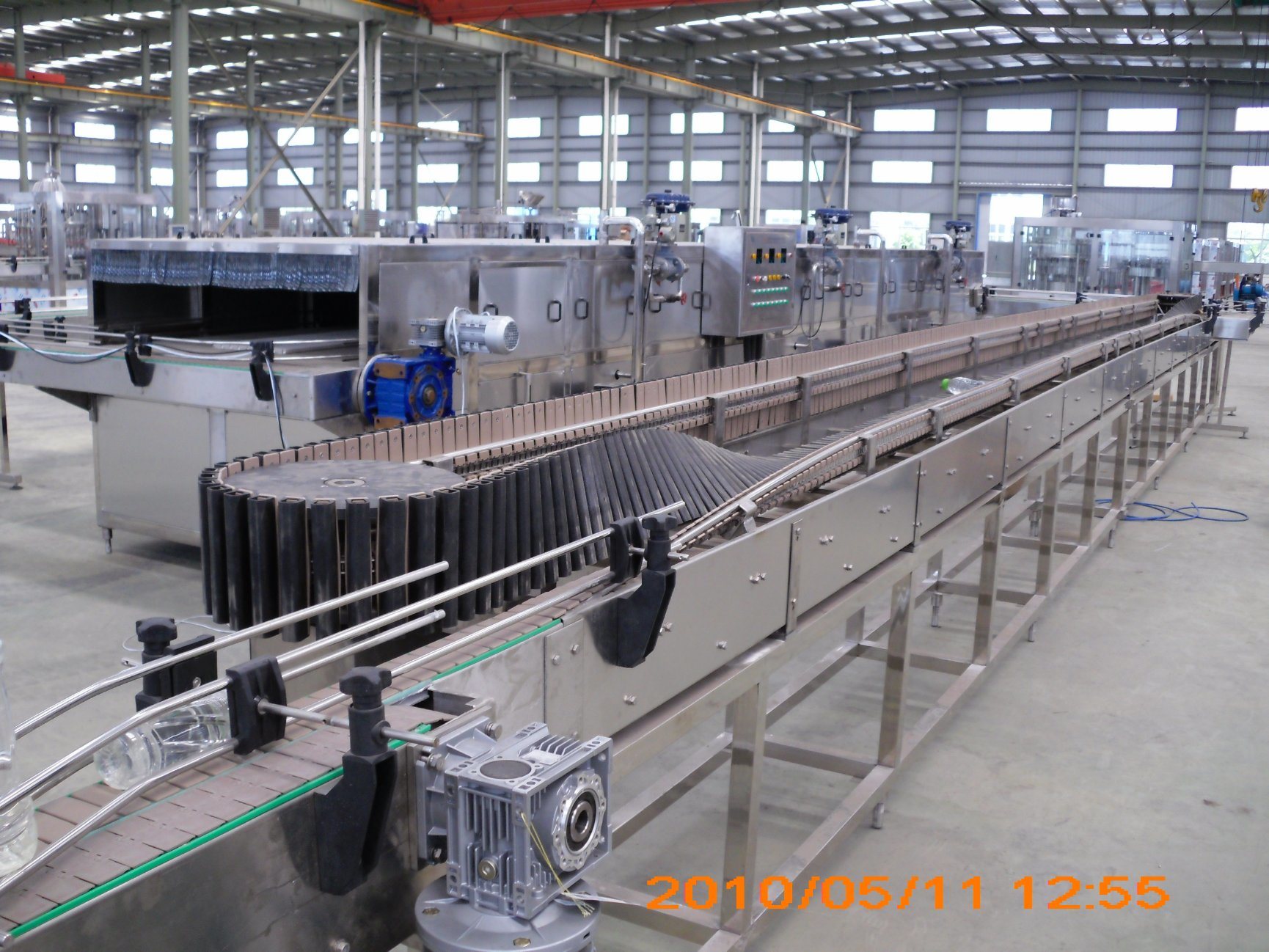

This machine is mainly used to sterilize the interspaces which can not be
reached by high temperature materials in the mouths or capsules of bottles after the beverage like tea or juice has been hot filled and closed over. After the product being filled and closed over, the bottle shall be inverted 90°automatically and put flatware by the machine, and the inner of the bottle shall be sterilized through the high temperature of the materials and then bottle shall be put vertically and enter into the spray cooler. The machine runs steadily and reliably and does no harm to the bottles body while the transmission speed can be adjusted steplessly because the transmission chains are imported to install in the machine.
Production Capacity: 5000~6000B/H at volume of 400ml
Motor Power: Main Motor Power(kw):0.75
Sterilizing time: 30-40s

Serial No.	Code name	Name of parts	Model-specification	Brand
1	CPM1A	Programmed controller	CPM1A---30CDR-A	OMRON
2	QF	Low-pressure breaker	3VU1340---, 1MN00	Siemens
3	FU	Fuse	RT18---32-2A	Japan
4	KM1-5	AC electromagnetic contractor	3TB40 10-0X-AC220V	Siemens
