Food Sterilization Horizontal Pulse Vacuum Oven Steam Sterilizer

Model NO.：

WS-YV

Certification：

CE, ISO13485

Product Description

This sterilizer uses pressure-saturated steam to sterilize items, eliminates the influence of cold air on temperature by means of pulsating vacuum exhaust, and finally dries items with vacuum combined with jacket drying. It uses the physical properties of pressure saturated steam to release a large amount of latent heat when condensing, so that the items to be sterilized are in a state of high temperature and humidity. the goal of. It is mainly used in hospitals, chemical industry, food, scientific research, pharmaceutical and other units for disinfection and sterilization of surgical instruments, dressings, medicines, culture medium, food, etc.
The sterilization program is automatically controlled by a computer, without supervision, and it is easy to use.
Equipped with over-temperature, over-pressure automatic protection device.
With three or more pulsating vacuums, it is suitable for all kinds of packaged, unpackaged, hollow and porous instruments with internal pipelines.
Safety interlocking device: When the door is not tightly closed, the steam cannot enter the inner body and alarm prompts. When the pressure in the sterilization chamber is greater than 0.027MPa, the door is interlocked and cannot be opened.
The sterilizer comes with a steam generator, which is randomly adapted to a set of movable sterilization trays.
Overpressure protection: When the pressure exceeds the working pressure, the safety valve automatically releases the pressure protection.
The inner cavity of the sterilizer is a circular double-layer design, which is composed of a sterilization chamber and a jacket, and has a deep drying function.
Low water level protection device: the water cannot be started before the high water level, and the low water level is short of water
Automatic power off protection.
With printing function, the printer can record the whole process of sterilization work.
Overcurrent protection: The power circuit breaker will automatically cut off the power supply when the current is overloaded.
With Bowie&Dick test function, it is used for steam penetration test.
Sealed door: manual opening and closing door, using the radio rod turntable type, equipped with secondary self-locking, interlocking
Automatic fault detection, convenient for self-maintenance. Lock safety device, single door (optional double door), with pressure safety interlock.
The sterilization chamber is made of high-quality stainless steel.

Model	WS-100YV	WS-150YV	WS-200YV	WS-300YV
volume	100L	150L	200L	300L
Working pressure	0.22MPa
Working temperature	134ºC
Heat average	≤±2ºC
Timer range	0~99min
power	10kw/AC380V.50HZ			13KW/AC380V.50HZ
Overall dimension(mm)	1400*660*1640	1400*660*1640	1400*750*1740	1520*850*1850
Transport dimension(mm)	1560*820*1820	1560*820*1820	1560*910*1880	1680*1080*2100
G.W/N.W(KG)	430/340	440/350	460/370	580*470

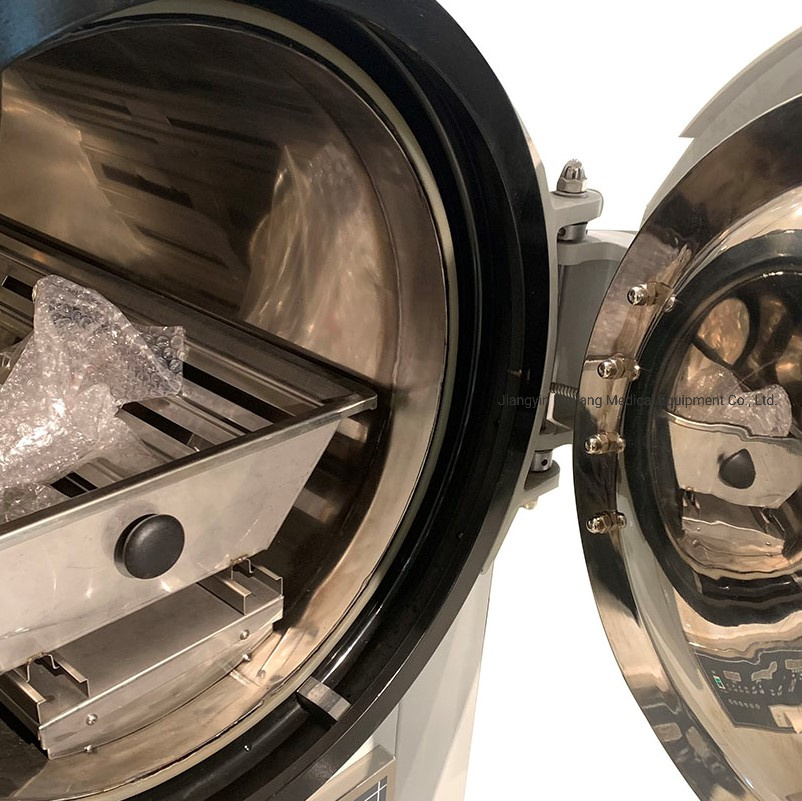

Detailed Photos

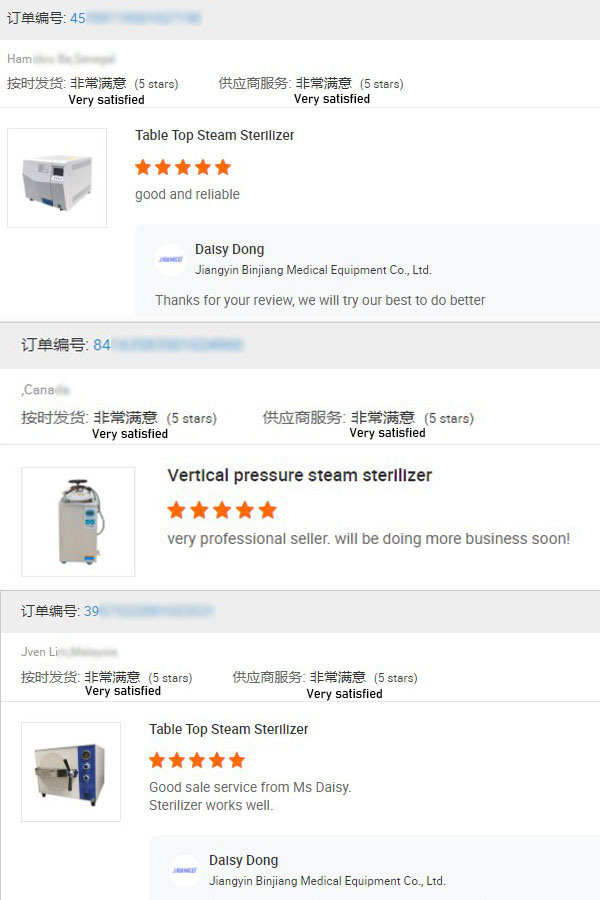

Customer praise

Company Profile

Packaging & Shipping

FAQ

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
4. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
5. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
6. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
7. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
